Strut profile Parts
Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Area moment of inertia in x-direction [lx] [cm⁴] | Area moment of inertia in y-direction [ly] [cm⁴] | Profile surface [A] [cm²] | Weight [kg] |
|---|---|---|---|---|---|

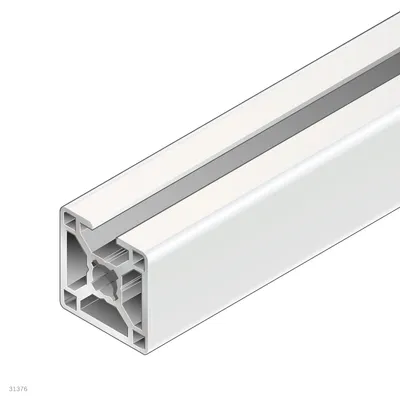

| 3842557208 | 30x30 1N | 3.1 | 3.5 | 3.7 | 123.5 |
| 3842993704 | 30x30 1N | 3.1 | 3.5 | 3.7 | 0 |
| 3842992397 | 30x30 1N | 3.1 | 3.5 | 3.7 | 0 |
| 3842993703 | 30x30 | 2.8 | 2.8 | 3.1 | 0 |

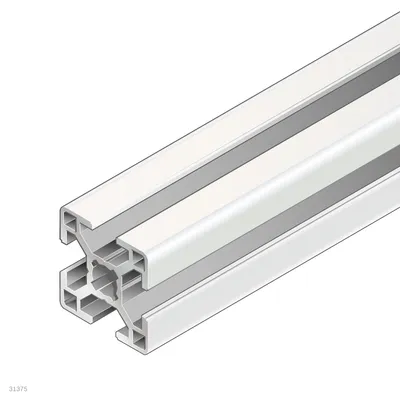

| 3842990720 | 30x30 | 2.8 | 2.8 | 3.1 | 0 |

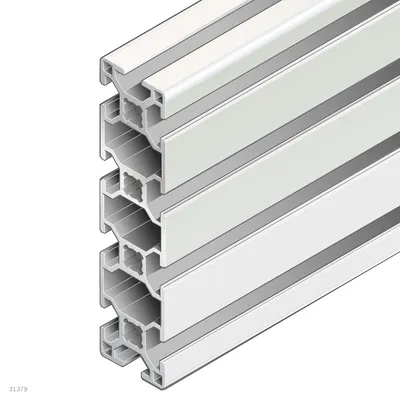

| 3842541939 | 30x120 | 136.3 | 9.6 | 9.9 | 330.7 |
| 3842993763 | 30x120 | 136.3 | 9.6 | 9.9 | 0 |
| 3842537812 | 22,5x45 | 7.1 | 2.9 | 4.7 | 185 |
| 3842990090 | 22,5x45 | 7.1 | 2.9 | 4.7 | 0 |
| 3842990087 | 22,5x45 | 7.1 | 2.9 | 4.7 | 0 |
| 3842990091 | 22,5x45 | 7.1 | 2.9 | 4.7 | 0 |

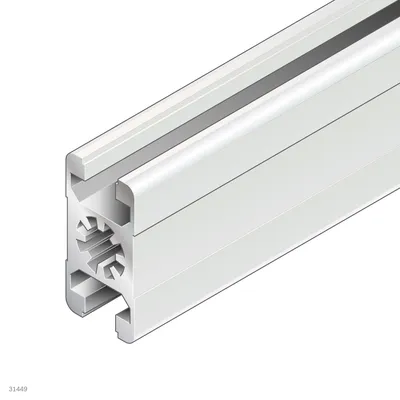

| 3842993700 | 22,5x45 | 7.1 | 2.9 | 4.7 | 0 |
| 3842990292 | 22,5x45 | 7.1 | 2.9 | 4.7 | 0 |
| 3842523239 | 20x60 | 14.2 | 1.7 | 3.5 | 2.75 |

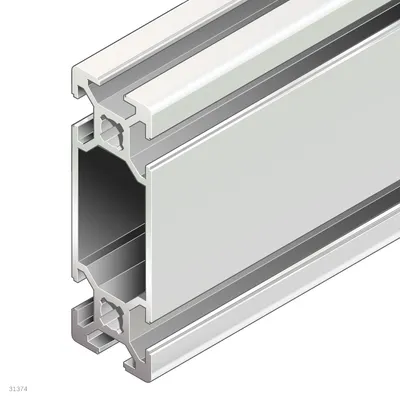

| 3842537819 | 20x60 | 14.2 | 1.7 | 3.5 | 46.57 |
| 3842993698 | 20x60 | 14.2 | 1.7 | 3.5 | 0 |
| 3842992992 | 20x60 | 14.2 | 1.7 | 3.5 | 0 |

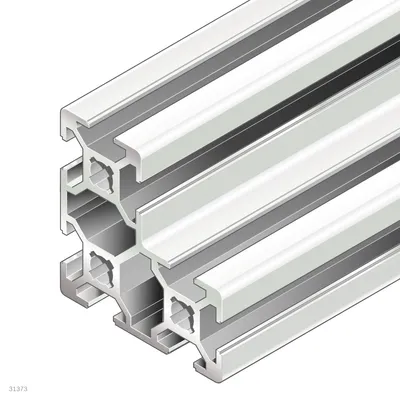

| 3842523241 | 20x40x40 | 6 | 6 | 4.2 | 3.41 |
| 3842537818 | 20x40x40 | 6 | 6 | 4.2 | 54.56 |
| 3842993697 | 20x40x40 | 6 | 6 | 4.2 | 0 |
| 3842992991 | 20x40x40 | 6 | 6 | 4.2 | 0 |
| 3842517178 | 20x40 | 4.6 | 1.2 | 2.9 | 2.42 |
| 3842993501 | 20x40 | 4.6 | 1.2 | 2.9 | 0 |

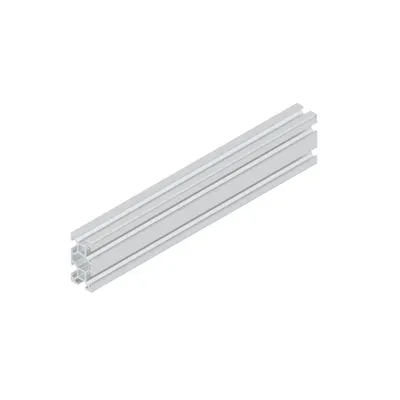

| 3842993498 | 20x40 | 4.6 | 1.2 | 2.9 | 0 |
Common to all listed parts
| Color | Natural |
| Material | Aluminum, anodized |
