Bosch Rexroth 3842993698
STRUT PROFILE 20X60 Q&E
- MPN
- 3842993698
- Category
- Strut profile
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842993698?

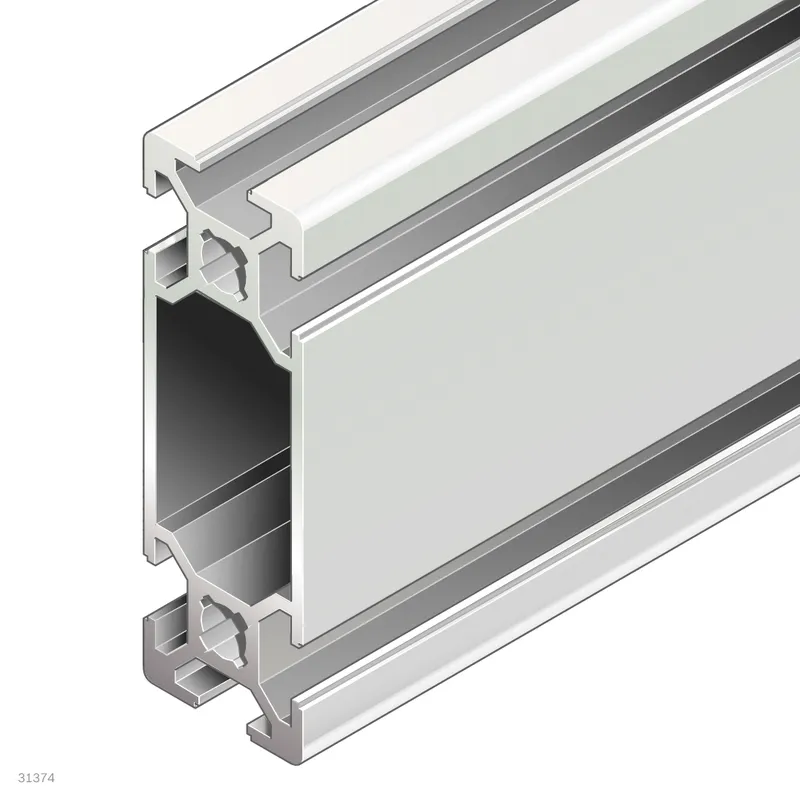

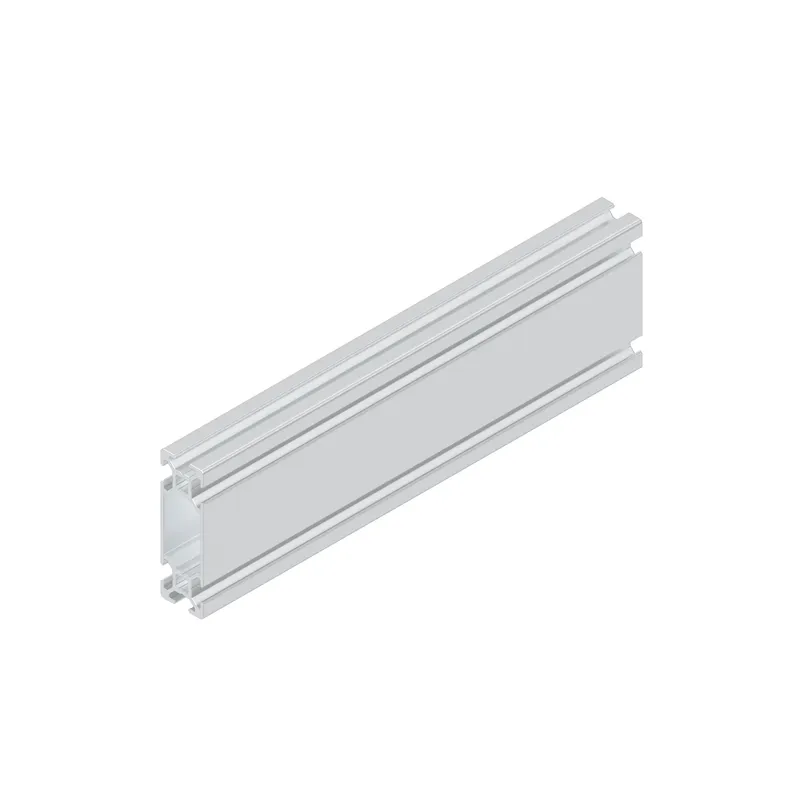

Strut profile 20x60 Q&E

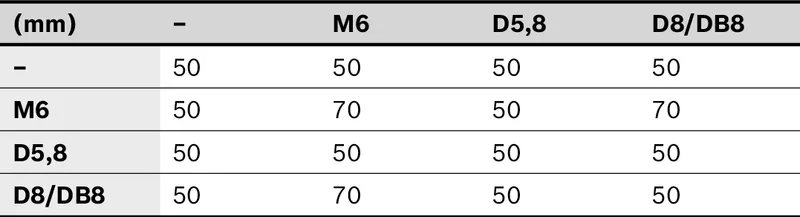

Minimum profile lengths for profile finishing: see table
Specifications
Specifications
| Condition on delivery | Profile finishing |
| Cross-section | 20x60 |
| Modular dimension [mm] | 20 |
| Profile slot | 6 |
| Dimensions | 20x60 |
| Open slots | 6.0 |
| Profile type | Standard |
| Color | Natural |
| Length max [L max] [mm] | 3000 |
| Length min [L min] [mm] | 50 |
| Packaging unit | 1 |
| Standard profile finishing minimum length | Observe minimum length |
| Mass [m] [kg] | 0.9 |

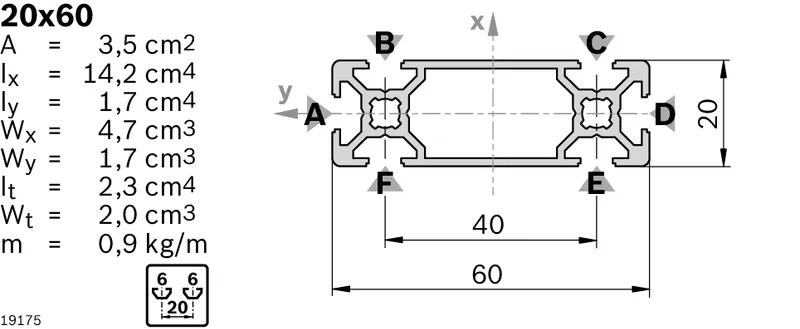

| Area moment of inertia in x-direction [lx] [cm⁴] | 14.2 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 1.7 |
| Profile surface [A] [cm²] | 3.5 |
| Moment of resistance in the x-direction [Wx] [cm³] | 4.7 |
| Moment of resistance in the y-direction [Wy] [cm³] | 1.7 |
| Torsional moment of inertia [It] [cm⁴] | 2.3 |
| Moment of torsion resistance [Wt] [cm³] | 2.0 |
| Notice | DGmax = 45°, Lmin1 / Lmin2 = 404/508mm; Standard profile finishing at specified slots |
| Material | Aluminum, anodized |
| Individual profile finishing [L max i] [mm] | 2300 |
| Recommended accessories | Cover cap 20x60, black; Cover cap 20x60, signal gray |
| Weight [kg] | 0 |
