Bosch Rexroth 3842992991

STRUT PROFILE 20X40X40

MPN: 3842992991
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842992991?

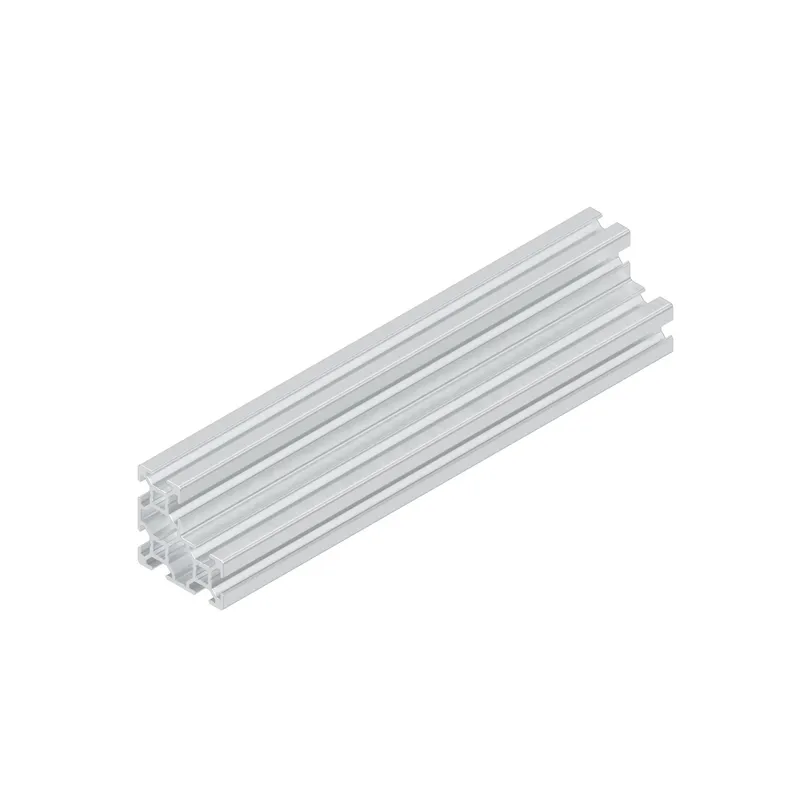

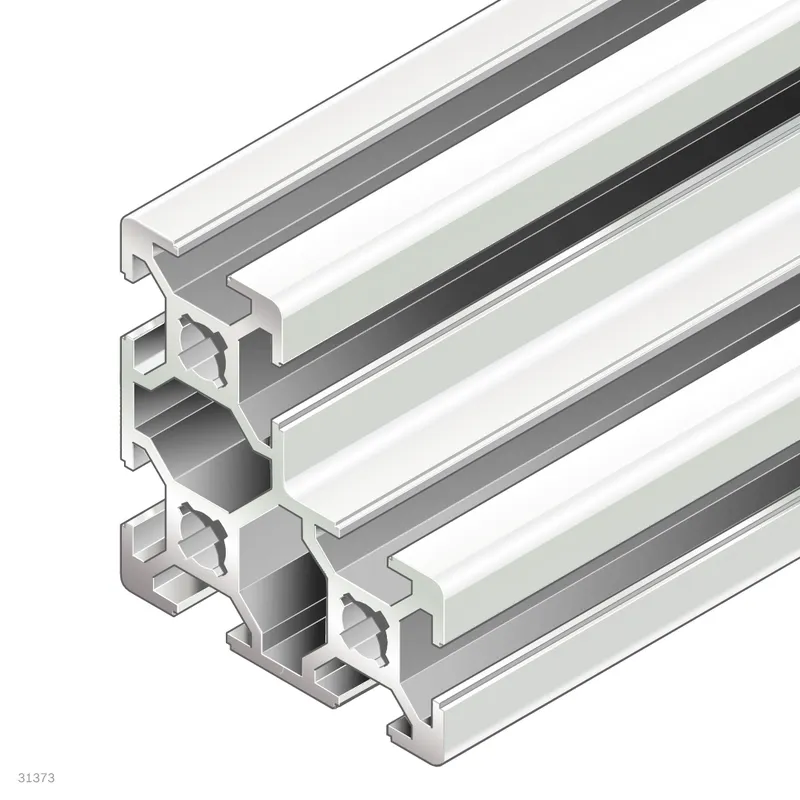

Strut profile 20x40x40

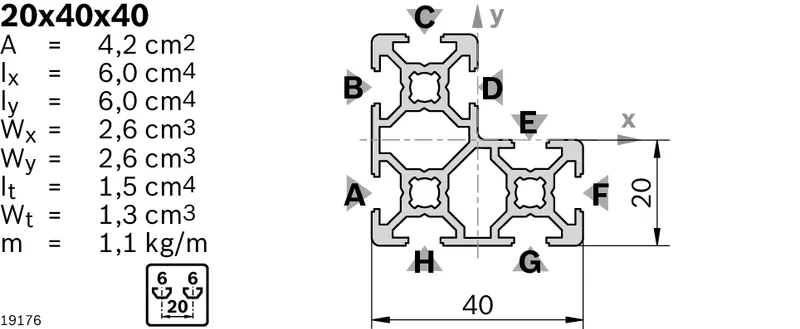

Specifications

Condition on delivery	Variable length
Cross-section	20x40x40
Modular dimension [mm]	20
Profile slot	6
Dimensions	20x40x40
Open slots	8.0
Profile type	angled
Color	Natural
Length max [L max] [mm]	3000
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	1.1
Area moment of inertia in x-direction [lx] [cm⁴]	6
Area moment of inertia in y-direction [ly] [cm⁴]	6
Profile surface [A] [cm²]	4.2
Moment of resistance in the x-direction [Wx] [cm³]	2.6
Moment of resistance in the y-direction [Wy] [cm³]	2.6
Torsional moment of inertia [It] [cm⁴]	1.5
Moment of torsion resistance [Wt] [cm³]	1.3
Material	Aluminum, anodized
Recommended accessories	Cover cap 20x20, black; Cover cap 20x20, signal gray
Weight [kg]	0
