Strut profile Parts
Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Profile type | Torsional moment of inertia [It] [cm⁴] | Moment of torsion resistance [Wt] [cm³] | Weight [kg] |
|---|---|---|---|---|---|
| 3842993500 | 20x40 | Standard | 0.68 | 0.91 | 0 |
| 3842993499 | 20x40 | Standard | 0.68 | 0.91 | 0 |
| 3842537816 | 20x40 | Standard | 0.68 | 0.91 | 58 |
| 3842993497 | 20x40 | Standard | 0.68 | 0.91 | 0 |
| 3842992891 | 20x40 | Standard | 0.68 | 0.91 | 0 |

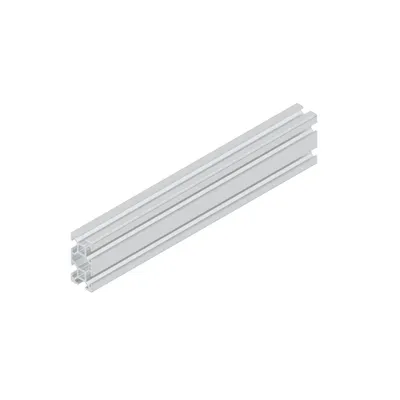

| 3842993696 | 20x40 | Standard | 0.68 | 0.91 | 0 |
| 3842517183 | 20x20 R | circular | 0.21 | 0.39 | 27.5 |
| 3842992890 | 20x20 R | circular | 0.21 | 0.39 | 0 |

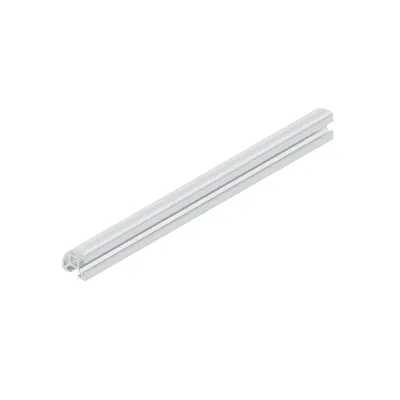

| 3842993695 | 20x20 R | circular | 0.21 | 0.39 | 0 |
| 3842993231 | 20x20 | Standard | 0.08 | 0.17 | 0 |
| 3842993494 | 20x20 | Standard | 0.08 | 0.17 | 0 |
| 3842993230 | 20x20 | Standard | 0.08 | 0.17 | 0 |
| 3842517173 | 20x20 | Standard | 0.08 | 0.17 | 1.37 |

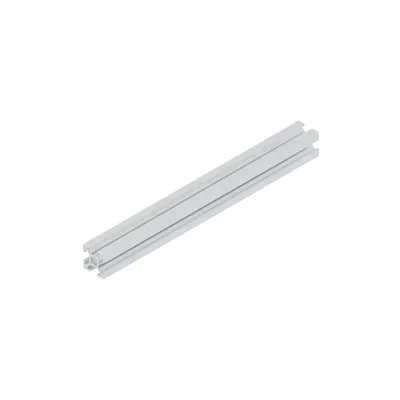

| 3842993496 | 20x20 | Standard | 0.08 | 0.17 | 0 |
| 3842993495 | 20x20 | Standard | 0.08 | 0.17 | 0 |
| 3842517174 | 20x20 3N | 3N | 0.19 | 0.34 | 1.43 |
| 3842517180 | 20x20 3N | 3N | 0.19 | 0.34 | 28.5 |
| 3842992889 | 20x20 3N | 3N | 0.19 | 0.34 | 0 |

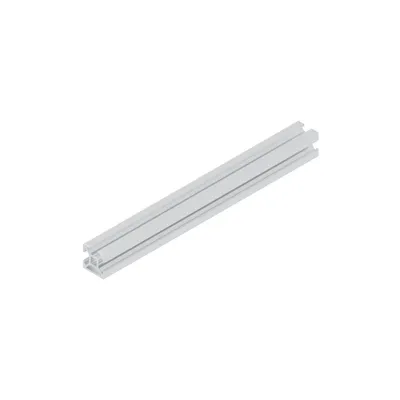

| 3842993693 | 20x20 3N | 3N | 0.19 | 0.34 | 0 |

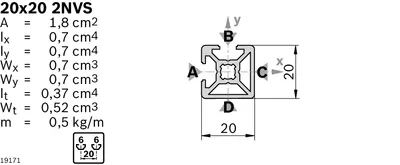

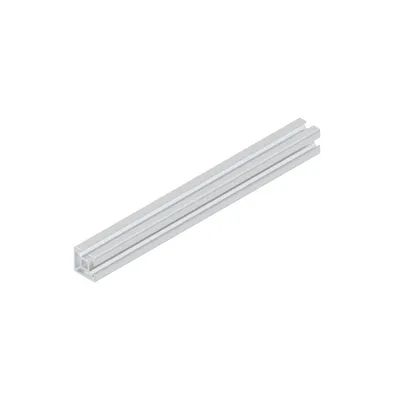

| 3842519657 | 20x20 2NVS | 2NVS | 0.37 | 0.52 | 1.52 |
| 3842519658 | 20x20 2NVS | 2NVS | 0.37 | 0.52 | 26 |
| 3842993692 | 20x20 2NVS | 2NVS | 0.37 | 0.52 | 0 |
| 3842992924 | 20x20 2NVS | 2NVS | 0.37 | 0.52 | 0 |

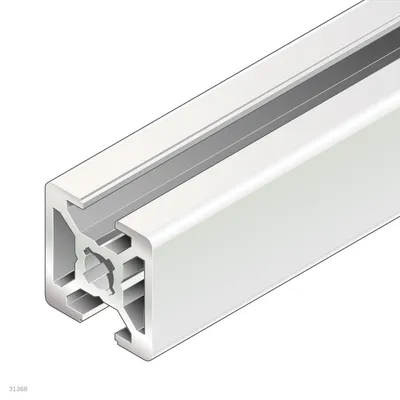

| 3842536479 | 20x20 2N | 2N | 0.31 | 0.52 | 1.52 |
Common to all listed parts
| Modular dimension [mm] | 20 |
| Profile slot | 6 |
| Color | Natural |
| Material | Aluminum, anodized |
