Strut profile Parts
Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Mass [m] [kg] | Area moment of inertia in y-direction [ly] [cm⁴] | Moment of resistance in the x-direction [Wx] [cm³] | Weight [kg] |
|---|---|---|---|---|---|

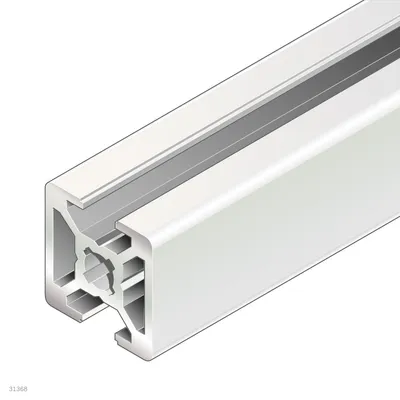

| 3842536478 | 20x20 2N | 0.5 | 0.8 | 0.7 | 30.5 |
| 3842993691 | 20x20 2N | 0.5 | 0.8 | 0.7 | 0 |
| 3842993422 | 20x20 2N | 0.5 | 0.8 | 0.7 | 0 |
| 3842517179 | 20x20 | 0.4 | 0.7 | 0.7 | 28 |

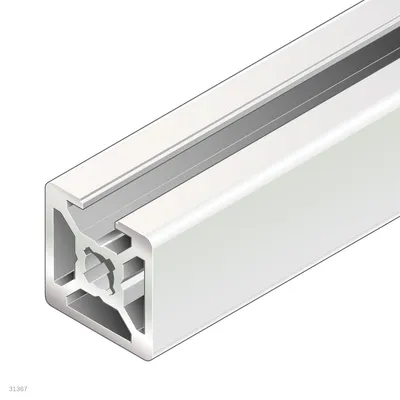

| 3842536476 | 20x20 1N | 0.5 | 0.8 | 0.8 | 1.61 |
| 3842536475 | 20x20 1N | 0.5 | 0.8 | 0.8 | 31 |
| 3842993690 | 20x20 1N | 0.5 | 0.8 | 0.8 | 0 |
| 3842993421 | 20x20 1N | 0.5 | 0.8 | 0.8 | 0 |

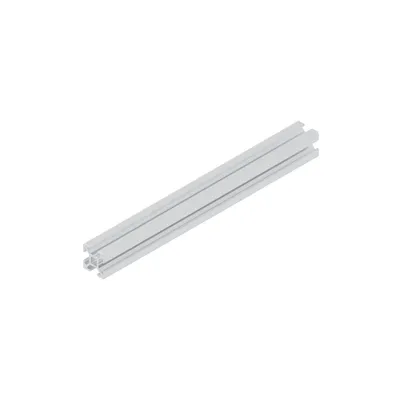

| 3842993493 | 20x20 | 0.4 | 0.7 | 0.7 | 0 |
| 3842992888 | 20x20 | 0.4 | 0.7 | 0.7 | 0 |
| 3842993694 | 20x20 | 0.4 | 0.7 | 0.7 | 0 |

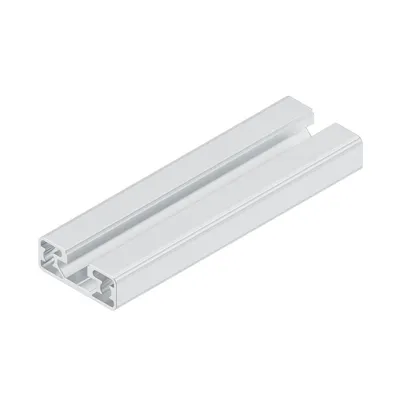

| 3842572011 | 15x40L | 3.8 | 0.6 | 0.87 | 1.92 |
| 3842572010 | 15x40L | 3.8 | 0.6 | 0.87 | 23.04 |
| 3842993779 | 15x40L | 3.8 | 0.6 | 0.87 | 0 |

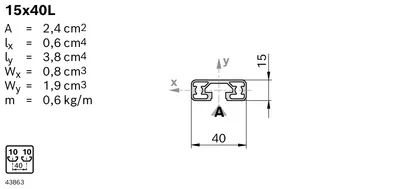

| 3842994181 | 15x40L | 3.8 | 0.6 | 0.87 | 0 |
| 3842563232 | 15x22,5 | 0.3 | 0.3 | 0.9 | 1.03 |
| 3842992475 | 15x22,5 | 0.3 | 0.3 | 0.9 | 0 |
| 3842992474 | 15x22,5 | 0.3 | 0.3 | 0.9 | 0 |

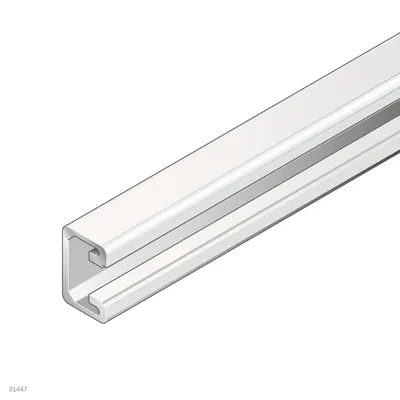

| 3842563231 | 15x22,5 | 0.3 | 0.3 | 0.9 | 10.23 |
| 3842993689 | 15x22,5 | 0.3 | 0.3 | 0.9 | 0 |
| 3842992473 | 15x22,5 | 0.3 | 0.3 | 0.9 | 0 |

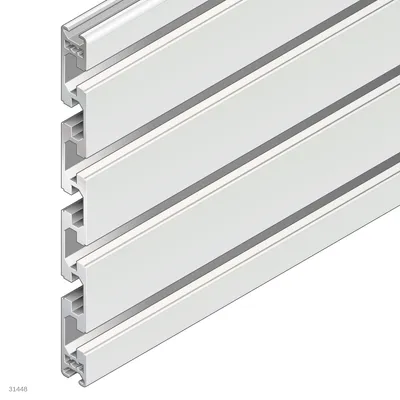

| 3842557249 | 15x180 | 3.1 | 3.2 | 35.7 | 19.4 |
| 3842557242 | 15x180 | 3.1 | 3.2 | 35.7 | 116.2 |

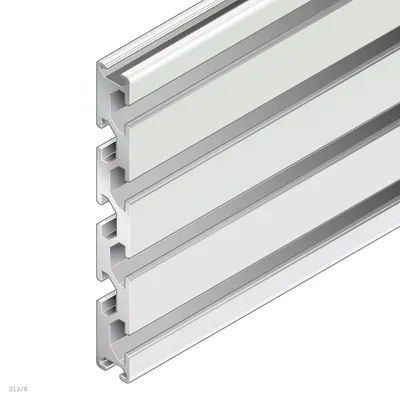

| 3842526818 | 15x120 | 2.4 | 2.2 | 18.4 | 7.23 |
Common to all listed parts
| Color | Natural |
| Material | Aluminum, anodized |
