Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Area moment of inertia in x-direction [lx] [cm⁴] | Moment of resistance in the y-direction [Wy] [cm³] | Torsional moment of inertia [It] [cm⁴] | Weight [kg] |
|---|---|---|---|---|---|

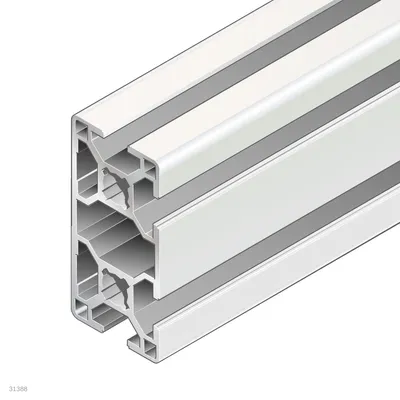

| 3842536472 | 30x60 4N | 20.2 | 3.8 | 4.8 | 96 |
| 3842993713 | 30x60 4N | 20.2 | 3.8 | 4.8 | 0 |
| 3842993420 | 30x60 4N | 20.2 | 3.8 | 4.8 | 0 |

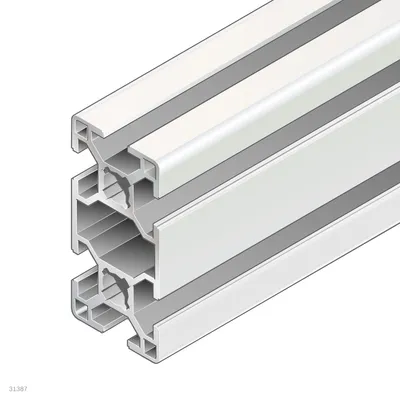

| 3842557205 | 30x60 | 19.6 | 3.9 | 2.6 | 92 |
| 3842512603 | 30x60 | 19.6 | 3.9 | 2.6 | 85 |
| 3842993712 | 30x60 | 19.6 | 3.9 | 2.6 | 0 |
| 3842992457 | 30x60 | 19.6 | 3.9 | 2.6 | 0 |

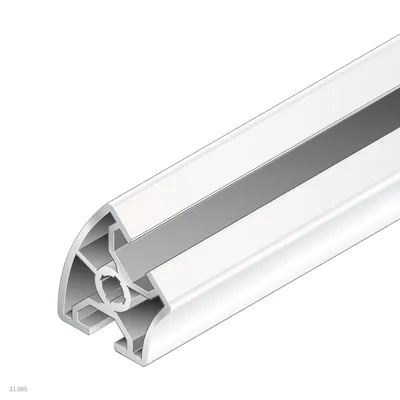

| 3842558314 | 30x45° | 3.6 | 2.3 | 2.1 | 6.7 |
| 3842557952 | 30x45° | 3.6 | 2.3 | 2.1 | 133.3 |
| 3842524034 | 30x45° | 3.6 | 2.3 | 2.1 | 141 |
| 3842993711 | 30x45° | 3.6 | 2.3 | 2.1 | 0 |
| 3842993011 | 30x45° | 3.6 | 2.3 | 2.1 | 0 |

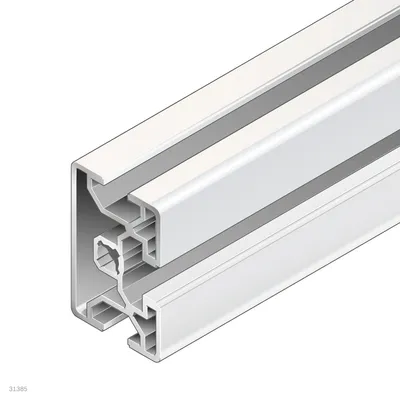

| 3842992431 | 30x45 | 8.1 | 2.9 | 1.3 | 0 |
| 3842557213 | 30x45 | 8.1 | 2.9 | 1.3 | 6.6 |
| 3842557203 | 30x45 | 8.1 | 2.9 | 1.3 | 119 |
| 3842993710 | 30x45 | 8.1 | 2.9 | 1.3 | 0 |
| 3842992430 | 30x45 | 8.1 | 2.9 | 1.3 | 0 |

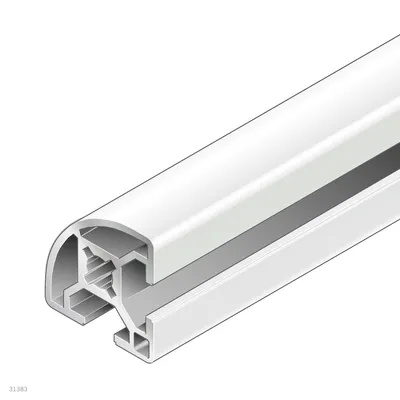

| 3842558309 | 30x30 R | 2.3 | 1.4 | 0.81 | 4.8 |
| 3842557947 | 30x30 R | 2.3 | 1.4 | 0.81 | 96.3 |
| 3842992896 | 30x30 R | 2.3 | 1.4 | 0.81 | 0 |
| 3842993709 | 30x30 R | 2.3 | 1.4 | 0.81 | 0 |

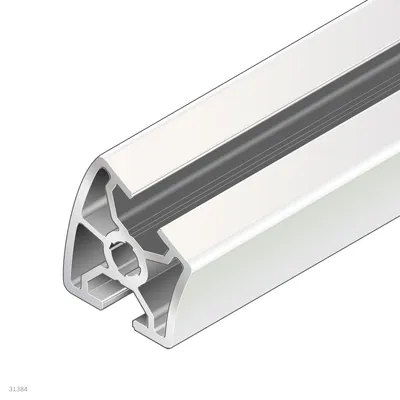

| 3842558313 | 30x30° | 3.5 | 1.9 | 1.5 | 6.1 |
| 3842557951 | 30x30° | 3.5 | 19.9 | 15.5 | 122.2 |
| 3842993708 | 30x30° | 3.5 | 1.9 | 1.5 | 0 |
Common to all listed parts
| Modular dimension [mm] | 30 |
| Profile slot | 8 |
| Color | Natural |
| Material | Aluminum, anodized |
