Bosch Rexroth 3842990091

STRUT PROFILE 22,5X45 D17V/D17V

MPN: 3842990091
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842990091?

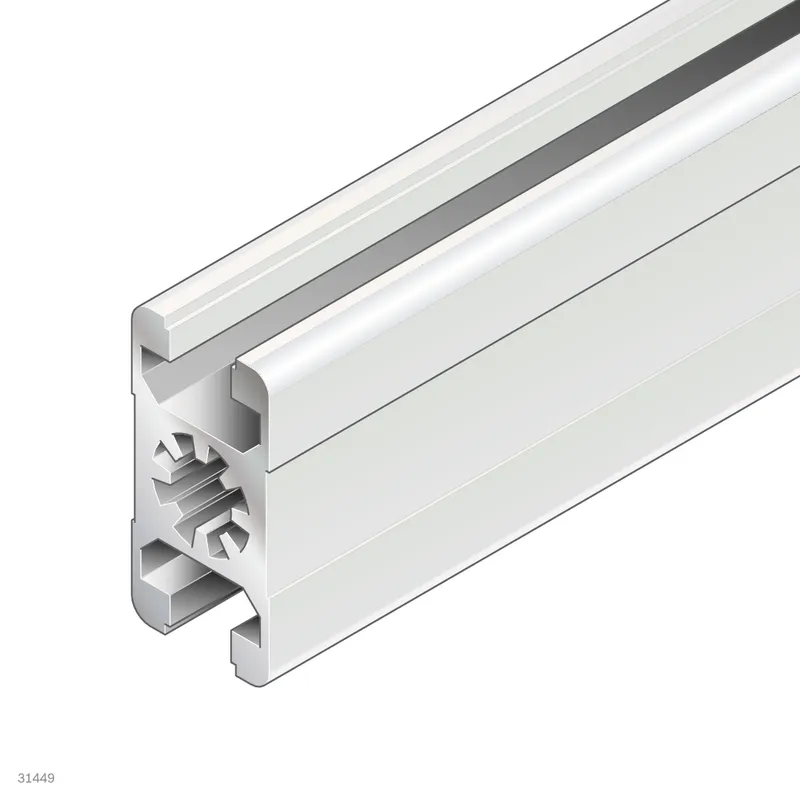

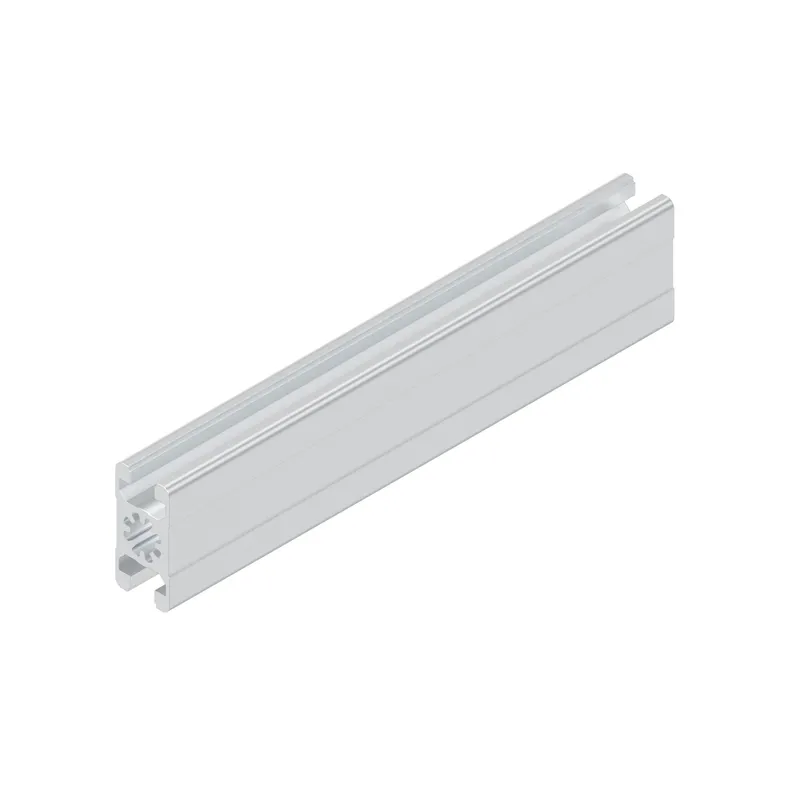

Strut profile 22.5x45 M12/M12

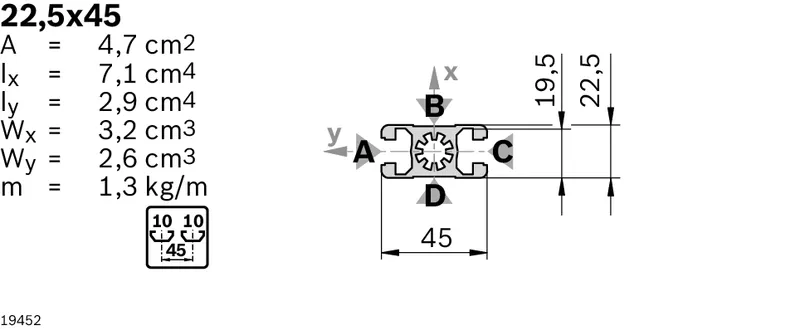

Specifications

Condition on delivery	Profile finishing
Cross-section	22,5x45
Modular dimension [mm]	45
Profile slot	10
Dimensions	22,5x45
Open slots	2.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	80
Packaging unit	1
Mass [m] [kg]	1.3
Area moment of inertia in x-direction [lx] [cm⁴]	7.1
Area moment of inertia in y-direction [ly] [cm⁴]	2.9
Profile surface [A] [cm²]	4.7
Moment of resistance in the x-direction [Wx] [cm³]	3.2
Moment of resistance in the y-direction [Wy] [cm³]	2.6
Material	Aluminum, anodized
Recommended accessories	Cap 22.5x45, black; Cover cap 22.5x45, signal gray
Weight [kg]	0
