Bosch Rexroth 3842993763

STRUT PROFILE 30X120 Q&E

MPN: 3842993763
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993763?

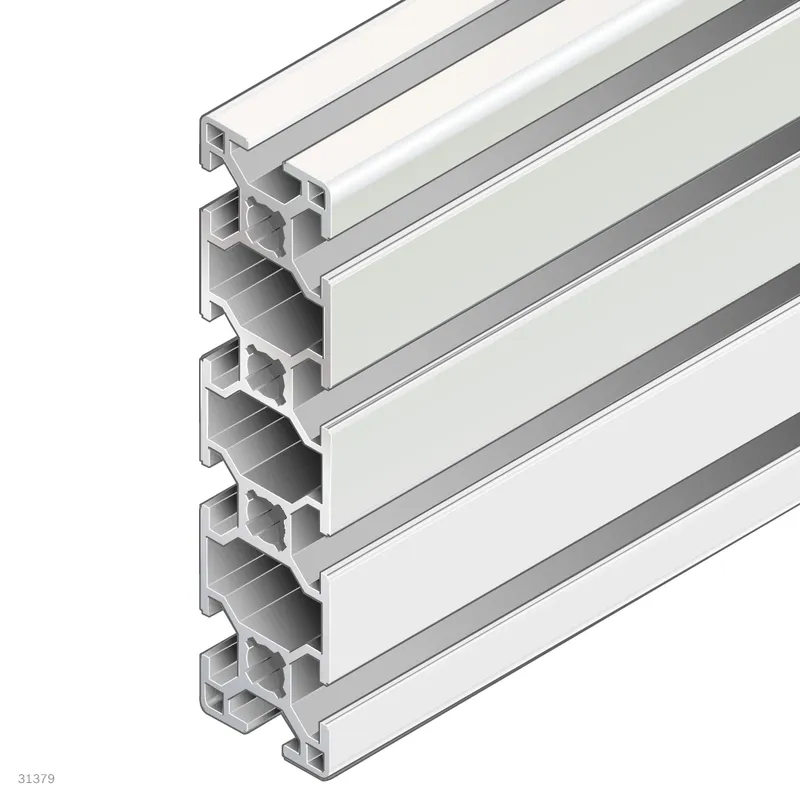

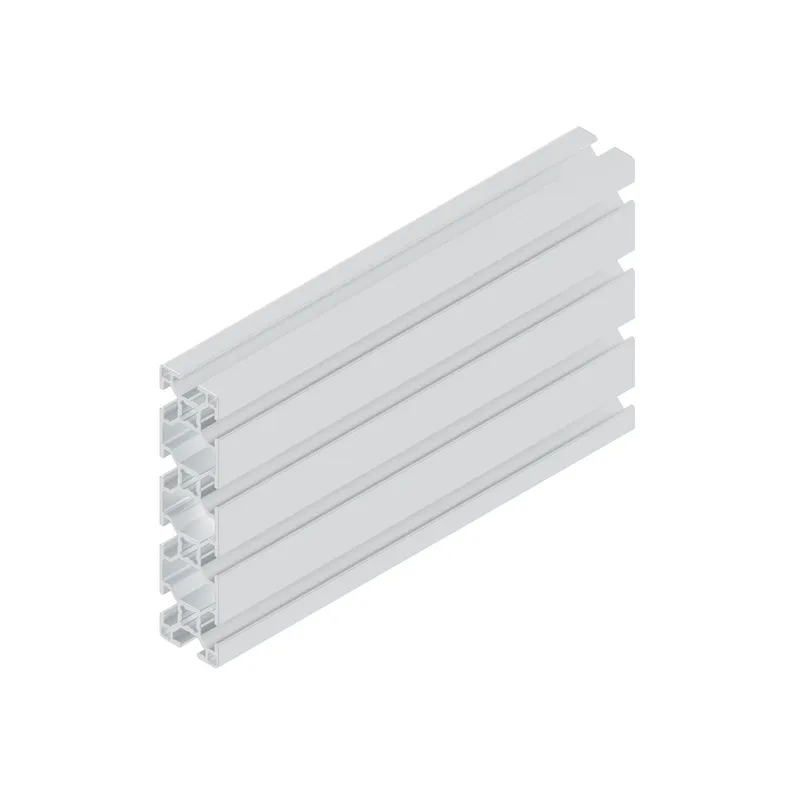

Strut profile 30x120 Q&E

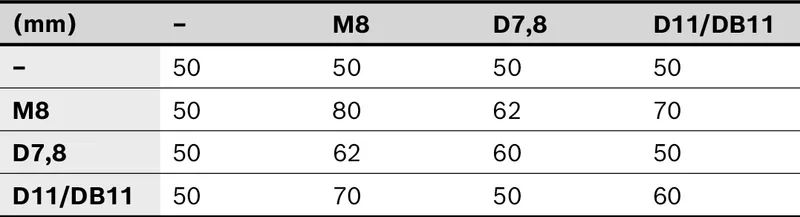

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing

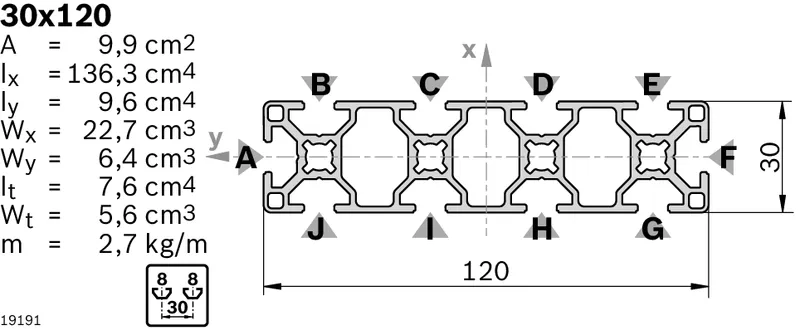

Cross-section	30x120
Modular dimension [mm]	30
Profile slot	8
Dimensions	30x120
Open slots	10.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M8 / D7,8(B,C,D,E,G,H,I,J)<sup>1)</sup> / D11(B,C,D,E,G,H,I,J)<sup>1)</sup> / DB11
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	2.7
Area moment of inertia in x-direction [lx] [cm⁴]	136.3
Area moment of inertia in y-direction [ly] [cm⁴]	9.6
Profile surface [A] [cm²]	9.9
Moment of resistance in the x-direction [Wx] [cm³]	22.7
Moment of resistance in the y-direction [Wy] [cm³]	6.4
Torsional moment of inertia [It] [cm⁴]	7.6
Moment of torsion resistance [Wt] [cm³]	5.6
Notice	DGmax= 45°, Lmin1 / Lmin2 = 150/150mm; Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	5400
Standard profile finishing [L max] [mm]	6000
Recommended accessories	Cover cap 30x30, black; Cover cap 30x30, signal gray; Cover cap 30x60, black; Cover cap 30x60, signal gray; Cover cap with hole 30x30, black; Cover cap with hole 30x30, signal gray
Weight [kg]	0
