Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Open slots | Area moment of inertia in x-direction [lx] [cm⁴] | Area moment of inertia in y-direction [ly] [cm⁴] | Weight [kg] |
|---|---|---|---|---|---|

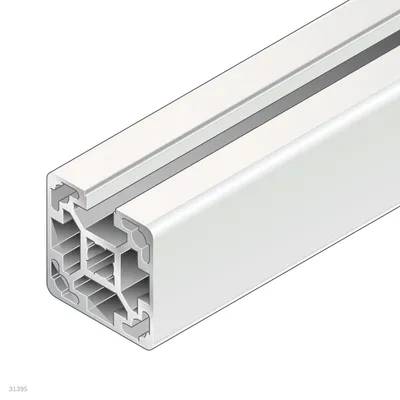

| 3842993186 | 40x40L 1N | 1.0 | 9.8 | 10.3 | 0 |
| 3842993185 | 40x40L 1N | 1.0 | 9.8 | 10.3 | 0 |

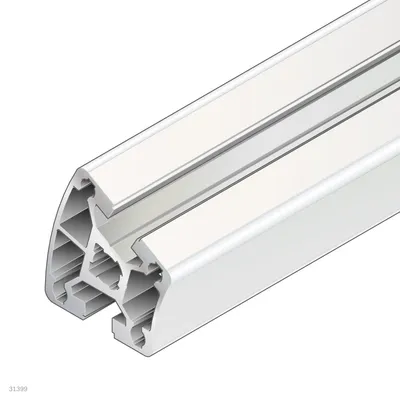

| 3842993195 | 40x30° | 2.0 | 9.4 | 11.8 | 0 |
| 3842529372 | 40x30° | 2.0 | 9.4 | 11.8 | 10.37 |
| 3842529371 | 40x30° | 2.0 | 9.4 | 11.8 | 125 |
| 3842993718 | 40x30° | 2.0 | 9.4 | 11.8 | 0 |

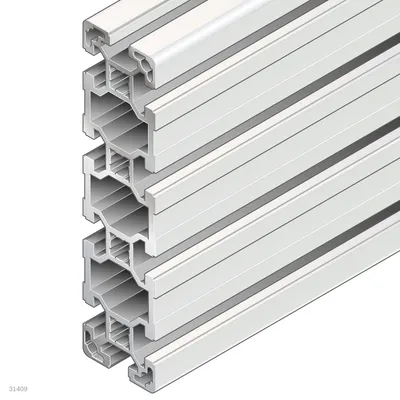

| 3842993145 | 40x160L | 10.0 | 466.7 | 37.2 | 0 |
| 3842993144 | 40x160L | 10.0 | 466.7 | 37.2 | 0 |
| 3842529346 | 40x160L | 10.0 | 466.7 | 37.2 | 32.38 |
| 3842993146 | 40x160L | 10.0 | 466.7 | 37.2 | 0 |
| 3842529345 | 40x160L | 10.0 | 466.7 | 37.2 | 218 |
| 3842993717 | 40x160L | 10.0 | 466.7 | 37.2 | 0 |
| 3842993143 | 40x160L | 10.0 | 466.7 | 37.2 | 0 |

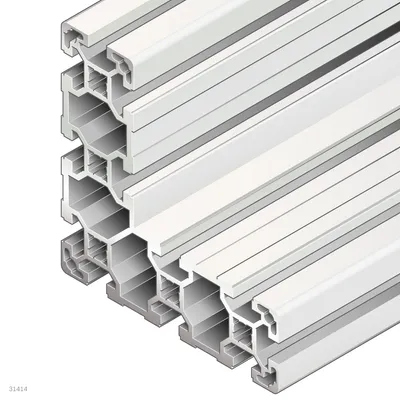

| 3842538252 | 40x120x120L | 12.0 | 318 | 318 | 41 |
| 3842538287 | 40x120x120L | 12.0 | 318 | 318 | 164.1 |
| 3842993757 | 40x120x120L | 12.0 | 318 | 318 | 0 |
| 3842993653 | 40x120x120L | 12.0 | 318 | 318 | 0 |

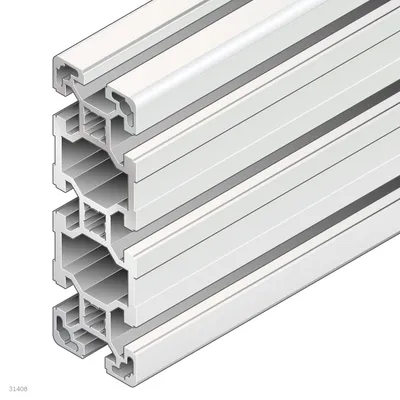

| 3842993141 | 40x120L | 8.0 | 203.2 | 27.8 | 0 |
| 3842993140 | 40x120L | 8.0 | 203.2 | 27.8 | 0 |
| 3842529344 | 40x120L | 8.0 | 203.2 | 27.8 | 24.28 |
| 3842993142 | 40x120L | 8.0 | 203.2 | 27.8 | 0 |
| 3842537824 | 40x120L | 8.0 | 203.2 | 27.8 | 206.82 |

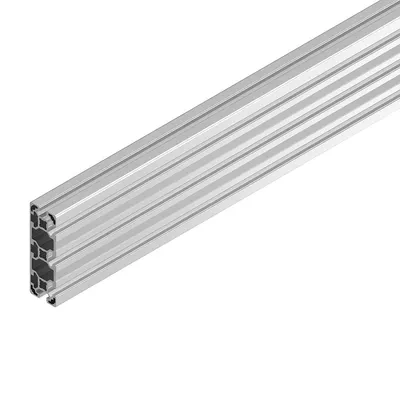

| 3842996363 | 40x120L 5N | 5.0 | 212.4 | 30.1 | 0 |
| 3842558480 | 40x120L 5N | 5.0 | 212.4 | 30.06 | 211 |
Common to all listed parts
| Modular dimension [mm] | 40 |
| Profile slot | 10 |
| ESD | Yes |
| Color | Natural |
| Material | Aluminum, anodized |
