Bosch Rexroth 3842993141

STRUT PROFILE 40X120L M12/M12

MPN: 3842993141
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993141?

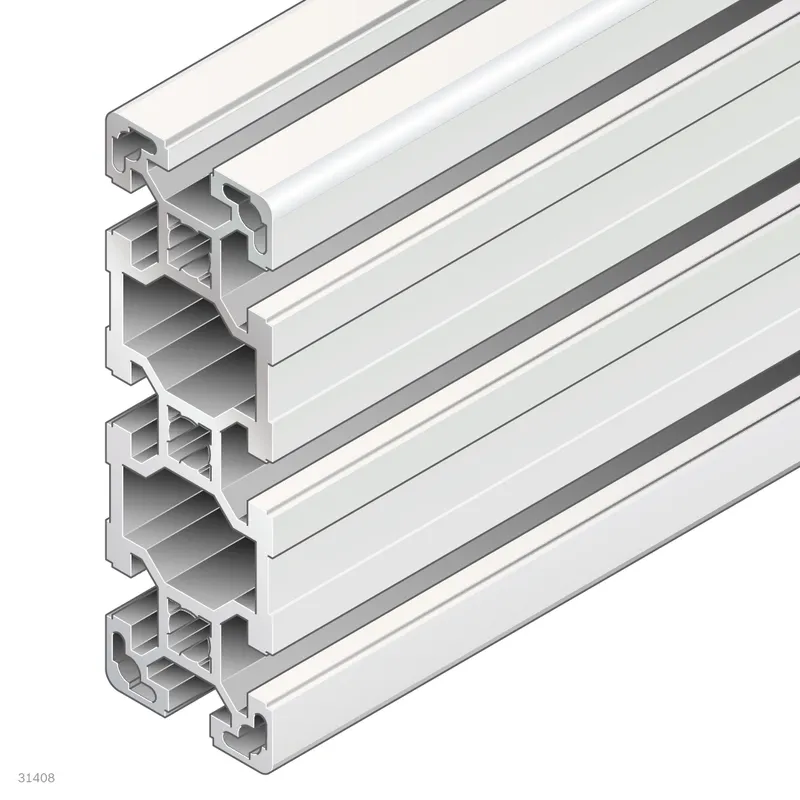

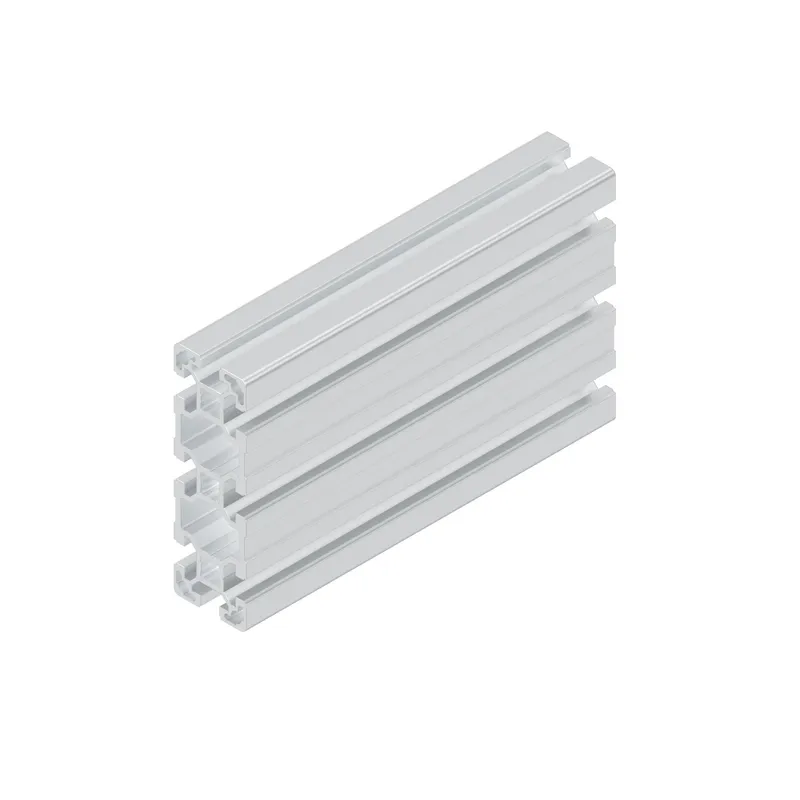

Strut profile 40x120L M12/M12

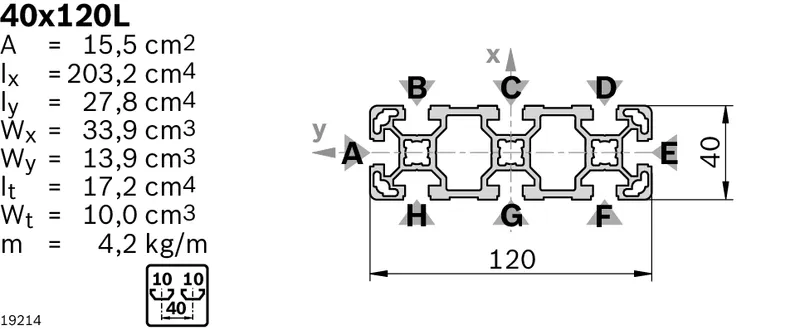

Specifications

Condition on delivery	Profile finishing
Cross-section	40x120L
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x120
Open slots	8.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	110
Packaging unit	1
Mass [m] [kg]	4.2
Area moment of inertia in x-direction [lx] [cm⁴]	203.2
Area moment of inertia in y-direction [ly] [cm⁴]	27.8
Profile surface [A] [cm²]	15.5
Moment of resistance in the x-direction [Wx] [cm³]	33.9
Moment of resistance in the y-direction [Wy] [cm³]	13.9
Torsional moment of inertia [It] [cm⁴]	17.2
Moment of torsion resistance [Wt] [cm³]	10.0
Profile adaption	D17: in slots B/H, C/G, D/F; D17V: in slots A/E; M12: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 40x40, black; Cover cap 40x40, signal gray; Cover cap 40x80, black; Cover cap 40x80, signal gray
Weight [kg]	0
