Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Profile type | Torsional moment of inertia [It] [cm⁴] | Moment of torsion resistance [Wt] [cm³] | Weight [kg] |
|---|---|---|---|---|---|

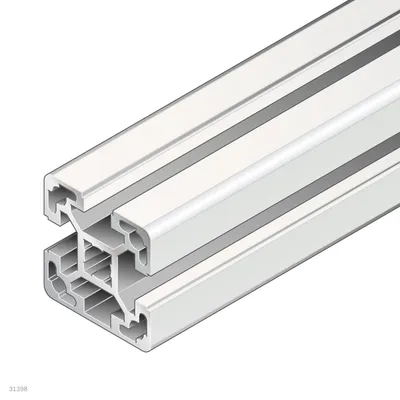

| 3842993191 | 40x40L 3N | 3N | 2.6 | 1.7 | 0 |

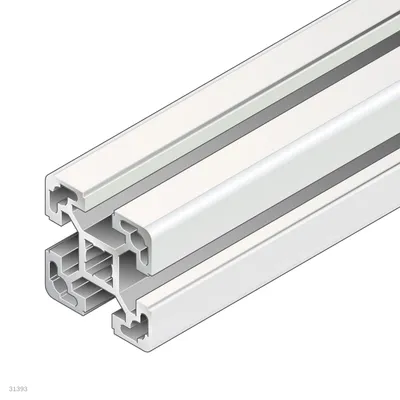

| 3842993129 | 40x40L | Standard | 1.3 | 0.74 | 0 |

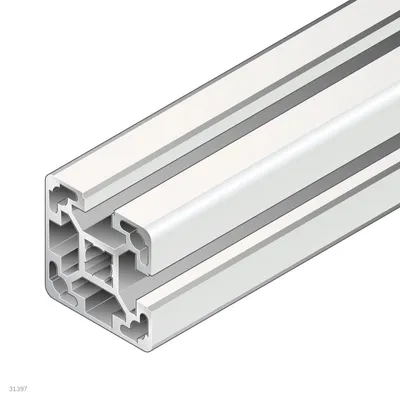

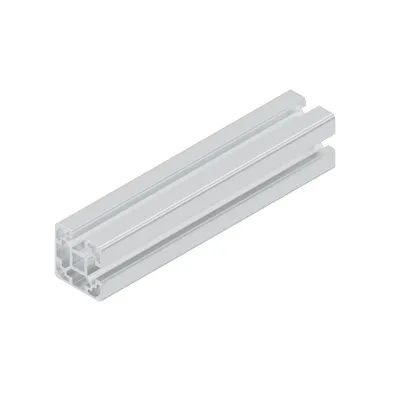

| 3842993190 | 40x40L 2NVS | 2NVS | 4.5 | 2.7 | 0 |
| 3842529366 | 40x40L 2NVS | 2NVS | 4.5 | 2.7 | 9.94 |
| 3842529365 | 40x40L 2NVS | 2NVS | 4.5 | 2.7 | 195 |
| 3842993721 | 40x40L 2NVS | 2NVS | 4.5 | 2.7 | 0 |
| 3842993189 | 40x40L 2NVS | 2NVS | 4.5 | 2.7 | 0 |

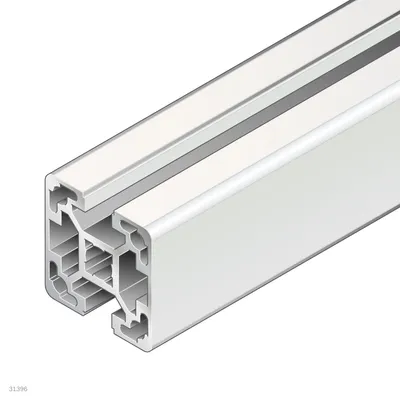

| 3842993188 | 40x40L 2N | 2N | 4.0 | 3.0 | 0 |
| 3842529364 | 40x40L 2N | 2N | 4.0 | 3.0 | 9.94 |
| 3842529363 | 40x40L 2N | 2N | 4.0 | 3.0 | 195 |
| 3842993720 | 40x40L 2N | 2N | 4.0 | 3.0 | 0 |
| 3842993187 | 40x40L 2N | 2N | 4.0 | 3.0 | 0 |
| 3842529339 | 40x40L | Standard | 1.3 | 0.74 | 203 |

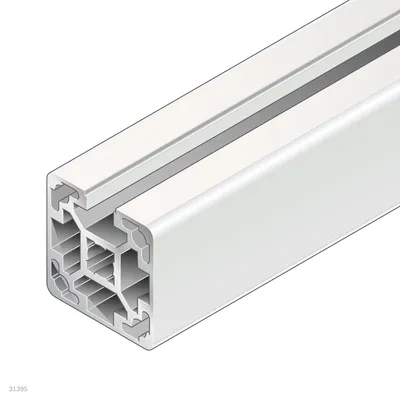

| 3842529362 | 40x40L 1N | 1N | 6.9 | 3.7 | 10.19 |
| 3842529361 | 40x40L 1N | 1N | 6.9 | 3.7 | 205 |
| 3842993719 | 40x40L 1N | 1N | 6.9 | 3.7 | 0 |

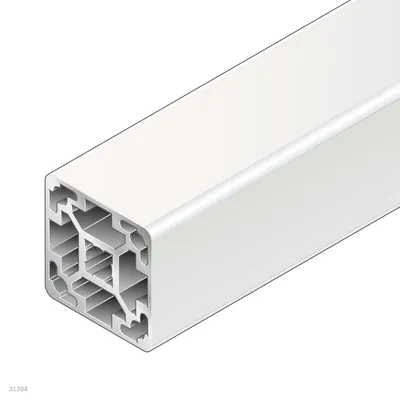

| 3842540954 | 40x40L 0N | 0N | 10.7 | 4.3 | 211 |
| 3842993760 | 40x40L 0N | 0N | 10.7 | 4.3 | 0 |
| 3842993724 | 40x40L | Standard | 1.3 | 0.74 | 0 |
| 3842993120 | 40x40L | Standard | 1.3 | 0.74 | 0 |

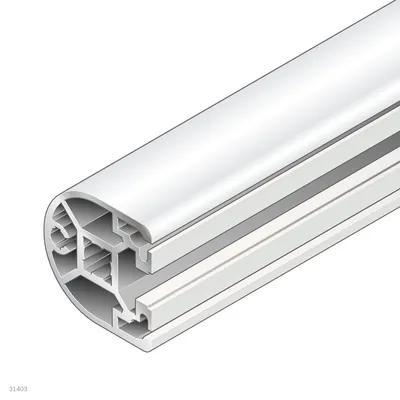

| 3842993257 | 40x40 HR | semicircular | 4.6 | 2.8 | 0 |
| 3842529381 | 40x40 HR | semicircular | 4.6 | 2.8 | 182 |
| 3842993723 | 40x40 HR | semicircular | 4.6 | 2.8 | 0 |
| 3842993256 | 40x40 HR | semicircular | 4.6 | 2.8 | 0 |
Common to all listed parts
| Modular dimension [mm] | 40 |
| Profile slot | 10 |
| ESD | Yes |
| Dimensions | 40x40 |
| Color | Natural |
| Material | Aluminum, anodized |
