Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Mass [m] [kg] | Area moment of inertia in x-direction [lx] [cm⁴] | Area moment of inertia in y-direction [ly] [cm⁴] | Weight [kg] |
|---|---|---|---|---|---|

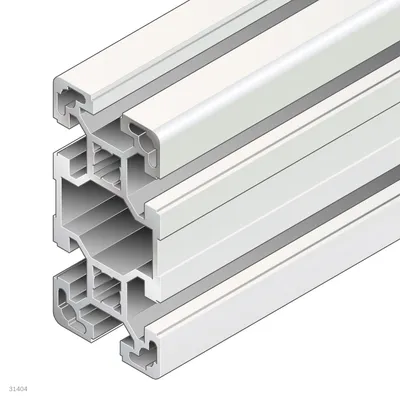

| 3842993130 | 40x80L | 2.7 | 63.4 | 17.3 | 0 |

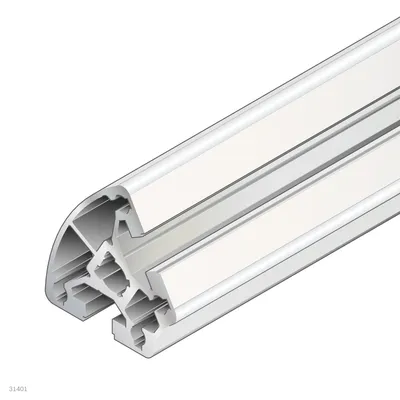

| 3842993198 | 40x60° | 1.7 | 8.7 | 13.1 | 0 |
| 3842529376 | 40x60° | 1.7 | 8.7 | 13.1 | 10.49 |
| 3842529375 | 40x60° | 1.7 | 8.7 | 13.1 | 125 |
| 3842993727 | 40x60° | 1.7 | 8.7 | 13.1 | 0 |

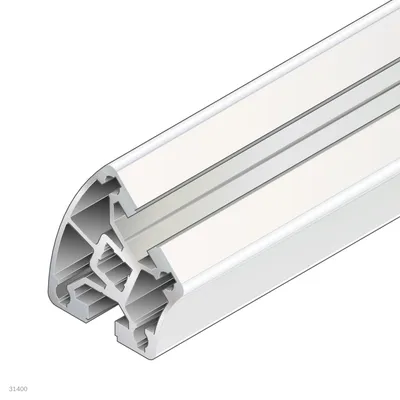

| 3842993197 | 40x45° | 1.8 | 9.9 | 16.6 | 0 |
| 3842529374 | 40x45° | 1.8 | 9.9 | 16.6 | 11.36 |
| 3842529373 | 40x45° | 1.8 | 9.9 | 16.6 | 154 |
| 3842993726 | 40x45° | 1.8 | 9.9 | 16.6 | 0 |

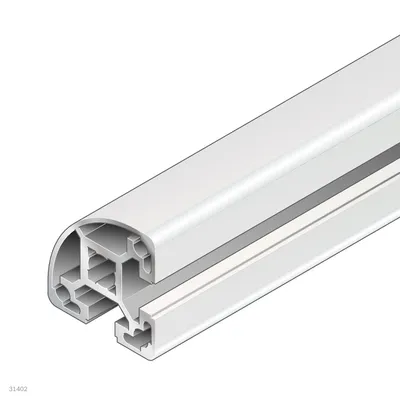

| 3842529360 | 40x40L R | 1.3 | 7.2 | 7.2 | 7.19 |
| 3842529359 | 40x40L R | 1.3 | 7.2 | 7.2 | 171 |
| 3842993725 | 40x40L R | 1.3 | 7.2 | 7.2 | 0 |
| 3842993184 | 40x40L R | 1.3 | 7.2 | 7.2 | 0 |

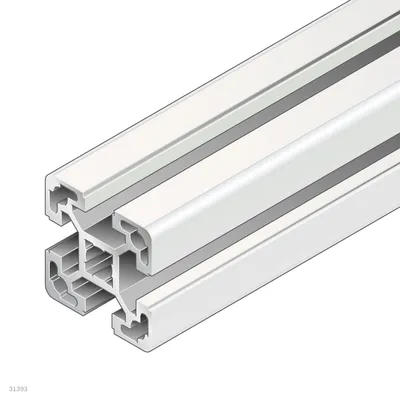

| 3842993122 | 40x40L | 1.5 | 9.1 | 9.1 | 0 |
| 3842993123 | 40x40L | 1.5 | 9.1 | 9.1 | 0 |
| 3842993121 | 40x40L | 1.5 | 9.1 | 9.1 | 0 |
| 3842529340 | 40x40L | 1.5 | 9.1 | 9.1 | 9.01 |
| 3842993126 | 40x40L | 1.5 | 9.1 | 9.1 | 0 |
| 3842993125 | 40x40L | 1.5 | 9.1 | 9.1 | 0 |
| 3842993124 | 40x40L | 1.5 | 9.1 | 9.1 | 0 |

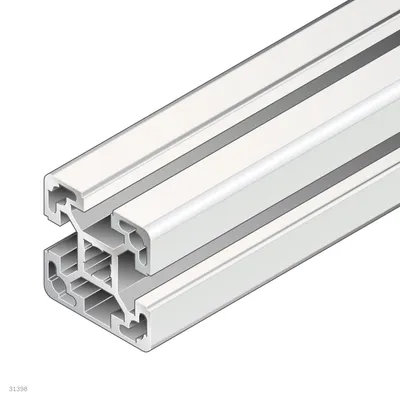

| 3842993192 | 40x40L 3N | 1.6 | 9.7 | 9 | 0 |
| 3842529368 | 40x40L 3N | 1.6 | 9.7 | 9 | 9.63 |
| 3842529367 | 40x40L 3N | 1.6 | 9.7 | 9 | 190 |
| 3842993722 | 40x40L 3N | 1.6 | 9.7 | 9 | 0 |
Common to all listed parts
| Modular dimension [mm] | 40 |
| Profile slot | 10 |
| Color | Natural |
| Material | Aluminum, anodized |
