Bosch Rexroth 3842993653

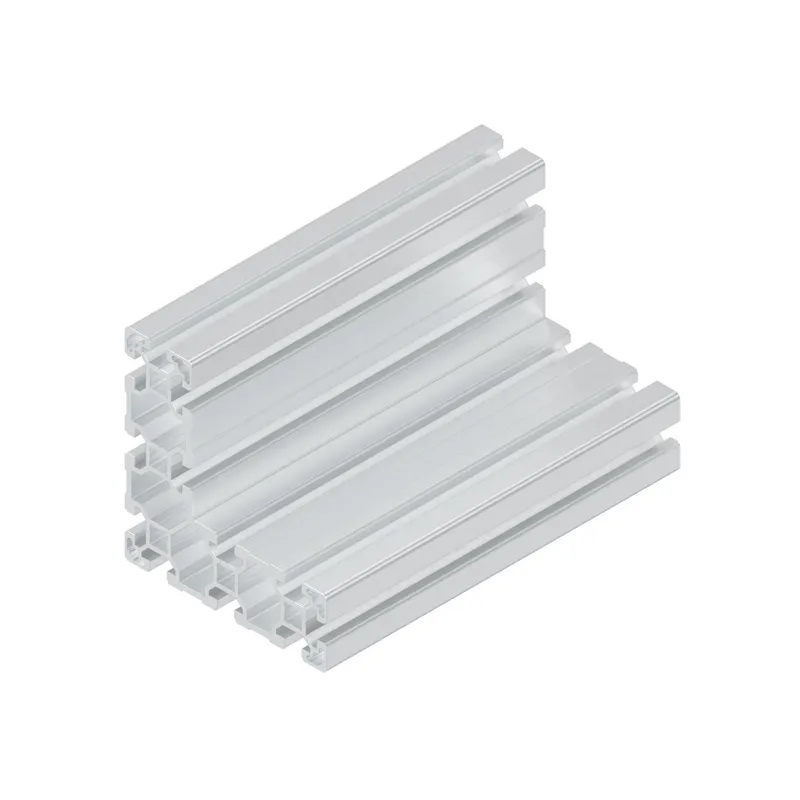

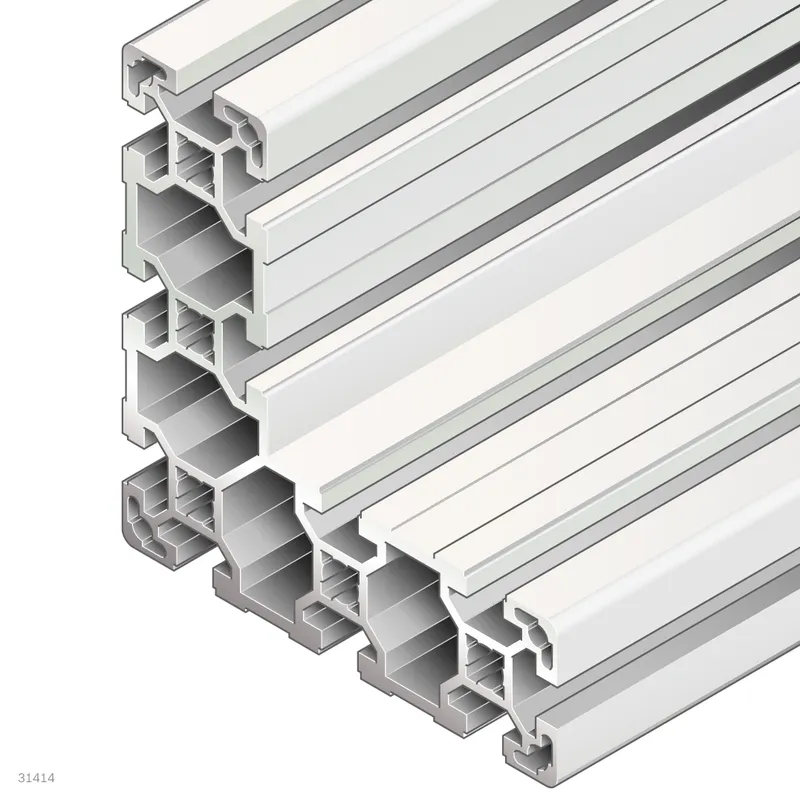

STRUT PROFILE 40X120X120L

MPN: 3842993653
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993653?

Strut profile 40x120x120L

Specifications

Condition on delivery	Variable length

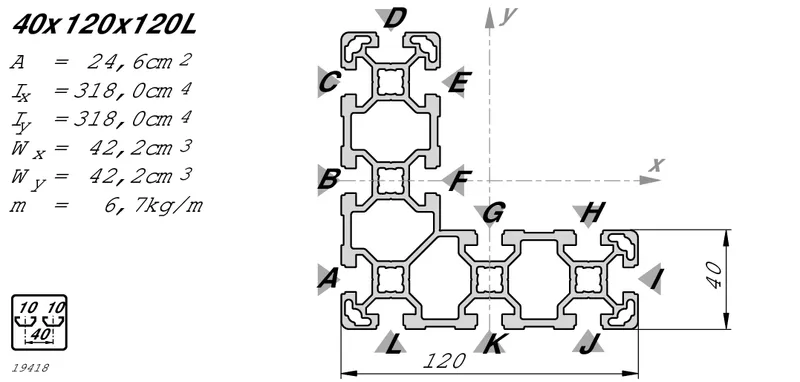

Cross-section	40x120x120L
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x120x120
Open slots	12.0
Profile type	angled
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	6.7
Area moment of inertia in x-direction [lx] [cm⁴]	318
Area moment of inertia in y-direction [ly] [cm⁴]	318
Profile surface [A] [cm²]	24.6
Moment of resistance in the x-direction [Wx] [cm³]	42.2
Moment of resistance in the y-direction [Wy] [cm³]	42.2
Torsional moment of inertia [It] [cm⁴]	37.1
Moment of torsion resistance [Wt] [cm³]	19.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 40x40, black; Cover cap 40x40, signal gray; Cover cap 40x80, black; Cover cap 40x80, signal gray
Weight [kg]	0
