Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Area moment of inertia in x-direction [lx] [cm⁴] | Area moment of inertia in y-direction [ly] [cm⁴] | Moment of resistance in the x-direction [Wx] [cm³] | Weight [kg] |
|---|---|---|---|---|---|

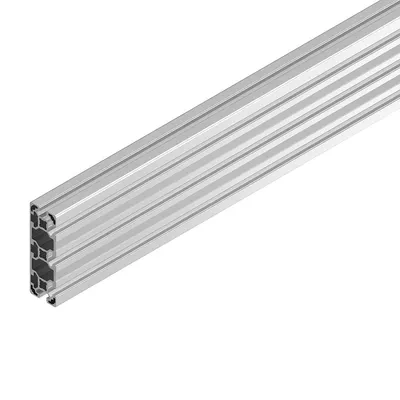

| 3842993771 | 40x120L 5N | 212.4 | 30.06 | 35.3 | 0 |

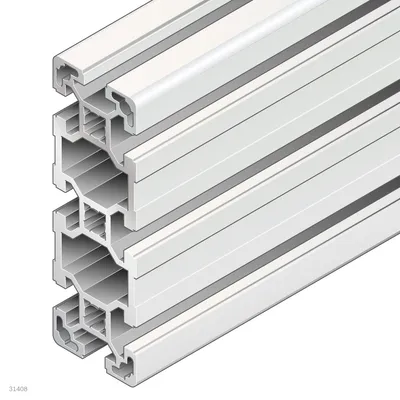

| 3842993225 | 40x120L | 203.2 | 27.8 | 33.9 | 0 |
| 3842993716 | 40x120L | 203.2 | 27.8 | 33.9 | 0 |
| 3842993139 | 40x120L | 203.2 | 27.8 | 33.9 | 0 |

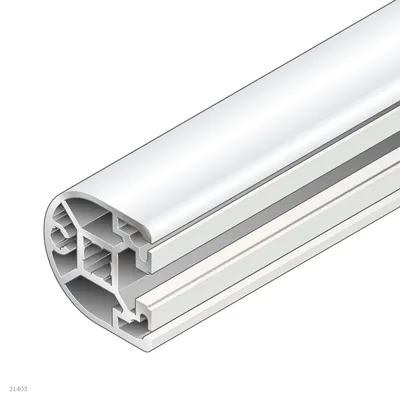

| 3842564216 | 40x40 HR | 8.1 | 7.6 | 4.0 | 9.13 |

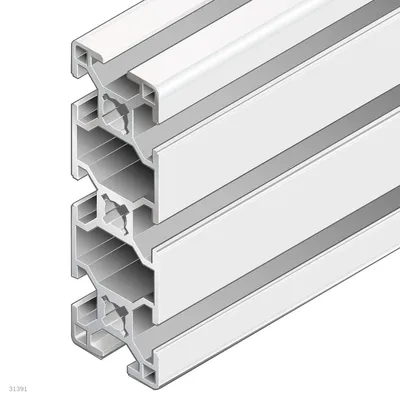

| 3842541937 | 30x90 | 60.7 | 7.3 | 13.5 | 262.9 |
| 3842993762 | 30x90 | 60.7 | 7.3 | 13.5 | 0 |

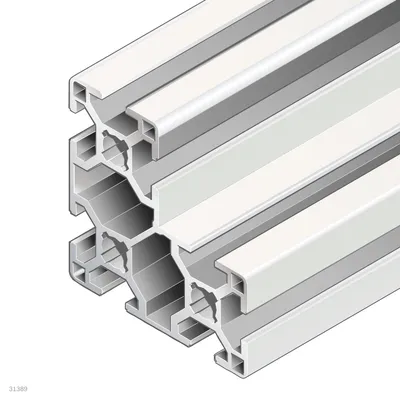

| 3842557248 | 30x60x60 | 26.2 | 26.2 | 7.6 | 13.7 |
| 3842557241 | 30x60x60 | 26.2 | 26.2 | 7.6 | 273.9 |
| 3842993715 | 30x60x60 | 26.2 | 26.2 | 7.6 | 0 |
| 3842993016 | 30x60x60 | 26.2 | 26.2 | 7.6 | 0 |

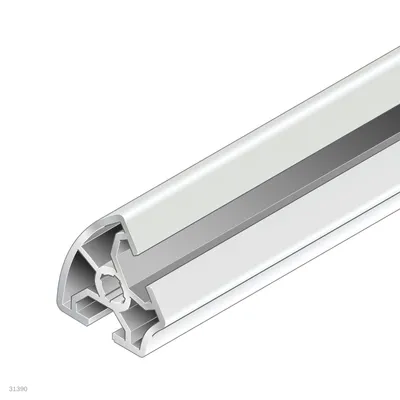

| 3842558315 | 30x60° | 3 | 4.1 | 1.7 | 6 |
| 3842557953 | 30x60° | 3 | 4.1 | 1.7 | 120.9 |
| 3842524037 | 30x60° | 3 | 4.1 | 1.7 | 112 |
| 3842993714 | 30x60° | 3 | 4.1 | 1.7 | 0 |
| 3842993012 | 30x60° | 3 | 4.1 | 1.7 | 0 |

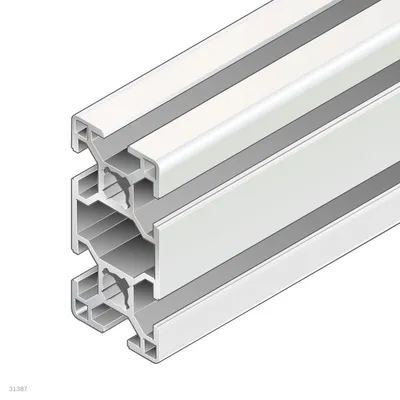

| 3842992926 | 30x60 | 19.6 | 5.1 | 7 | 0 |
| 3842992458 | 30x60 | 19.6 | 5.1 | 7 | 0 |
| 3842557215 | 30x60 | 19.6 | 5.1 | 7 | 9.2 |
| 3842992462 | 30x60 | 19.6 | 5.1 | 7 | 0 |
| 3842992463 | 30x60 | 19.6 | 5.1 | 7 | 0 |
| 3842992460 | 30x60 | 19.6 | 5.1 | 7 | 0 |
| 3842992459 | 30x60 | 19.6 | 5.1 | 7 | 0 |

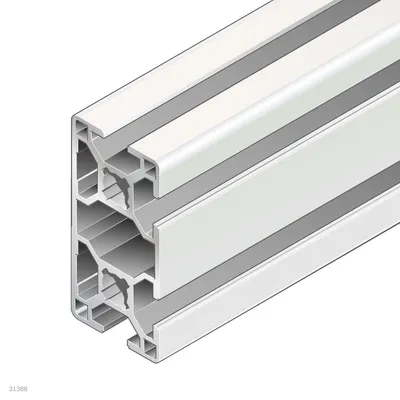

| 3842536473 | 30x60 4N | 20.2 | 5.5 | 6.7 | 9.75 |
Common to all listed parts
| Color | Natural |
| Material | Aluminum, anodized |
