Bosch Rexroth 3842993185

STRUT PROFILE 40X40 1N

MPN: 3842993185
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

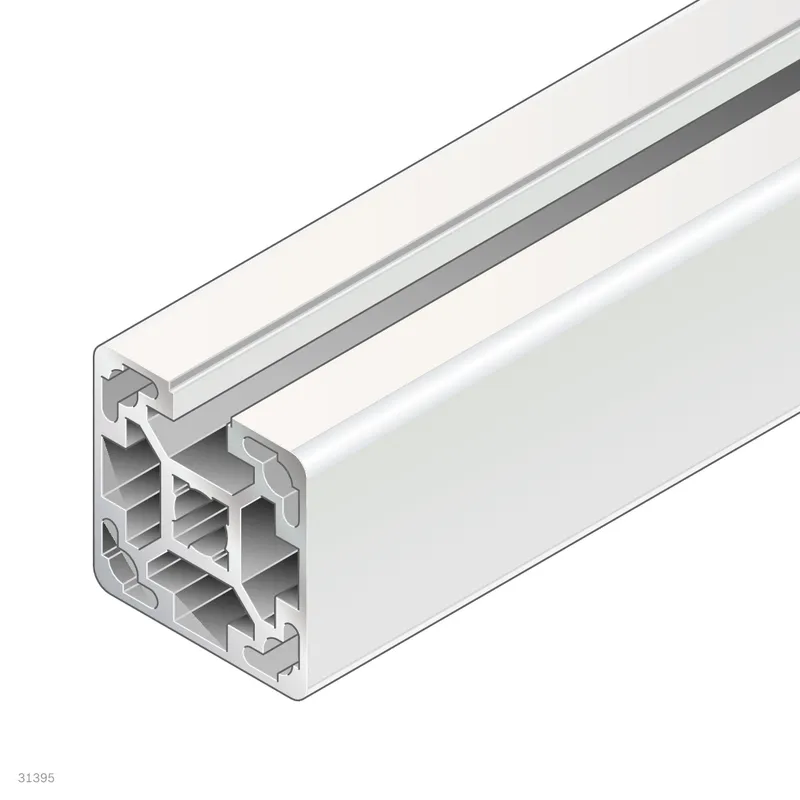

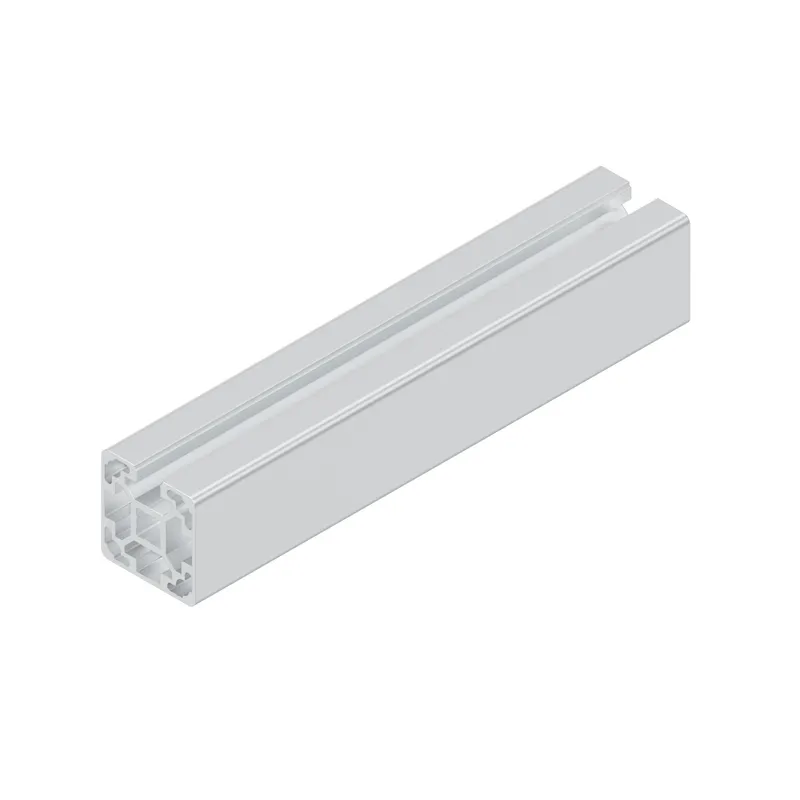

What is the Bosch Rexroth 3842993185?

Strut profile 40x40L 1N

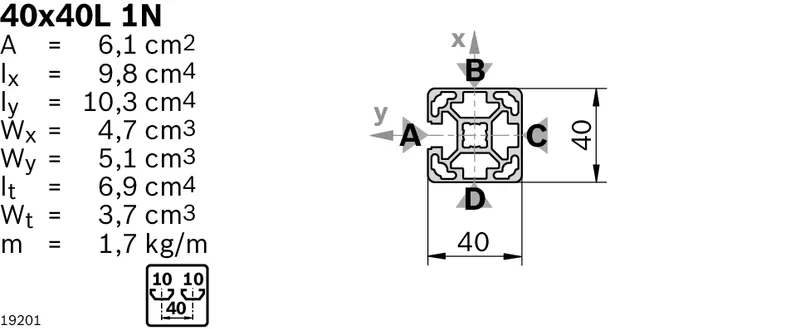

Specifications

Condition on delivery	Variable length
Cross-section	40x40L 1N
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x40
Open slots	1.0
Profile type	1N
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	1.7
Area moment of inertia in x-direction [lx] [cm⁴]	9.8
Area moment of inertia in y-direction [ly] [cm⁴]	10.3
Profile surface [A] [cm²]	6.1
Moment of resistance in the x-direction [Wx] [cm³]	4.7
Moment of resistance in the y-direction [Wy] [cm³]	5.1
Torsional moment of inertia [It] [cm⁴]	6.9
Moment of torsion resistance [Wt] [cm³]	3.7
Material	Aluminum, anodized
Recommended accessories	Cover cap 40x40, black; Cover cap 40x40, signal gray; Cover cap with hole 40x40, black; Cover cap with hole 40x40, signal gray
Weight [kg]	0
