Bosch Rexroth 3842993145

STRUT PROFILE 40X160L M12/M12

MPN: 3842993145
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993145?

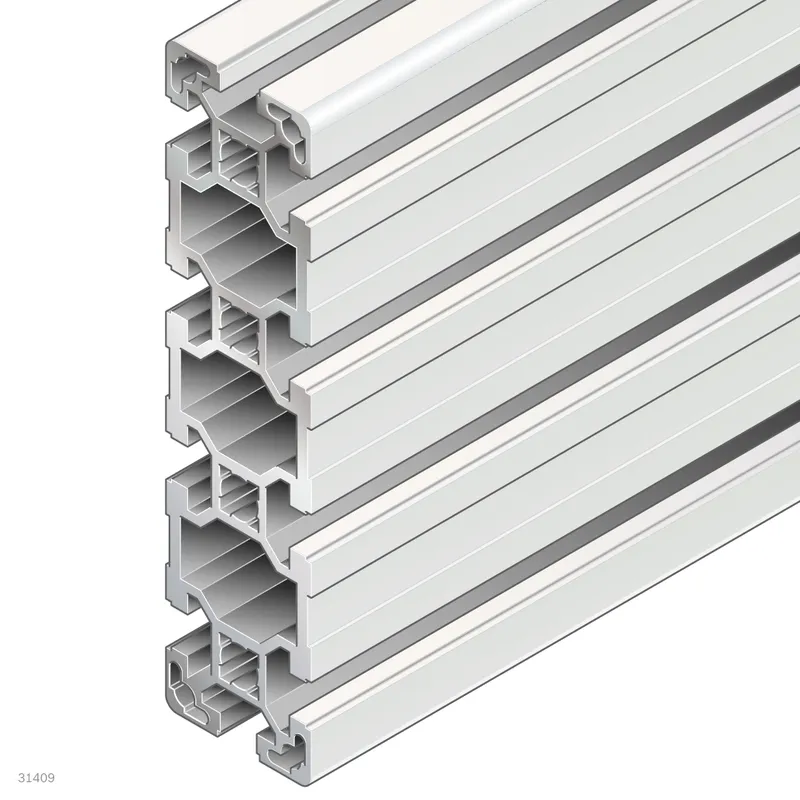

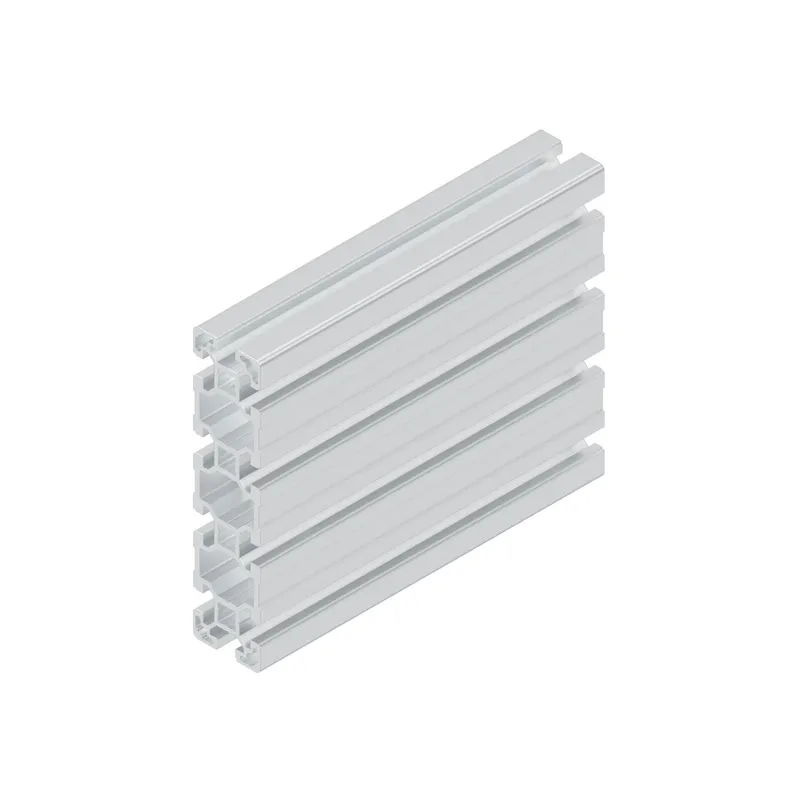

Strut profile 40x160L M12/M12

Specifications

Condition on delivery	Profile finishing

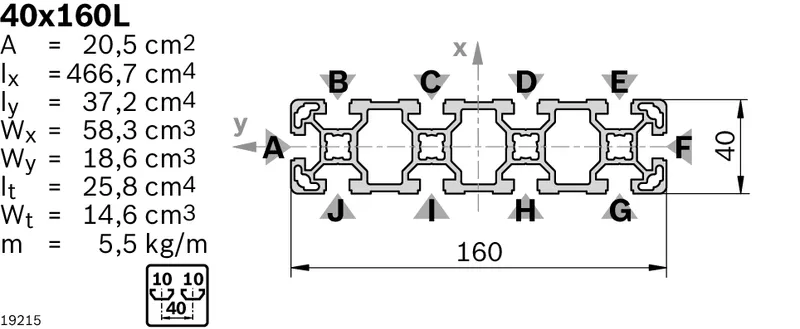

Cross-section	40x160L
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x160
Open slots	10.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	110
Packaging unit	1
Mass [m] [kg]	5.5
Area moment of inertia in x-direction [lx] [cm⁴]	466.7
Area moment of inertia in y-direction [ly] [cm⁴]	37.2
Profile surface [A] [cm²]	20.5
Moment of resistance in the x-direction [Wx] [cm³]	58.3
Moment of resistance in the y-direction [Wy] [cm³]	18.6
Torsional moment of inertia [It] [cm⁴]	25.8
Moment of torsion resistance [Wt] [cm³]	14.6
Profile adaption	D17: in slots B/J, C/I, D/H, E/G; M12: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 40x80, black; Cover cap 40x80, signal gray
Weight [kg]	0
