Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Dynamic torsional moment load capacity Mt [Nm] | Outer diameter D [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R109923079 | 30.0 | 6000.0 | 37.0 | 47.0 | 0 |
| R109923089 | 30.0 | 6000.0 | 37.0 | 47.0 | 0 |
| R109923085 | 30.0 | 6000.0 | 37.0 | 47.0 | 7 |
| R109923080 | 30.0 | 6000.0 | 37.0 | 47.0 | 6.4 |
| R109923088 | 30.0 | 6000.0 | 37.0 | 47.0 | 0.1 |
| R109923087 | 30.0 | 6000.0 | 37.0 | 47.0 | 0.1 |
| R109923069 | 30.0 | 6000.0 | 37.0 | 47.0 | 0 |
| R109923086 | 30.0 | 6000.0 | 37.0 | 47.0 | 0 |
| R109922579 | 25.0 | 4900.0 | 24.0 | 40.0 | 0 |
| R109922589 | 25.0 | 4900.0 | 24.0 | 40.0 | 0 |
| R109922585 | 25.0 | 4900.0 | 24.0 | 40.0 | 0.1 |
| R109922580 | 25.0 | 4900.0 | 24.0 | 40.0 | 3.8 |
| R109922588 | 25.0 | 4900.0 | 24.0 | 40.0 | 0.1 |
| R109922587 | 25.0 | 4900.0 | 24.0 | 40.0 | 5 |
| R109922569 | 25.0 | 4900.0 | 24.0 | 40.0 | 0 |
| R109922586 | 25.0 | 4900.0 | 24.0 | 40.0 | 0 |
| R109922079 | 20.0 | 2500.0 | 12.0 | 32.0 | 0 |

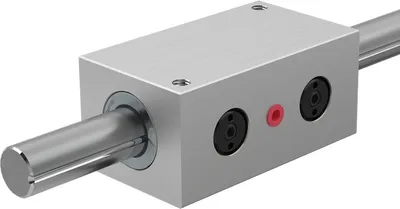

| R109922089 | 20.0 | 2500.0 | 12.0 | 32.0 | 0 |
| R109922085 | 20.0 | 2500.0 | 12.0 | 32.0 | 3.69 |
| R109922080 | 20.0 | 2500.0 | 12.0 | 32.0 | 2.08 |
| R109922087 | 20.0 | 2500.0 | 12.0 | 32.0 | 1.25 |
| R109922086 | 20.0 | 2500.0 | 12.0 | 32.0 | 0 |
| R109921679 | 16.0 | 1260.0 | 5.5 | 26.0 | 0 |
| R109921689 | 16.0 | 1260.0 | 5.5 | 26.0 | 0 |
Common to all listed parts
| Format of linear bushings | T - Tandem |
| Series | Torque |
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
