Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Dimension L [mm] |
|---|---|---|---|---|---|
| R102925634 | 40.0 | 7260.0 | 1.59 | 7440.0 | 125 |

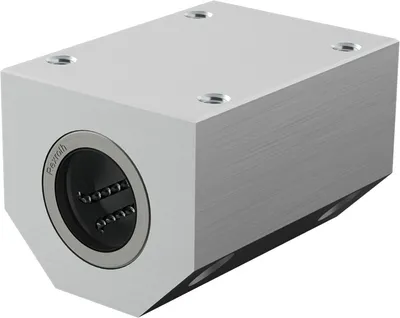

| R102925644 | 40.0 | 10360.0 | 1.59 | 9300.0 | 125 |
| R102925534 | 30.0 | 4385.0 | 0.84 | 4460.0 | 105 |
| R102925544 | 30.0 | 6250.0 | 0.85 | 5580.0 | 105 |
| R102925434 | 25.0 | 3330.0 | 0.58 | 3120.0 | 85 |
| R102925444 | 25.0 | 4760.0 | 0.58 | 3900.0 | 85 |
| R102925334 | 20.0 | 1610.0 | 0.34 | 1440.0 | 65 |
| R102925344 | 20.0 | 2290.0 | 0.33 | 1800.0 | 65 |
| R102925234 | 16.0 | 1180.0 | 0.24 | 920.0 | 65 |
| R102925244 | 16.0 | 1700.0 | 0.24 | 1140.0 | 65 |
| R102925134 | 12.0 | 920.0 | 0.18 | 780.0 | 60 |
| R102925144 | 12.0 | 1310.0 | 0.18 | 980.0 | 60 |
| R102725634 | 40.0 | 4470.0 | 0.76 | 3720.0 | 60 |
| R102725644 | 40.0 | 6380.0 | 0.76 | 4650.0 | 60 |
| R102725534 | 30.0 | 2700.0 | 0.41 | 2230.0 | 50 |
| R102725544 | 30.0 | 3850.0 | 0.41 | 2790.0 | 50 |
| R102725434 | 25.0 | 2050.0 | 0.28 | 1560.0 | 40 |
| R102725444 | 25.0 | 2930.0 | 0.28 | 1950.0 | 40 |
| R102725334 | 20.0 | 990.0 | 0.15 | 720.0 | 30 |
| R102725344 | 20.0 | 1410.0 | 0.16 | 900.0 | 30 |
| R102725234 | 16.0 | 730.0 | 0.12 | 460.0 | 30 |
| R102725244 | 16.0 | 1050.0 | 0.12 | 570.0 | 30 |

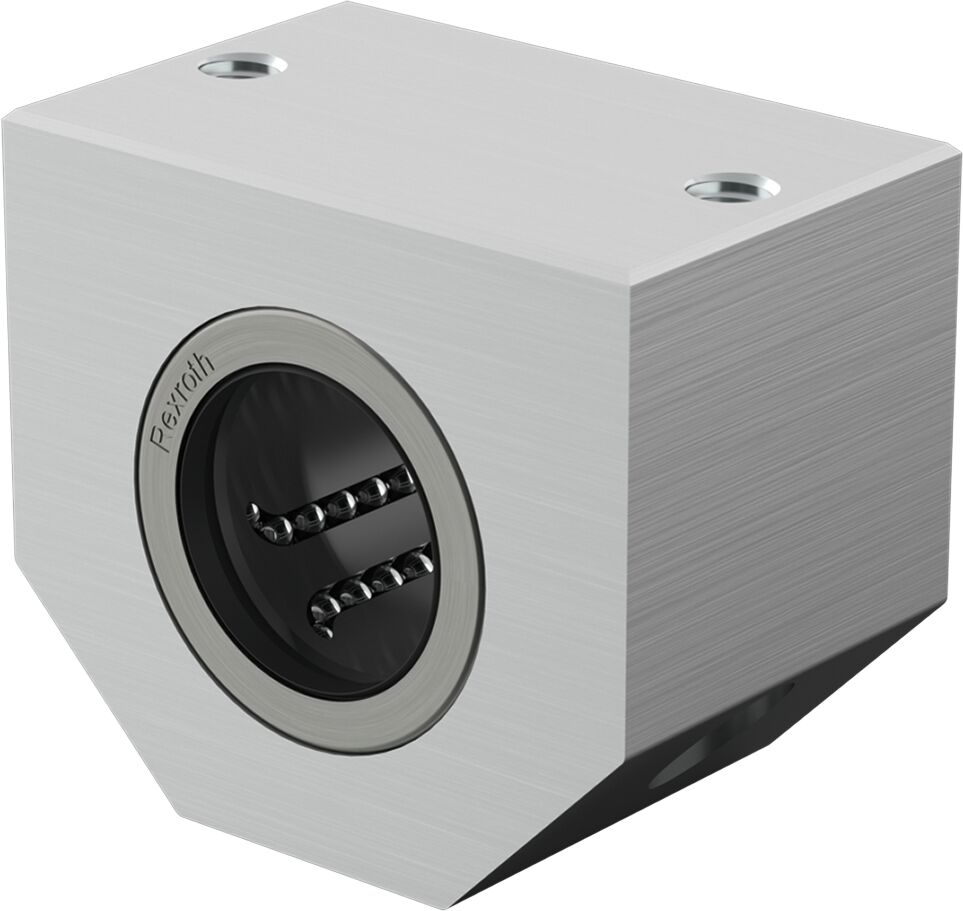

| R102725134 | 12.0 | 570.0 | 0.09 | 390.0 | 28 |
| R102725144 | 12.0 | 810.0 | 0.09 | 490.0 | 28 |
Common to all listed parts
| Format of linear bushings | – Closed |
| Series | Compact (eLINE) |
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
