Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Dynamic torsional moment load capacity Mt [Nm] | Outer diameter D [mm] | Weight [kg] |
|---|---|---|---|---|---|

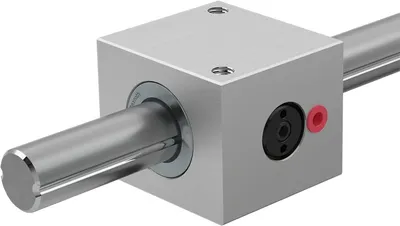

| R109855085 | 50.0 | 9250.0 | 167.0 | 75.0 | 0.1 |
| R109855080 | 50.0 | 9250.0 | 167.0 | 75.0 | 0.1 |
| R109855088 | 50.0 | 9250.0 | 167.0 | 75.0 | 0.1 |
| R109855087 | 50.0 | 9250.0 | 167.0 | 75.0 | 0.1 |
| R109855069 | 50.0 | 9250.0 | 167.0 | 75.0 | 0 |
| R109855086 | 50.0 | 9250.0 | 167.0 | 75.0 | 0 |
| R109854079 | 40.0 | 6320.0 | 86.0 | 62.0 | 0 |
| R109854089 | 40.0 | 6320.0 | 86.0 | 62.0 | 0 |
| R109854085 | 40.0 | 6320.0 | 86.0 | 62.0 | 10.8 |
| R109854088 | 40.0 | 6320.0 | 86.0 | 62.0 | 0.1 |
| R109854087 | 40.0 | 6320.0 | 86.0 | 62.0 | 0.1 |
| R109854069 | 40.0 | 6320.0 | 86.0 | 62.0 | 0 |
| R109854086 | 40.0 | 6320.0 | 86.0 | 62.0 | 0 |
| R109853079 | 30.0 | 3680.0 | 37.0 | 47.0 | 0 |
| R109853089 | 30.0 | 3680.0 | 37.0 | 47.0 | 0 |
| R109853085 | 30.0 | 3680.0 | 37.0 | 47.0 | 0.1 |
| R109853080 | 30.0 | 3680.0 | 37.0 | 47.0 | 4.5 |
| R109853088 | 30.0 | 3680.0 | 37.0 | 47.0 | 0.1 |
| R109853087 | 30.0 | 3680.0 | 37.0 | 47.0 | 0.1 |
| R109853069 | 30.0 | 3680.0 | 37.0 | 47.0 | 0 |
| R109853086 | 30.0 | 3680.0 | 37.0 | 47.0 | 0 |
| R109852579 | 25.0 | 3030.0 | 24.0 | 40.0 | 0 |
| R109852589 | 25.0 | 3030.0 | 24.0 | 40.0 | 0 |
| R109852585 | 25.0 | 3030.0 | 24.0 | 40.0 | 4.87 |
Common to all listed parts
| Series | Torque |
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
