Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Dynamic torsional moment load capacity Mt [Nm] | Outer diameter D [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R109852580 | 25.0 | 3030.0 | 24.0 | 40.0 | 3.13 |
| R109852588 | 25.0 | 3030.0 | 24.0 | 40.0 | 0.1 |
| R109852587 | 25.0 | 3030.0 | 24.0 | 40.0 | 0.1 |
| R109852569 | 25.0 | 3030.0 | 24.0 | 40.0 | 0 |
| R109852586 | 25.0 | 3030.0 | 24.0 | 40.0 | 0 |

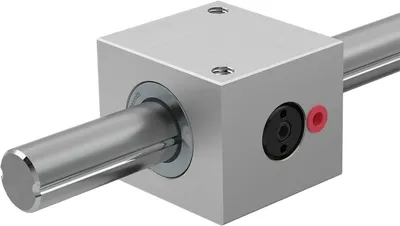

| R109852079 | 20.0 | 1550.0 | 12.0 | 32.0 | 0 |
| R109852089 | 20.0 | 1550.0 | 12.0 | 32.0 | 0 |
| R109852085 | 20.0 | 1550.0 | 12.0 | 32.0 | 3.35 |
| R109852080 | 20.0 | 1550.0 | 12.0 | 32.0 | 2.13 |
| R109852088 | 20.0 | 1550.0 | 12.0 | 32.0 | 0.1 |
| R109852087 | 20.0 | 1550.0 | 12.0 | 32.0 | 1.2 |
| R109852086 | 20.0 | 1550.0 | 12.0 | 32.0 | 0 |

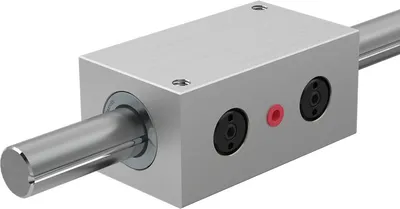

| R109925079 | 50.0 | 15000.0 | 167.0 | 75.0 | 0 |
| R109925089 | 50.0 | 15000.0 | 167.0 | 75.0 | 0 |
| R109925085 | 50.0 | 15000.0 | 167.0 | 75.0 | 22 |
| R109925069 | 50.0 | 15000.0 | 167.0 | 75.0 | 0 |
| R109925086 | 50.0 | 15000.0 | 167.0 | 75.0 | 0 |
| R109924079 | 40.0 | 10200.0 | 86.0 | 62.0 | 0 |
| R109924089 | 40.0 | 10200.0 | 86.0 | 62.0 | 0 |
| R109924085 | 40.0 | 10200.0 | 86.0 | 62.0 | 14 |
| R109924088 | 40.0 | 10200.0 | 86.0 | 62.0 | 0.1 |
| R109924087 | 40.0 | 10200.0 | 86.0 | 62.0 | 0.1 |
| R109924069 | 40.0 | 10200.0 | 86.0 | 62.0 | 0 |
| R109924086 | 40.0 | 10200.0 | 86.0 | 62.0 | 0 |
Common to all listed parts
| Series | Torque |
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
