What is the Bosch Rexroth R109922589?

Linear set (aluminum)

2 torque-resistant LB, tandem

Ball guide grooves = 1

Shaft diameter d = 25

Shaft included

L = shaft length to specification (cut)

Without seal

Version: Standard

Lightweight precision tandem housing (aluminum)

Precision steel shaft with one ball guide groove

Two torque-resistant linear bushings

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Relubricatable

Specifications

Specifications

Shaft diameter d [mm]25.0
Format of linear bushingsT - Tandem
SeriesTorque
TypeLinear set
Dynamic load capacity C [N]4900.0
Note: dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Dynamic torsional moment load capacity Mt [Nm]24.0
Outer diameter D [mm]40.0
Mass m (kg/m) [kg/m]3.8
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Weight [kg]0
Static load capacity C0 [N]4360.0
Note: static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

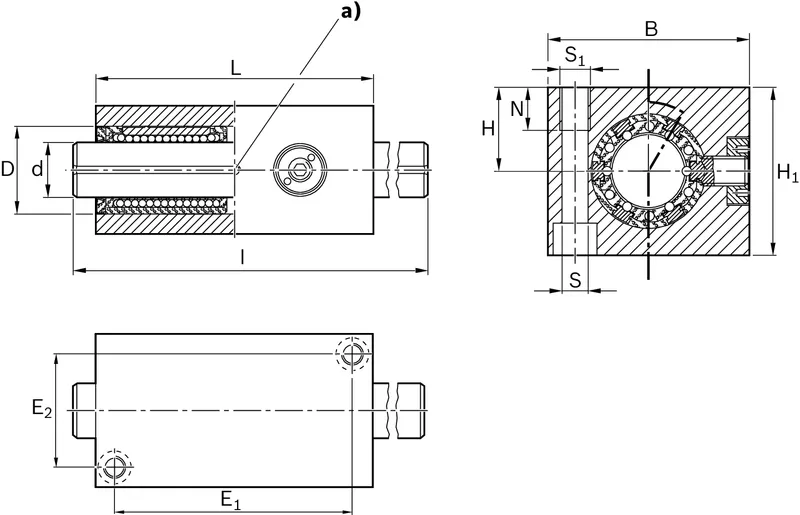

Dimension B (profiled rail systems) [mm]74
Dimension D [mm]40
Dimension E1 [mm]110
Dimension E2 [mm]54
Dimension H [mm]30.0
Dimension H1 (profiled rail systems) [mm]60
Dimension L [mm]130
Dimension N [mm]15
Dimension S [mm]8.4
