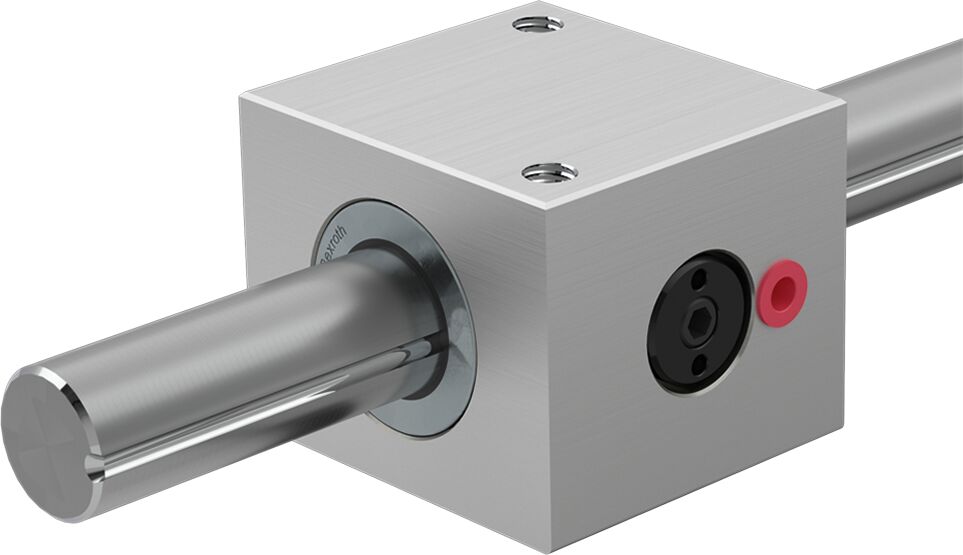

Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Dynamic torsional moment load capacity Mt [Nm] | Outer diameter D [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R109824088 | 40.0 | 6320.0 | 53.0 | 62.0 | 0.45 |
| R109824087 | 40.0 | 6320.0 | 53.0 | 62.0 | 0.1 |
| R109824069 | 40.0 | 6320.0 | 53.0 | 62.0 | 0 |
| R109824086 | 40.0 | 6320.0 | 53.0 | 62.0 | 0 |
| R109823079 | 30.0 | 3680.0 | 23.0 | 47.0 | 0 |
| R109823089 | 30.0 | 3680.0 | 23.0 | 47.0 | 0 |
| R109823085 | 30.0 | 3680.0 | 23.0 | 47.0 | 0.1 |
| R109823080 | 30.0 | 3680.0 | 23.0 | 47.0 | 5.4 |
| R109823088 | 30.0 | 3680.0 | 23.0 | 47.0 | 0.1 |
| R109823087 | 30.0 | 3680.0 | 23.0 | 47.0 | 7.85 |
| R109823069 | 30.0 | 3680.0 | 23.0 | 47.0 | 0 |
| R109823086 | 30.0 | 3680.0 | 23.0 | 47.0 | 0 |
| R109822579 | 25.0 | 3030.0 | 15.0 | 40.0 | 0 |
| R109822589 | 25.0 | 3030.0 | 15.0 | 40.0 | 0 |
| R109822585 | 25.0 | 3030.0 | 15.0 | 40.0 | 16.8 |
| R109822580 | 25.0 | 3030.0 | 15.0 | 40.0 | 3.14 |
| R109822588 | 25.0 | 3030.0 | 15.0 | 40.0 | 0.1 |
| R109822587 | 25.0 | 3030.0 | 15.0 | 40.0 | 0.1 |
| R109822569 | 25.0 | 3030.0 | 15.0 | 40.0 | 0 |
| R109822586 | 25.0 | 3030.0 | 15.0 | 40.0 | 0 |
| R109822079 | 20.0 | 1550.0 | 7.5 | 32.0 | 0 |
| R109822089 | 20.0 | 1550.0 | 7.5 | 32.0 | 0 |
| R109822085 | 20.0 | 1550.0 | 7.5 | 32.0 | 3.29 |
| R109822080 | 20.0 | 1550.0 | 7.5 | 32.0 | 2.13 |
Common to all listed parts
| Series | Torque |
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
