LINEAR-SET LSADR1T-30-WV-2000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R109923088 be shipped?
R109923088 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R109923088 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R109923088 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R109923088, subject to availability and destination.

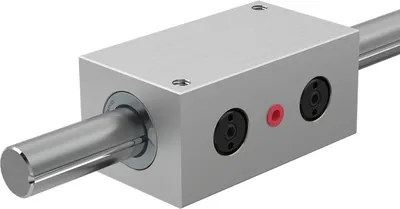

Linear set (aluminum)
2 torque-resistant LB, tandem
Ball guide grooves = 1
Shaft diameter d = 30
Shaft included
2000 = standard length as per table
Without seal
Version: Standard
Lightweight precision tandem housing (aluminum)
Precision steel shaft with one ball guide groove
Two torque-resistant linear bushings
Torque-transmitting, hardened steel bearing plates set to zero clearance ex works
Stability against cocking loads
External seals
Relubricatable
Specifications
Specifications
| Shaft diameter d [mm] | 30.0 |
| Format of linear bushings | T - Tandem |
| Series | Torque |
| Type | Linear set |
| Dynamic load capacity C [N] | 6000.0 |
| Note: dynamic load capacity C | Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 37.0 |
| Outer diameter D [mm] | 47.0 |
| Mass m (kg/m) [kg/m] | 5.5 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.1 |
| Static load capacity C0 [N] | 5580.0 |
| Note: static load capacity C0 | Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |

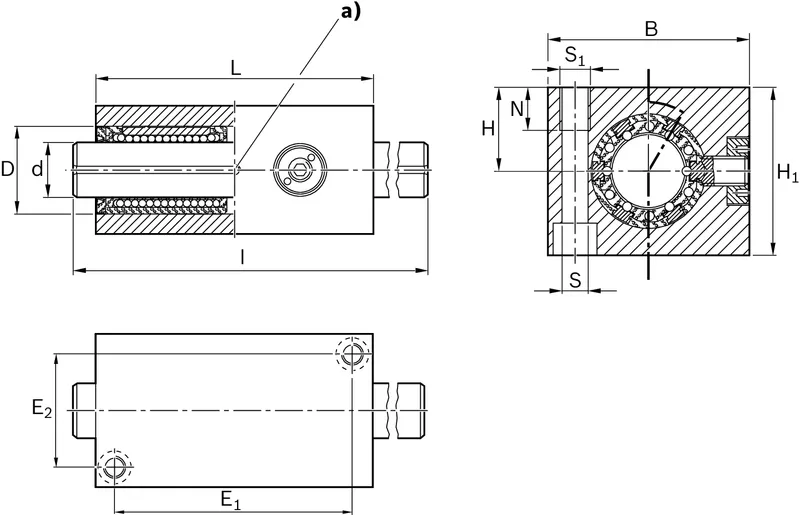

| Dimension B (profiled rail systems) [mm] | 84 |
| Dimension D [mm] | 47 |
| Dimension E1 [mm] | 130 |
| Dimension E2 [mm] | 62 |
| Dimension H [mm] | 35.0 |
| Dimension H1 (profiled rail systems) [mm] | 70 |
| Dimension L [mm] | 152 |
| Dimension N [mm] | 18 |
| Dimension S [mm] | 10.5 |
| Standard length l of the shaft footnote [mm] | R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm |
| Standard length l of the shaft [mm] | 600 |
