Bosch Rexroth R109922087

LINEAR-SET LSADR1T-20-WV-1200

MPN
R109922087
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

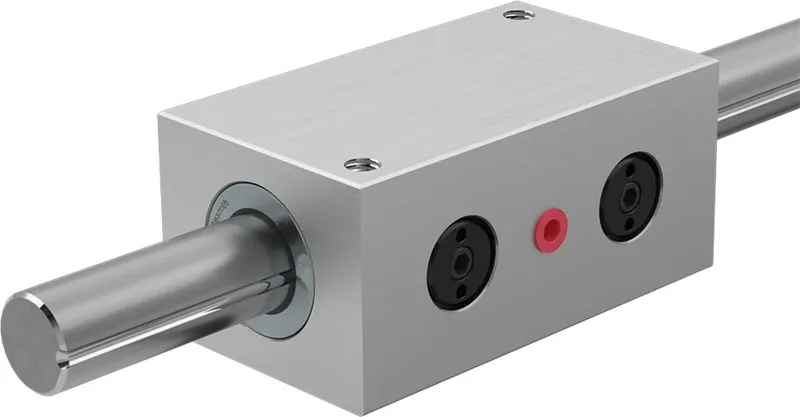

What is the Bosch Rexroth R109922087?

Linear set (aluminum)

2 torque-resistant LB, tandem

Ball guide grooves = 1

Shaft diameter d = 12

Shaft included

1200 = standard length as per table

Without seal

Version: Standard

Lightweight precision tandem housing (aluminum)

Precision steel shaft with one ball guide groove

Two torque-resistant linear bushings

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Relubricatable

Specifications

Specifications

Shaft diameter d [mm]20.0
Format of linear bushingsT - Tandem
SeriesTorque
TypeLinear set
Dynamic load capacity C [N]2500.0
Note: dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Dynamic torsional moment load capacity Mt [Nm]12.0
Outer diameter D [mm]32.0
Mass m (kg/m) [kg/m]2.45
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Weight [kg]1.25
Static load capacity C0 [N]2100.0
Note: static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

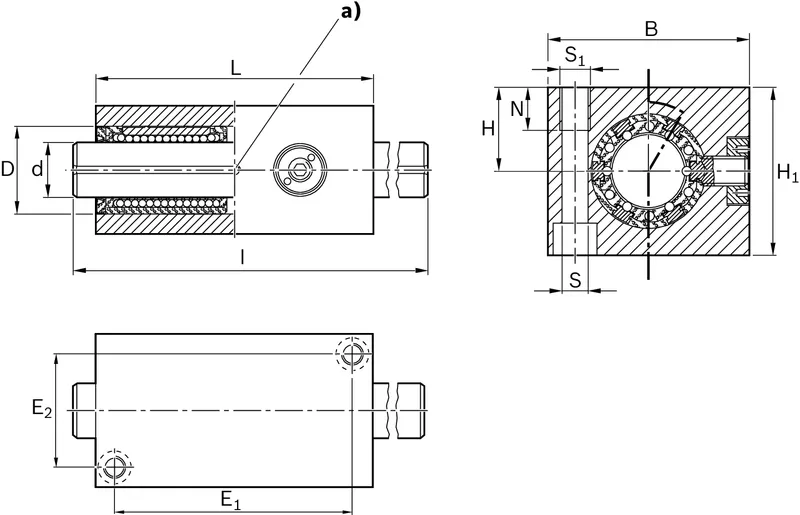

Dimension B (profiled rail systems) [mm]60
Dimension D [mm]32
Dimension E1 [mm]88
Dimension E2 [mm]44
Dimension H [mm]25.0
Dimension H1 (profiled rail systems) [mm]50
Dimension L [mm]104
Dimension N [mm]12
Dimension S [mm]6.6
Standard length l of the shaft footnote [mm]R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]500
