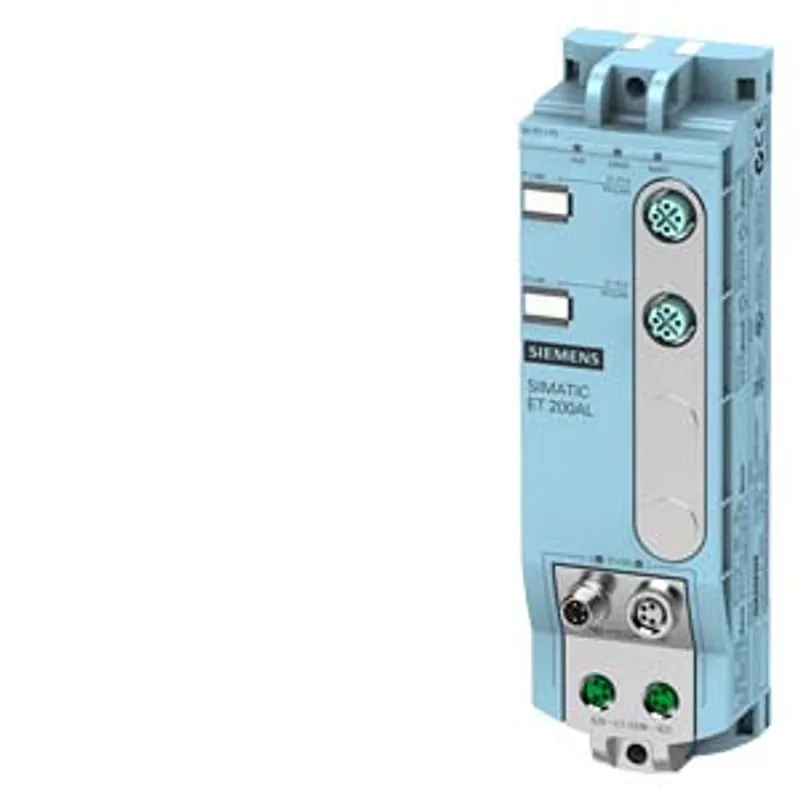

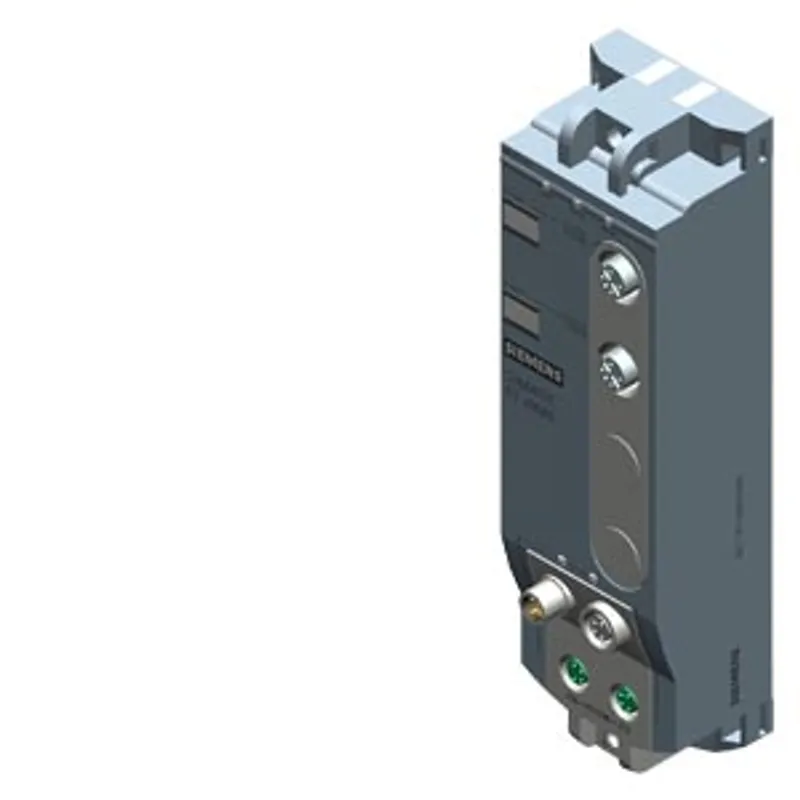

Siemens 6ES7157-1AB00-0AB0

SIMATIC ET 200AL, PROFINET interface module IM 157-1 PN, Degree of protection IP67

MPN: 6ES7157-1AB00-0AB0
Category: IM 157-1 PN

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7157-1AB00-0AB0?

SIMATIC ET 200AL, PROFINET interface module IM 157-1 PN, Degree of protection IP67

Specifications

General information

Product type designation	IM 157-1 PN
HW functional status	FS02
Firmware version	V1.0.x
Vendor identification (VendorID)	002AH
Product function — I&M data	Yes; I&M0 to I&M4
Product function — Isochronous mode	No
Product function — IRT	Yes
Engineering with — STEP 7 TIA Portal configurable/integrated from version	STEP 7 V13 SP1 or higher
Engineering with — STEP 7 configurable/integrated from version	From V5.5 SP4 Hotfix 3
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3.1

Configuration control

via dataset

Yes

Supply voltage

power supply according to NEC Class 2 required	No
Load voltage 1L+ — Rated value (DC)	24 V
Load voltage 1L+ — permissible range, lower limit (DC)	20.4 V
Load voltage 1L+ — permissible range, upper limit (DC)	28.8 V
Load voltage 1L+ — Reverse polarity protection	Yes; against destruction

Input current

Current consumption (rated value)	100 mA
from load voltage 1L+ (unswitched voltage)	4 A; Maximum value
from load voltage 2L+, max.	4 A; Maximum value

Power loss

Power loss, typ.

2.9 W

Address area

Address space per station — Address space per station, max.

1 430 byte

Interfaces

Number of PROFINET interfaces

1. Interface

Interface type	PROFINET
Interface types — M12 port	Yes; 2x M12 D-coded
Interface types — integrated switch	Yes
Protocols — PROFINET IO device	Yes
Protocols — Open IE communication	Yes
PROFINET IO Device — Services — IRT	Yes; 250 µs, 500 µs, 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms
PROFINET IO Device — Services — PROFIenergy	Yes
PROFINET IO Device — Services — Prioritized startup	Yes
PROFINET IO Device — Services — Shared device	Yes
PROFINET IO Device — Services — Number of IO Controllers with shared device, max.	4

Interface types

M12 port — Transmission procedure	PROFINET with 100 Mbit/s full duplex (100BASE-TX)
M12 port — 10 Mbps	Yes; for Ethernet services
M12 port — 100 Mbps	Yes; PROFINET with 100 Mbit/s full duplex (100BASE-TX)
M12 port — Autonegotiation	Yes
M12 port — Autocrossing	Yes

Protocols

Supports protocol for PROFINET IO	Yes
PROFIsafe	No
PROFIBUS	No
EtherNet/IP	No
Redundancy mode — PROFINET system redundancy (S2)	No
Redundancy mode — PROFINET system redundancy (R1)	No
Redundancy mode — Media redundancy — MRP	Yes
Redundancy mode — Media redundancy — MRPD	Yes
Open IE communication — TCP/IP	Yes
Open IE communication — SNMP	Yes
Open IE communication — LLDP	Yes

Interrupts/diagnostics/status information

Diagnostics function	Yes
Alarms — Diagnostic alarm	Yes
Diagnostics indication LED — RUN LED	Yes; green LED
Diagnostics indication LED — ERROR LED	Yes; red LED
Diagnostics indication LED — MAINT LED	Yes; Yellow LED
Diagnostics indication LED — Connection display LINK TX/RX	Yes; 2x green LED

Potential separation

between the load voltages	Yes
between PROFINET and all other circuits	Yes

Isolation

Isolation tested with

707 V DC (type test)

Degree and class of protection

IP degree of protection

IP65/67

Standards, approvals, certificates

Suitable for safety-related tripping of standard modules	Yes; from FS01
Highest safety class achievable for safety-related tripping of standard modules — Performance level according to ISO 13849-1	PL d
Highest safety class achievable for safety-related tripping of standard modules — Category according to ISO 13849-1	Cat. 3
Highest safety class achievable for safety-related tripping of standard modules — SIL acc. to IEC 62061	SIL 2
Highest safety class achievable for safety-related tripping of standard modules — remark on safety-oriented shutdown	https://support.industry.siemens.com/cs/de/en/view/39198632

Security

PROFINET Security Class

Ambient conditions

Ambient temperature during operation — min.	-25 °C
Ambient temperature during operation — max.	55 °C
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Up to max. 5 000 m, at installation height > 2 000 m additional restrictions

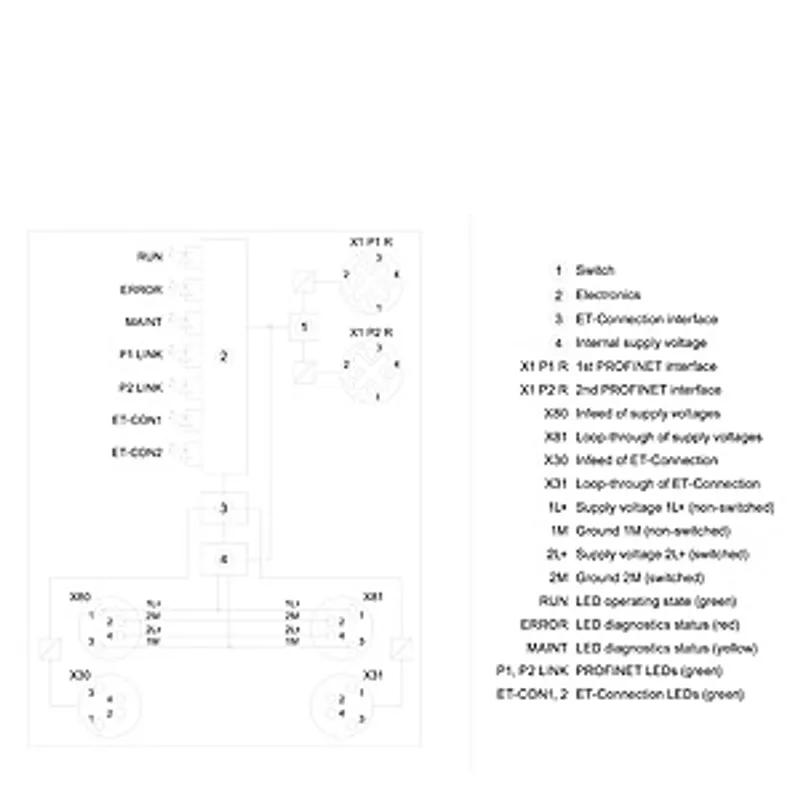

Connection method

Design of electrical connection for supply voltage	M8, 4-pole
ET-Connection — ET-Connection	M8, 4-pin, shielded

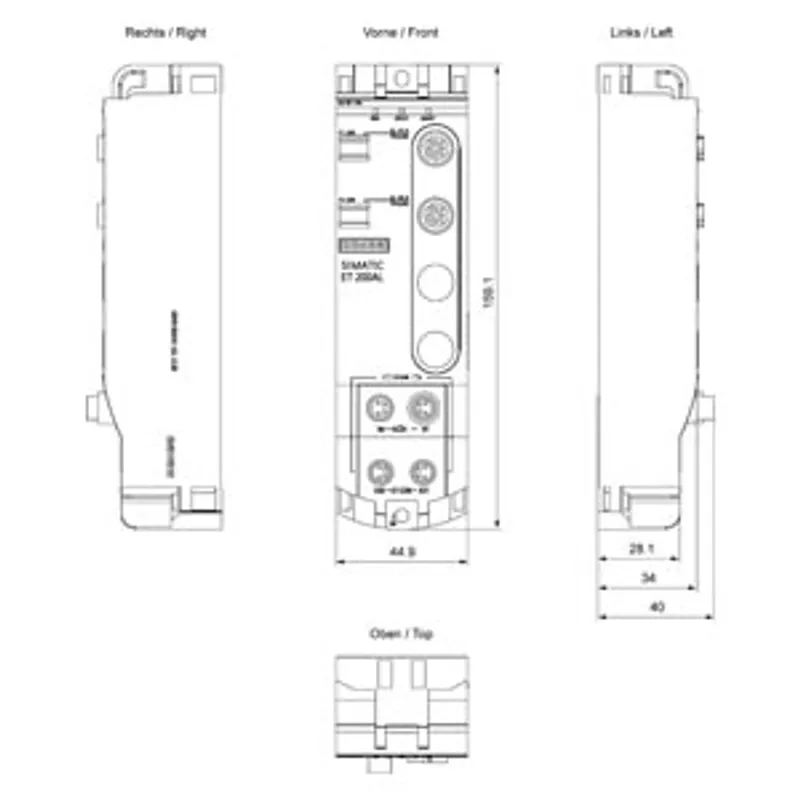

Dimensions

Width	45 mm
Height	159 mm
Depth	40 mm

Weights

Weight, approx.

263 g
