Siemens 6ES7155-6AU30-0CN0
- MPN
- 6ES7155-6AU30-0CN0
- Category
- IM 155-6
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

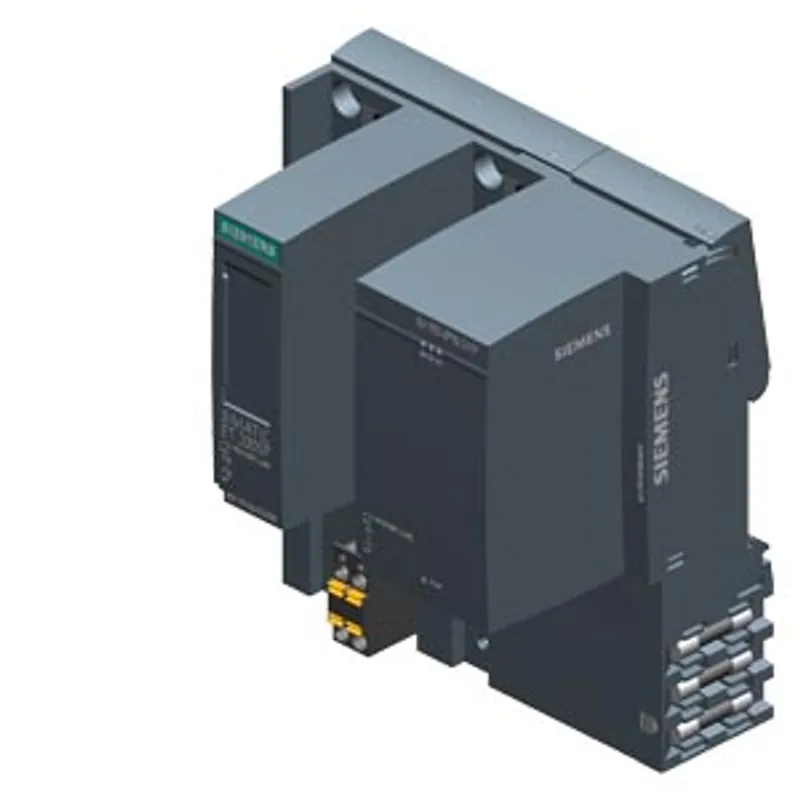

What is the Siemens 6ES7155-6AU30-0CN0?
SIMATIC ET 200SP, PROFINET, 3-port interface module, IM 155-6PN/3 High Feature, 2 slots for BusAdapter, max. 64 I/O modules and 16 ET 200AL modules, S2 redundancy, multi-hotswap, 0.25 ms, isochronous mode, optional PN strain relief, including server module
Specifications
General information
| Product type designation | IM 155-6 PN/3 HF |
| HW functional status | From FS02 |
| Firmware version | V4.2 |
| Firmware version — FW update possible | Yes |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| Product function — Isochronous mode | Yes |
| Product function — Tool changer | Yes; Docking station and docking unit |
| Product function — Local coupling, IO data | Yes |
| Product function — Local coupling, IO data — Number of coupling modules | 16 |
| Product function — Local coupling, IO data — Number of coupling submodules per module | 4 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V15.1 |
| Engineering with — STEP 7 configurable/integrated from version | use GSD file |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.45 |
Configuration control
| via dataset | Yes |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 10 ms |
Input current
| Current consumption (rated value) | 175 mA; At 24 V, 2 slots 2x RJ45 BusAdapter, no I/O modules |
| Current consumption, max. | 950 mA |
| Inrush current, max. | 9 A |
| I²t | 0.34 A²·s |
Power loss
| Power loss, typ. | 4.9 W |
Address area
| Address space per module — Address space per module, max. | 288 byte; For input and output data respectively |
| Address space per station — Address space per station, max. | 1 440 byte |
Hardware configuration
| Rack — Quantity of operable ET 200SP modules, max. | 64 |
| Rack — Quantity of operable ET 200AL modules, max. | 16 |
| Submodules — Number of submodules per station, max. | 256 |
Interfaces
| Transmission procedure | 100BASE-TX |
| Number of PROFINET interfaces | 1; 3 ports (switch) |
1. Interface
| Interface types — RJ 45 (Ethernet) | Yes; with BusAdapter |
| Interface types — Number of ports | 3; with 2 compatible BusAdapters: |
| Interface types — integrated switch | Yes |
| Interface types — BusAdapter (PROFINET) | Yes; BA 2x RJ45, BA 2x FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, BA LC/FC |
| Protocols — PROFINET IO Device | Yes |
| Protocols — Open IE communication | Yes |
| Protocols — Media redundancy | Yes; PROFINET MRP client |
| PROFINET IO Device — Services — IRT | Yes; 250 µs to 4 ms in 125 µs frame |
| PROFINET IO Device — Services — Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device — Services — PROFIenergy | Yes |
| PROFINET IO Device — Services — Prioritized startup | Yes |
| PROFINET IO Device — Services — Shared device | Yes |
| PROFINET IO Device — Services — Number of IO Controllers with shared device, max. | 4 |
Interface types
| RJ 45 (Ethernet) — Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| RJ 45 (Ethernet) — 100 Mbps | Yes |
| RJ 45 (Ethernet) — Autonegotiation | Yes |
| RJ 45 (Ethernet) — Autocrossing | Yes |
Protocols
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | Yes |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| Number of connections — Number of MtM communication relationships/connections, max. | 16 |
| Redundancy mode — PROFINET system redundancy (S2) | Yes; NAP S2 |
| Redundancy mode — PROFINET system redundancy (R1) | No |
| Redundancy mode — H-Sync forwarding | Yes |
| Redundancy mode — Media redundancy — MRP | Yes |
| Redundancy mode — Media redundancy — MRPD | No |
| Open IE communication — TCP/IP | Yes |
| Open IE communication — SNMP | Yes |
| Open IE communication — LLDP | Yes |
Isochronous mode
| Equidistance | Yes |
| shortest clock pulse | 250 µs |
| max. cycle | 4 ms |
| Bus cycle time (TDP), min. | 250 µs |
| Jitter, max. | 1 µs |
Interrupts/diagnostics/status information
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
Potential separation
| between backplane bus and electronics | No |
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | No |
Permissible potential difference
| between different circuits | Safety extra low voltage SELV |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| Network loading class | 2 |
Security
| PROFINET Security Class | 1 |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C; No condensation |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C; No condensation |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity — dew point, min. | -60 °C; suitable for dry room applications |
Connection method
| ET-Connection — via BU/BA Send | Yes; + 16 ET 200AL modules |
Mechanics/material
| Strain relief | Yes; Optional |

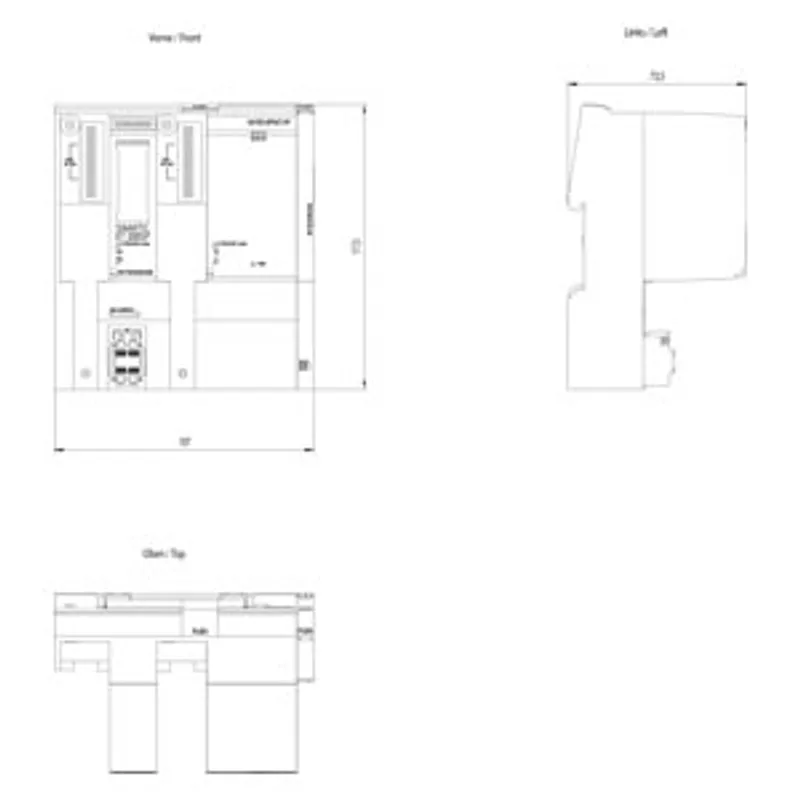

Dimensions
| Width | 100 mm |
| Height | 117 mm |
| Depth | 74 mm |
Weights
| Weight, approx. | 220 g; without BusAdapter |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7155-6AU30-0CN0: frequently asked questions
When can 6ES7155-6AU30-0CN0 be shipped?
6ES7155-6AU30-0CN0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7155-6AU30-0CN0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7155-6AU30-0CN0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7155-6AU30-0CN0, subject to availability and destination.
