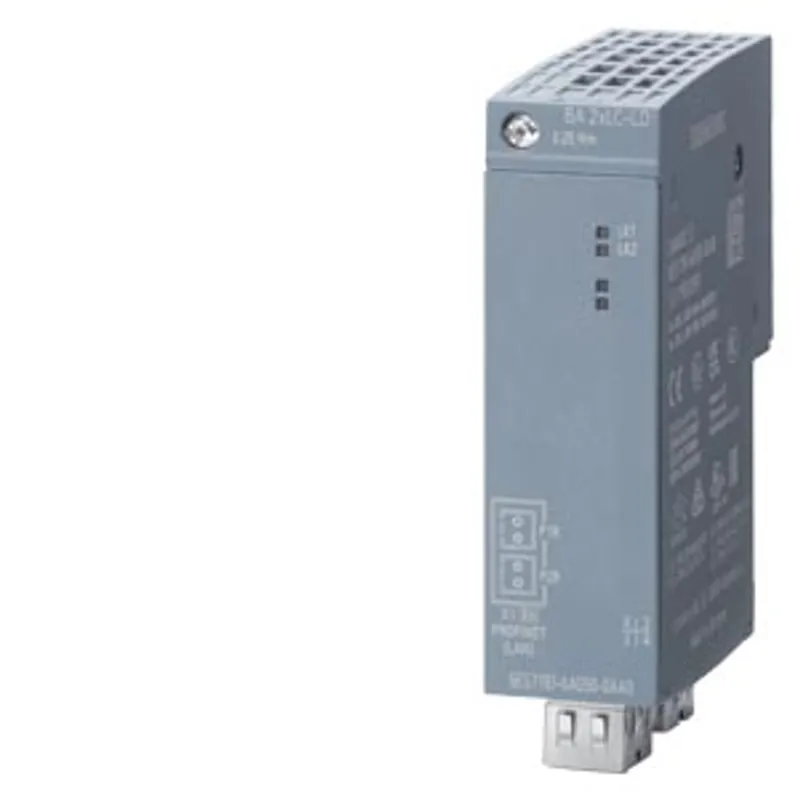

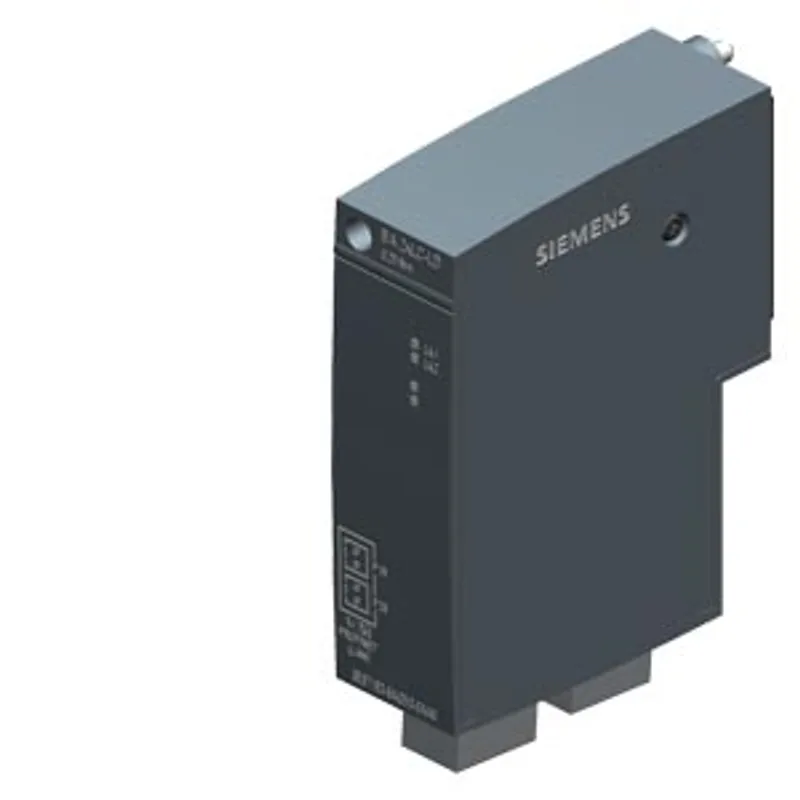

What is the Siemens 6ES7193-6AG50-0AA0?

SIMATIC BusAdapter BA 2xLC-LD 2x LC-LD port, for single-mode fiber-optic cable, up to 20 km

Specifications

General information

Product type designation

BA 2x LC-LD

Interfaces

Number of PROFINET interfaces	1; 2 ports (switch) 2x LC-LD single-mode fiber-optic cable
Supports protocol for PROFINET IO — Number of LC ports	2; wavelength of 1 270 ... 1 380 nm, corresponds to 100BASE-LX
Supports protocol for PROFINET IO — Cable length — single-mode fiber-optic cable 9/125 µm	20 km; 10 km for topology or IRT configuration; min. transmit power -15 dB, min. receiver sensitivity -28 dB

Standards, approvals, certificates

Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	27.1 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	1.35 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	25.7 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.023 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

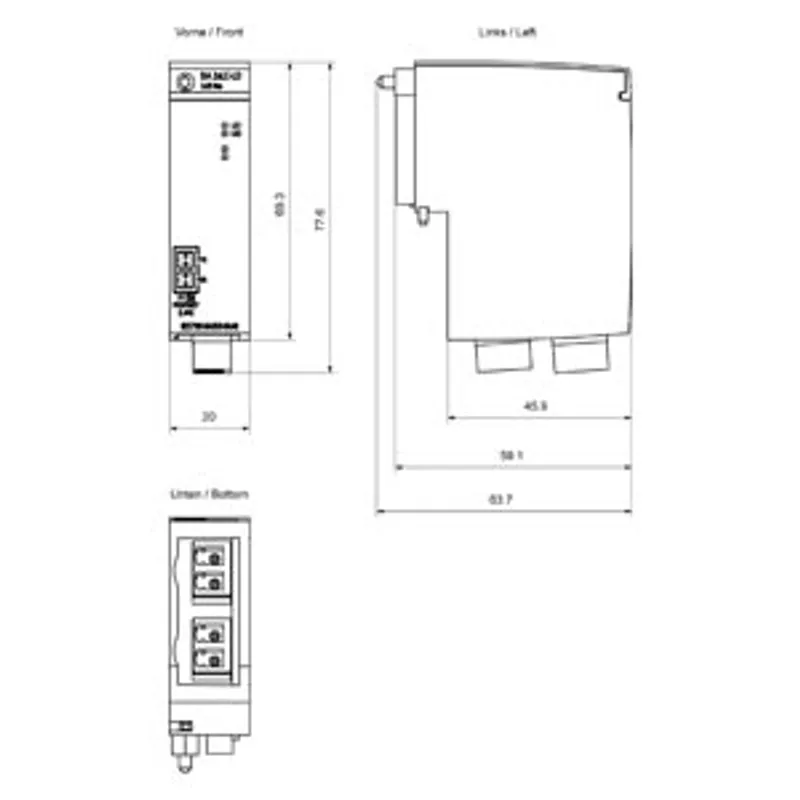

Dimensions

Width	20 mm
Height	69.5 mm
Depth	59 mm

Weights

Weight, approx.

40 g
