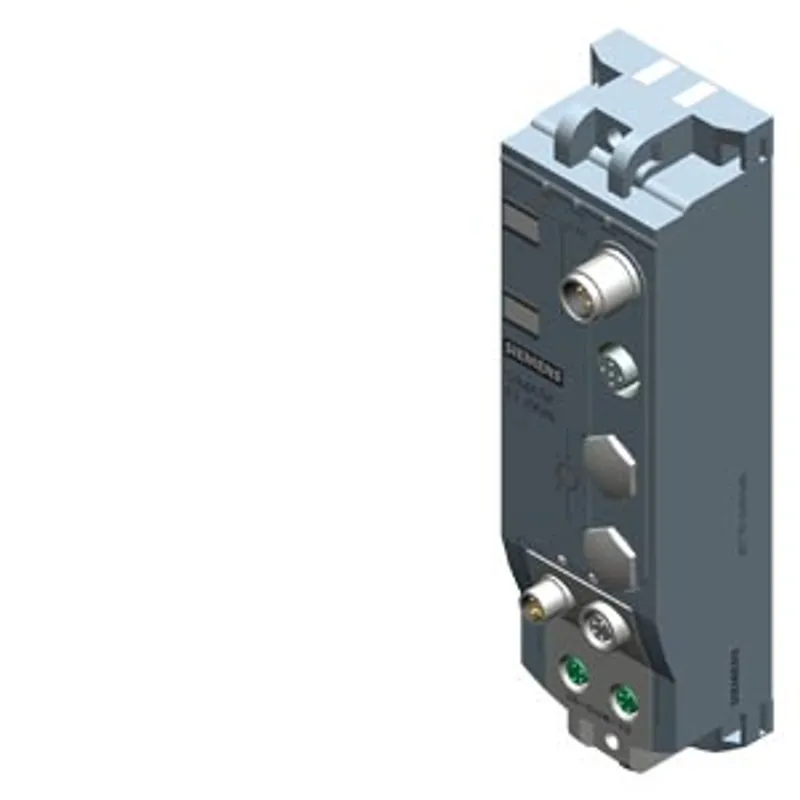

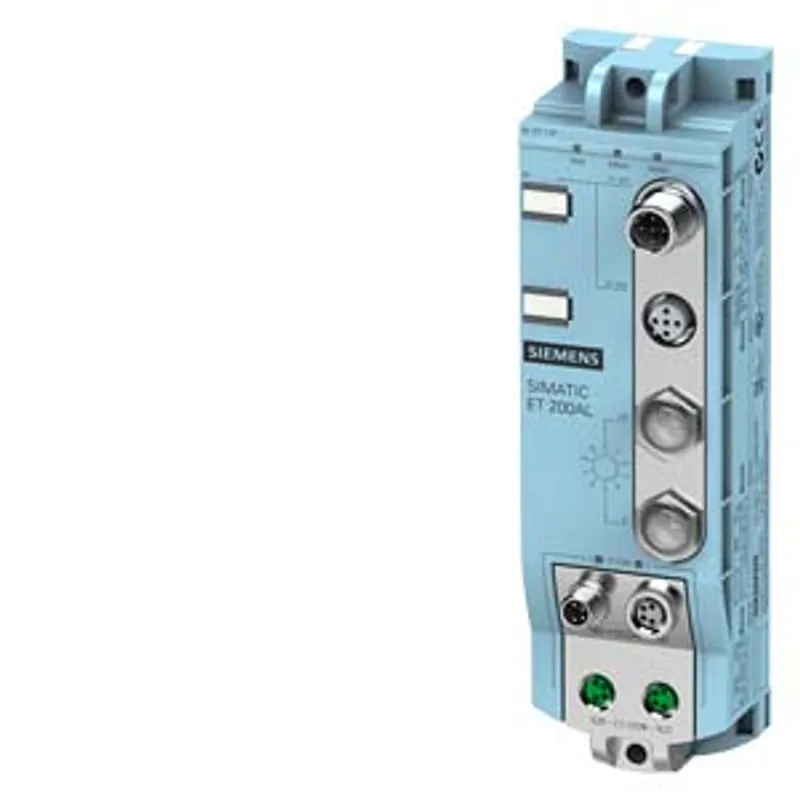

Siemens 6ES7157-1AA00-0AB0
SIMATIC ET 200AL, PROFIBUS interface module IM 157-1 DP, degree of protection IP67
- MPN
- 6ES7157-1AA00-0AB0
- Category
- IM 157-1 DP
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7157-1AA00-0AB0?
SIMATIC ET 200AL, PROFIBUS interface module IM 157-1 DP, degree of protection IP67; product phase-out planned - see SIOS 109989704
Specifications
General information
| Product type designation | IM 157-1 DP |
| HW functional status | FS02 |
| Firmware version | V1.0.x |
| Vendor identification (VendorID) | 81A9H |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | STEP 7 V13 SP1 or higher |
| Engineering with — STEP 7 configurable/integrated from version | From V5.5 SP4 Hotfix 3 |
| Engineering with — PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 |
Configuration control
| via dataset | Yes |
Supply voltage
| power supply according to NEC Class 2 required | No |
| Load voltage 1L+ — Rated value (DC) | 24 V |
| Load voltage 1L+ — permissible range, lower limit (DC) | 20.4 V |
| Load voltage 1L+ — permissible range, upper limit (DC) | 28.8 V |
| Load voltage 1L+ — Reverse polarity protection | Yes; against destruction |
Input current
| Current consumption (rated value) | 50 mA |
| from load voltage 1L+ (unswitched voltage) | 4 A; Maximum value |
| from load voltage 2L+, max. | 4 A; Maximum value |
Power loss
| Power loss, typ. | 1.7 W |
Address area
| Address space per station — Address space per station, max. | 244 byte |
Interfaces
| Number of PROFIBUS interfaces | 1 |
1. Interface
| Interface type | PROFIBUS DP |
| Interface types — RS 485 | Yes |
| Interface types — M12 port | Yes; 2x M12 B-coded |
| Protocols — PROFIBUS DP device | Yes |
Interface types
| RS 485 — Transmission rate, max. | 12 Mbit/s |
Protocols
| Supports protocol for PROFINET IO | No |
| PROFIsafe | No |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| PROFIBUS DP — Services — SYNC capability | Yes |
| PROFIBUS DP — Services — FREEZE capability | Yes |
| PROFIBUS DP — Services — Direct data exchange (slave-to-slave communication) | Yes |
| PROFIBUS DP — Services — DPV0 | Yes |
| PROFIBUS DP — Services — DPV1 | Yes |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Connection display DP | Yes; green LED |
Potential separation
| between the load voltages | Yes |
| between PROFIBUS DP and all other circuit components | Yes |
Isolation
| Isolation tested with | 707 V DC (type test) |
Degree and class of protection
| IP degree of protection | IP65/67 |
Standards, approvals, certificates
| Suitable for safety-related tripping of standard modules | Yes; from FS01 |
| Highest safety class achievable for safety-related tripping of standard modules — Performance level according to ISO 13849-1 | PL d |
| Highest safety class achievable for safety-related tripping of standard modules — Category according to ISO 13849-1 | Cat. 3 |
| Highest safety class achievable for safety-related tripping of standard modules — SIL acc. to IEC 62061 | SIL 2 |
| Highest safety class achievable for safety-related tripping of standard modules — remark on safety-oriented shutdown | https://support.industry.siemens.com/cs/de/en/view/39198632 |
Ambient conditions
| Ambient temperature during operation — min. | -30 °C |
| Ambient temperature during operation — max. | 55 °C |
Connection method
| Design of electrical connection for supply voltage | M8, 4-pole |
| ET-Connection — ET-Connection | M8, 4-pin, shielded |

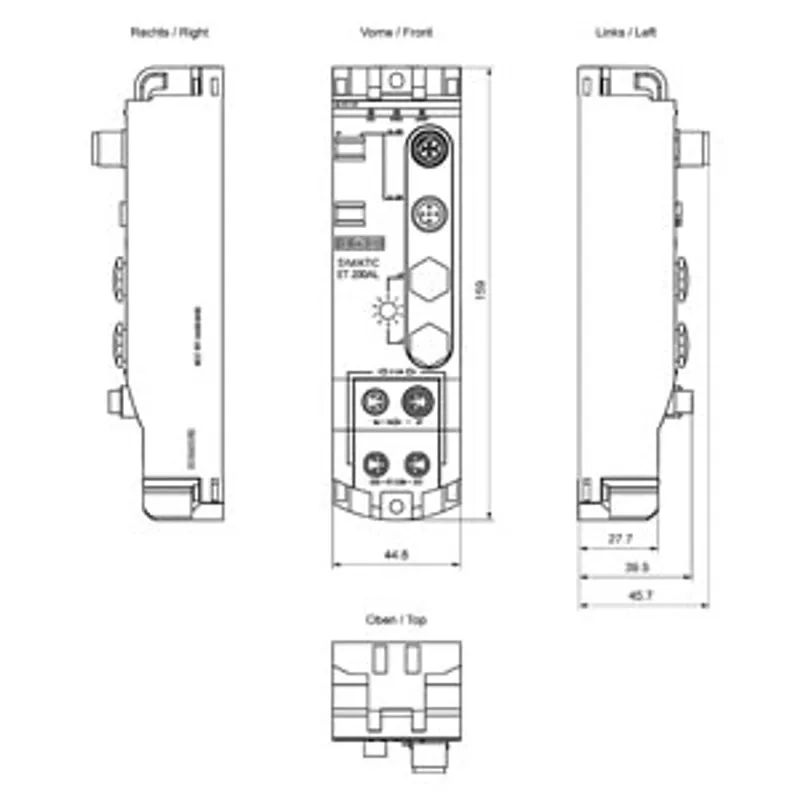

Dimensions
| Width | 45 mm |
| Height | 159 mm |
| Depth | 46 mm |
Weights
| Weight, approx. | 211 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7157-1AA00-0AB0: frequently asked questions
When can 6ES7157-1AA00-0AB0 be shipped?
6ES7157-1AA00-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7157-1AA00-0AB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7157-1AA00-0AB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7157-1AA00-0AB0, subject to availability and destination.
