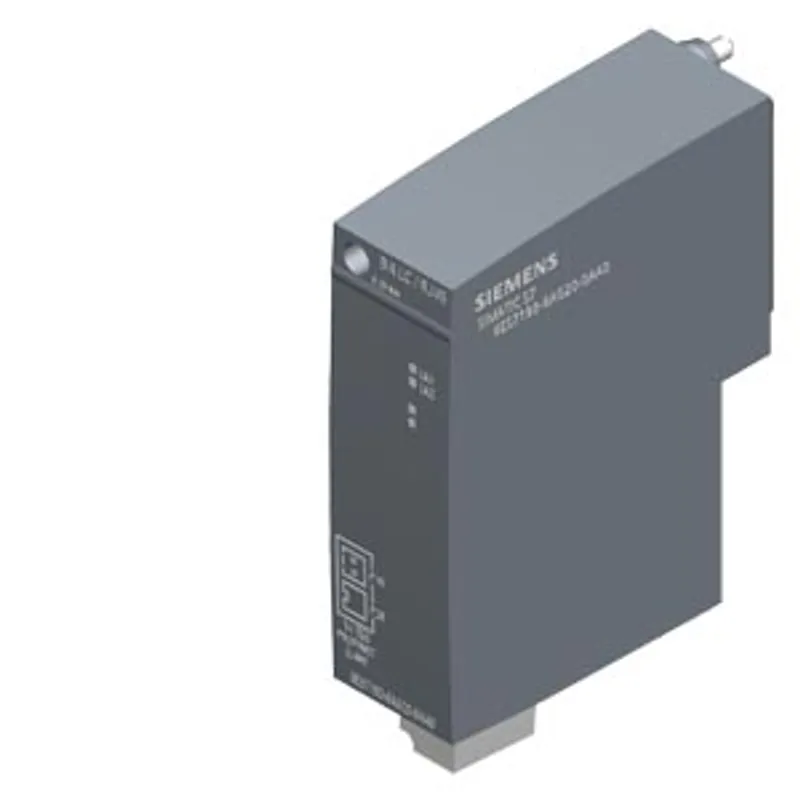

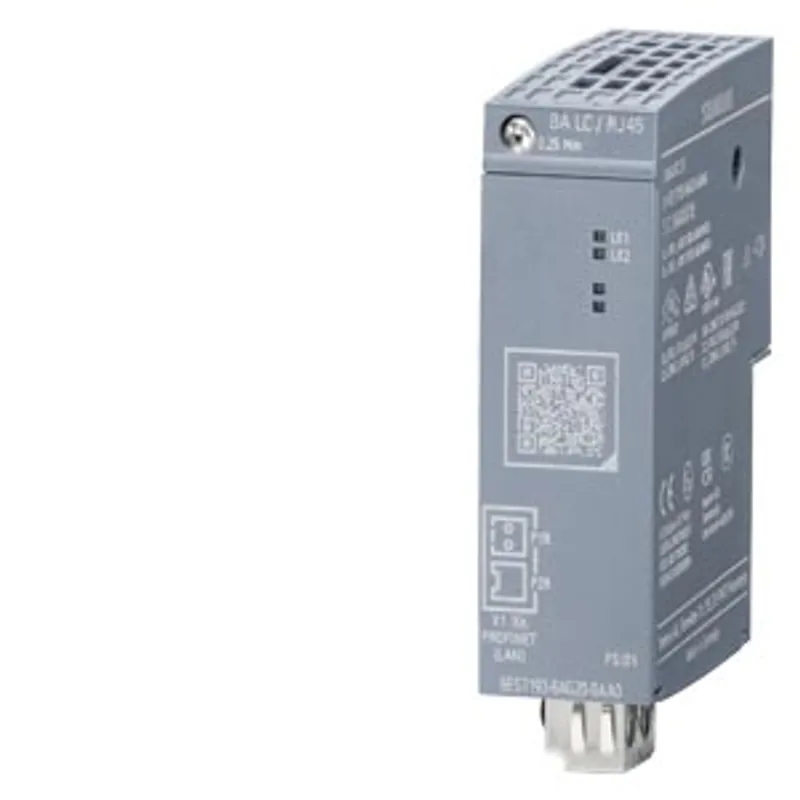

Siemens 6ES7193-6AG20-0AA0
SIMATIC bus adapter: BA LC/RJ45, media converter glass FOC/CU 1x LC FO connection and 1x RJ45 connection
- MPN
- 6ES7193-6AG20-0AA0
- Category
- BusAdapters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7193-6AG20-0AA0?
SIMATIC bus adapter: BA LC/RJ45, media converter glass FOC/CU 1x LC FO connection and 1x RJ45 connection
Specifications
General information
| Product type designation | BA LC/RJ45 |
| HW functional status | from FS04 |
Interfaces

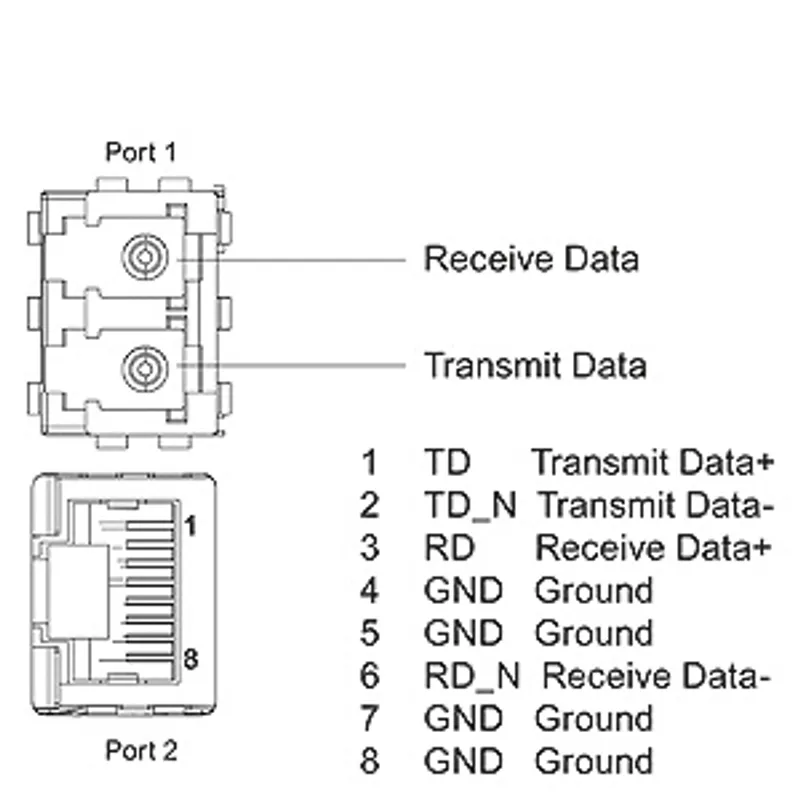

| Number of PROFINET interfaces | 1; 2 ports (switch) LC / RJ45 |
| Supports protocol for PROFINET IO — Number of RJ45 ports | 1 |
| Supports protocol for PROFINET IO — Number of LC ports | 1; Wavelength of 1 270 ... 1 380 nm, corresponds to 100BASE-FX |
| Supports protocol for PROFINET IO — Cable length — Cu conductors | 100 m |
| Supports protocol for PROFINET IO — Cable length — Multimode graded-index fiber 50/125 µm | 3 km; min. transmit power -23.5 dB, min. receiver sensitivity -31 dB |
| Supports protocol for PROFINET IO — Cable length — Multimode graded-index fiber 62.5/125 μm | 3 km; min. transmit power -20 dB, min. receiver sensitivity -31 dB |
Standards, approvals, certificates
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 27.1 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 1.35 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 25.7 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.023 kg |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |

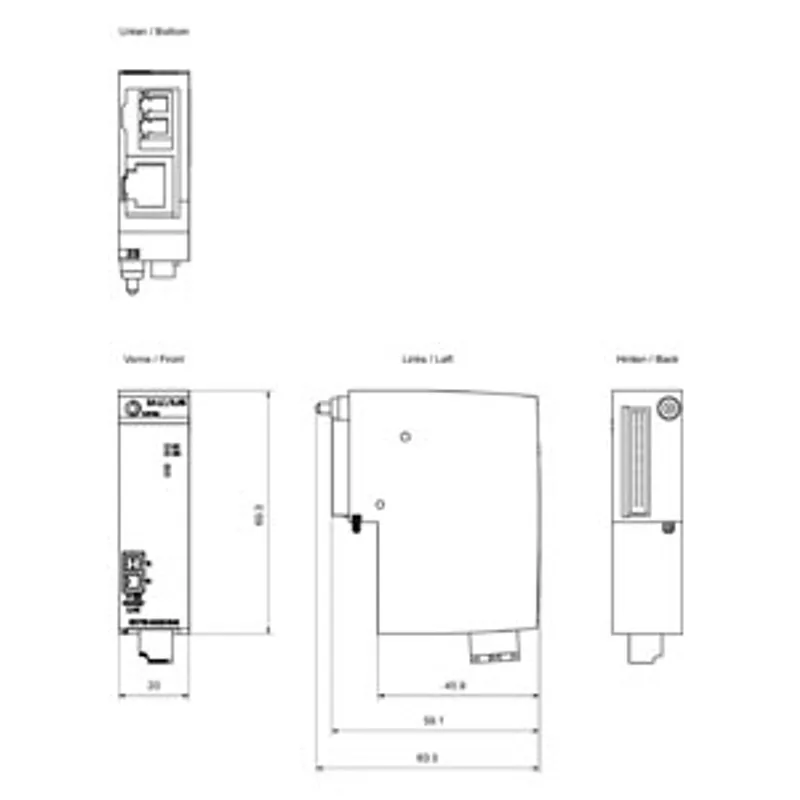

Dimensions
| Width | 20 mm |
| Height | 69.5 mm |
| Depth | 59 mm |
Weights
| Weight, approx. | 32 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7193-6AG20-0AA0: frequently asked questions
When can 6ES7193-6AG20-0AA0 be shipped?
6ES7193-6AG20-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7193-6AG20-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7193-6AG20-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7193-6AG20-0AA0, subject to availability and destination.
