Siemens 6ES7193-6BP00-0BA0

BaseUnit

MPN: 6ES7193-6BP00-0BA0
Category: BaseUnits

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

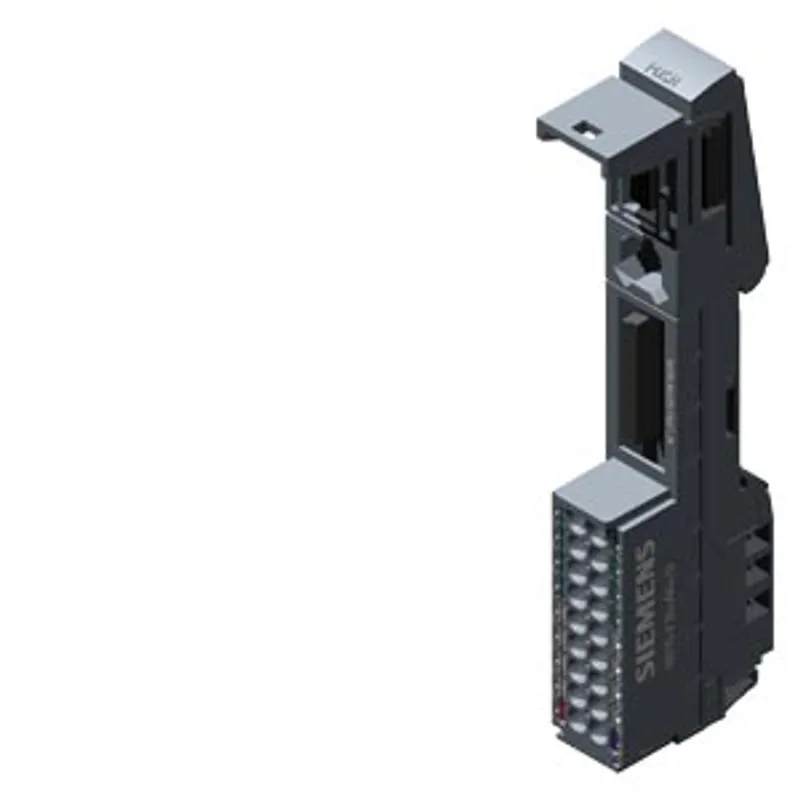

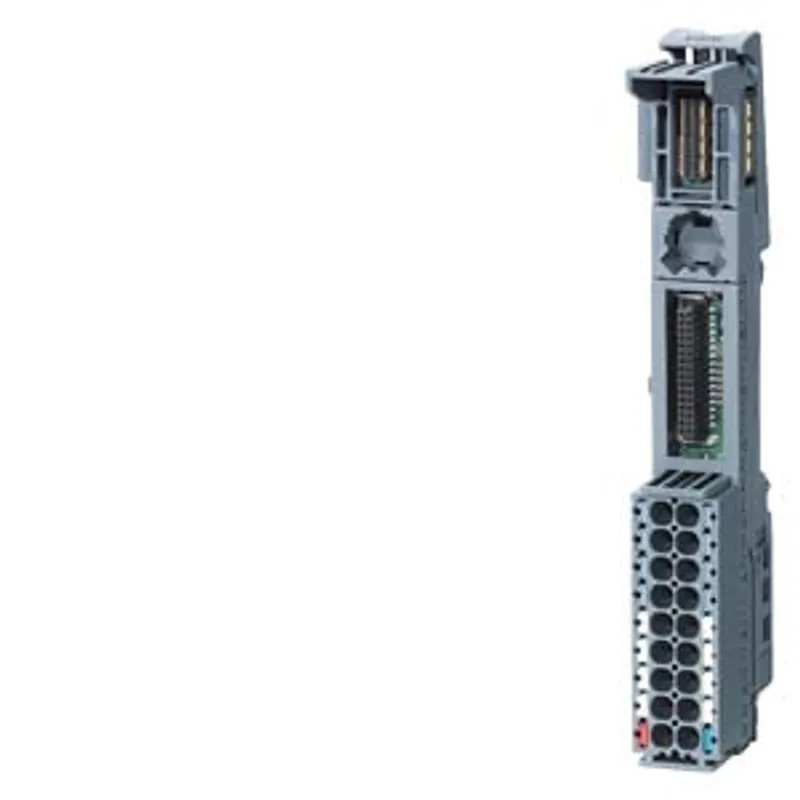

What is the Siemens 6ES7193-6BP00-0BA0?

SIMATIC ET 200SP, BaseUnit BU15-P16+A0+2B, BU type A0, Push-in terminals, without AUX terminals, bridged to the left, WxH: 15x 117 mm

Specifications

General information

Product type designation	BU type A0
HW functional status	From FS06

Supply voltage

Rated value (DC)	24 V
external protection for power supply lines	Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic
Mains filter — Integrated	No

Current carrying capacity

For P1 and P2 bus, max.	10 A
For process terminals, max.	2 A

Hardware configuration

Automatic encoding	Yes
Formation of potential groups — New potential group	No
Formation of potential groups — Potential group continued from the left	Yes
Slots — Number of slots	1; Type A0

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	0.873 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	0.866 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	0 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.0011 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity — dew point, min.	-60 °C; suitable for dry room applications

Accessories

Color coding labels — for process terminals	CC00 to CC09
Color coding labels — for AUX terminals	does not exist
Color coding labels — for add-on terminals	does not exist

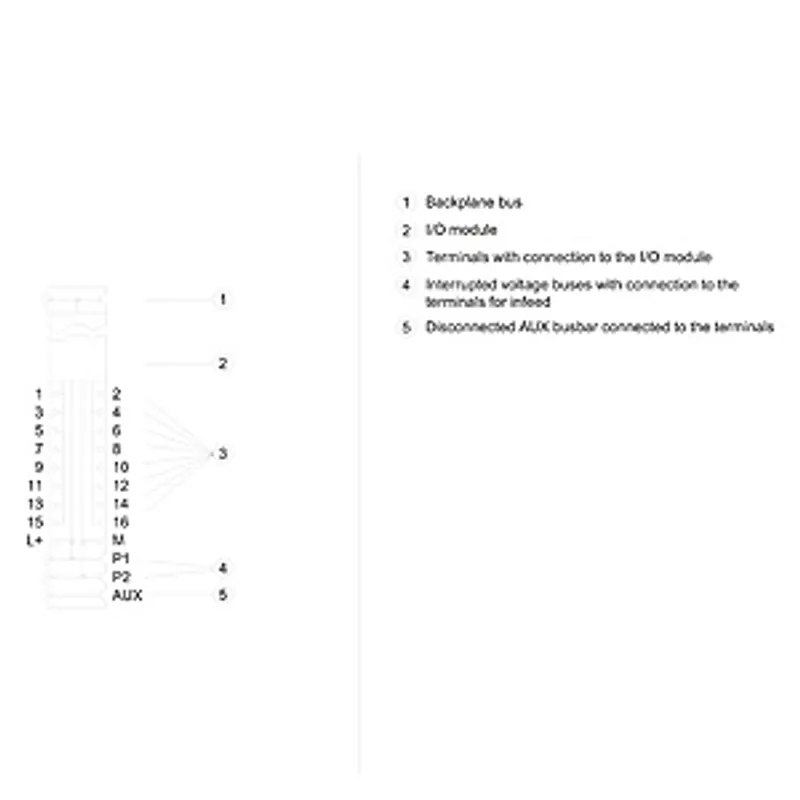

Connection method

Terminals — Terminal type	Push-in terminal
Terminals — system-integrated shield connection	Yes; Optional
Terminals — Conductor cross-section, min.	0.14 mm²; AWG 26
Terminals — Conductor cross-section, max.	2.5 mm²; AWG 14
Terminals — Number of process terminals to I/O module	16; Pro slot
Terminals — Number of terminals to AUX bus	0
Terminals — Number of add-on terminals	0
Terminals — Number of terminals with connection to P1 and P2 bus	2; Pro slot

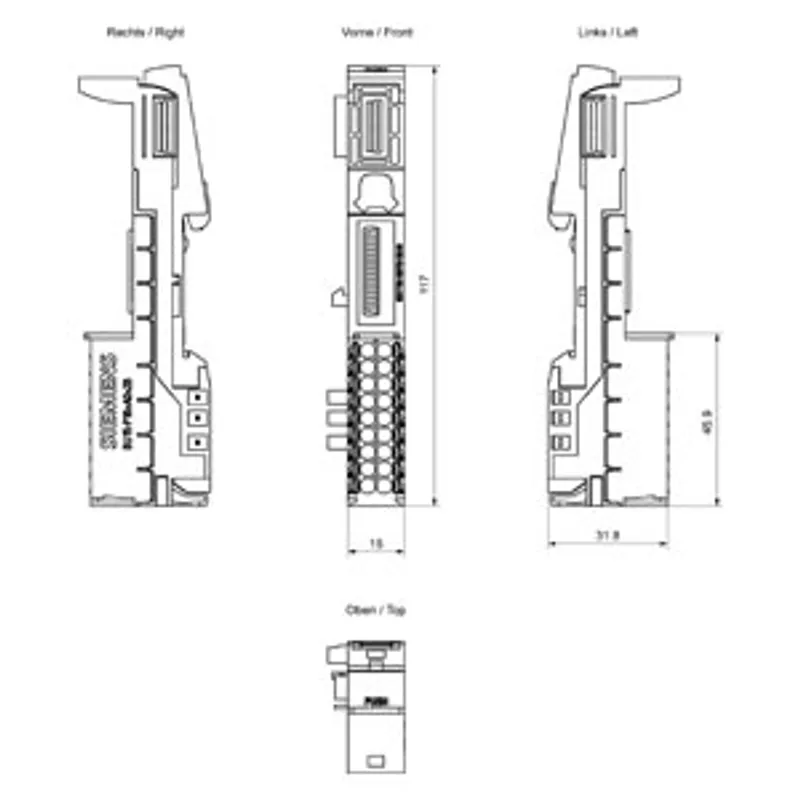

Dimensions

Width	15 mm
Height	117 mm
Depth	35 mm

Weights

Weight, approx.

40 g
