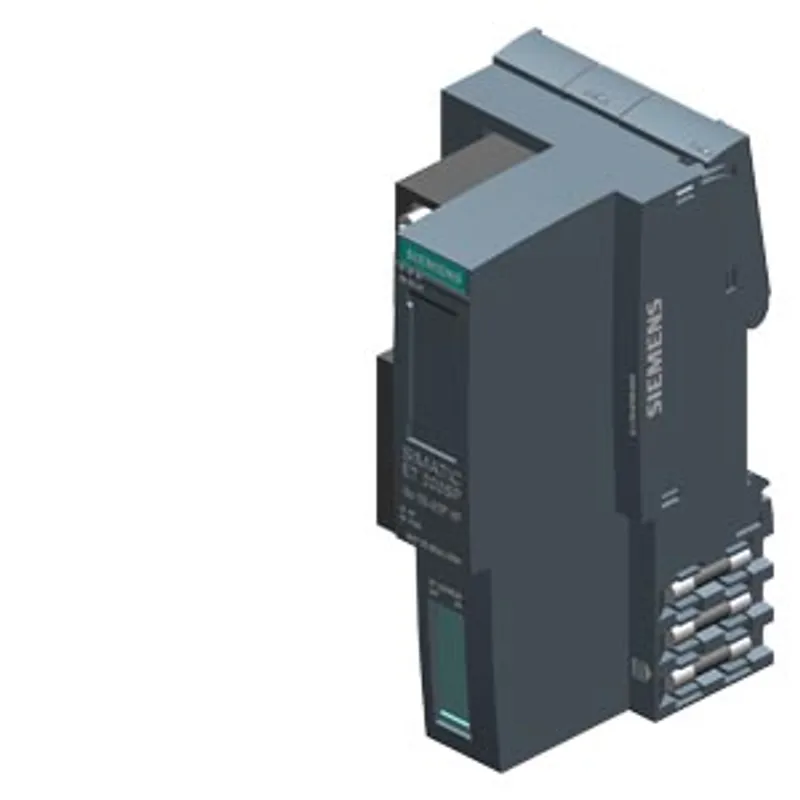

Siemens 6ES7155-6BA01-0CN0
SIMATIC ET 200SP, bundle PROFIBUS IM, IM 155-6DP HF, max. 32 I/O modules and 16 ET 200AL modules
- MPN
- 6ES7155-6BA01-0CN0
- Category
- IM 155-6
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7155-6BA01-0CN0?
SIMATIC ET 200SP, bundle PROFIBUS IM, IM 155-6DP HF, max. 32 I/O modules and 16 ET 200AL modules, multi hot swap, bundle consists of: interface module (6ES7155-6BU01-0CN0), server module (6ES7193-6PA00-0AA0), PROFIBUS plug (6ES7972-0BB70-0XA0); product phase-out planned – see SIOS 109989704
Specifications
General information
| Product type designation | IM 155-6 DP HF |
| HW functional status | From FS02 |
| Firmware version | V4.2 |
| Firmware version — FW update possible | Yes |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| Product function — Isochronous mode | No |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V15 SP1 |
| Engineering with — STEP 7 configurable/integrated from version | V5.5 SP4, only up to FW V3.1 |
| Engineering with — PROFIBUS from GSD version/GSD revision | si0181ab.gs* (V04.02.13, Rev.3, Rev.5) |
Configuration control
| via dataset | Yes |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 10 ms |
Input current
| Current consumption, max. | 335 mA |
| Inrush current, max. | 1.6 A |
| I²t | 0.038 A²·s |
Power loss
| Power loss, typ. | 1.5 W |
Address area
| Address space per module — Address space per module, max. | 32 byte; For input and output data respectively |
| Address space per station — Address space per station, max. | 244 byte |
Hardware configuration
| Rack — Quantity of operable ET 200SP modules, max. | 32 |
| Rack — Quantity of operable ET 200AL modules, max. | 16 |
Interfaces
| Number of PROFIBUS interfaces | 1 |
1. Interface
| Interface types — RS 485 | Yes; 1 integrated RS 485 socket |
| Interface types — Output current of the interface, max. | 90 mA |
| Protocols — PROFIBUS DP device | Yes |
Interface types
| RS 485 — Transmission rate, max. | 12 Mbit/s |
Protocols
| Supports protocol for PROFINET IO | No |
| PROFIsafe | Yes |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| Modbus TCP | No |
| Open IE communication — TCP/IP | No |
| PROFIBUS DP — Services — SYNC capability | Yes |
| PROFIBUS DP — Services — FREEZE capability | Yes |
| PROFIBUS DP — Services — DPV0 | Yes |
| PROFIBUS DP — Services — DPV1 | Yes |
Interrupts/diagnostics/status information
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Connection display DP | Yes; green DP LED |
Potential separation
| between backplane bus and electronics | No |
| between PROFIBUS DP and all other circuit components | Yes |
| between supply and all other circuits | No |
Permissible potential difference
| between different circuits | Safety extra low voltage SELV |
Isolation
| Isolation tested with | 707 V DC (type test) |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -25 °C; No condensation |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -25 °C; No condensation |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
Connection method
| ET-Connection — via BU/BA Send | Yes; + 16 ET 200AL modules |

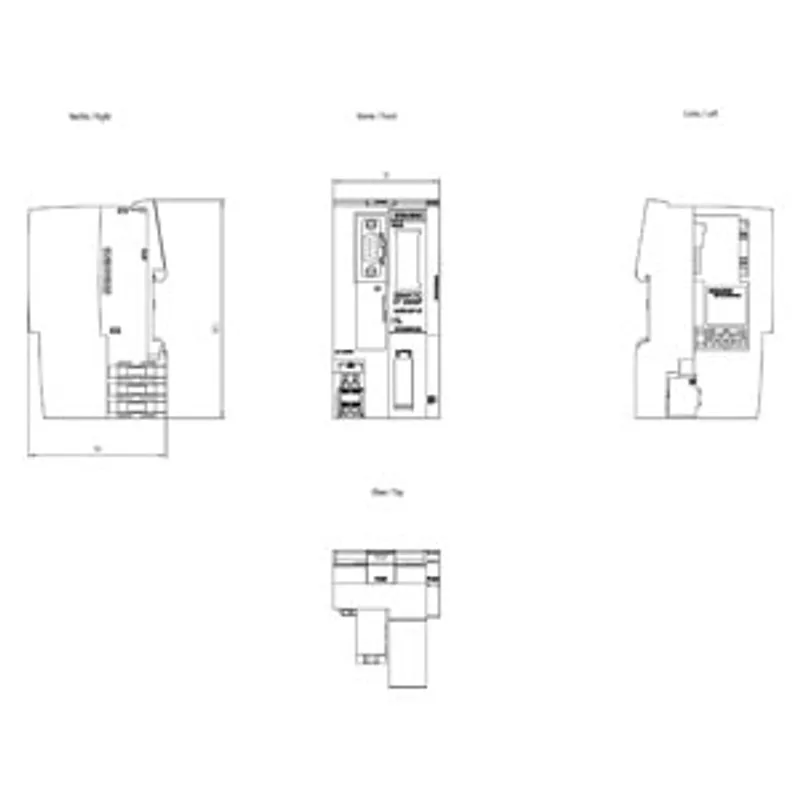

Dimensions
| Width | 50 mm |
| Height | 117 mm |
| Depth | 74 mm |
Weights
| Weight, approx. | 150 g |
