Siemens 6ES7155-6AW02-0BN0

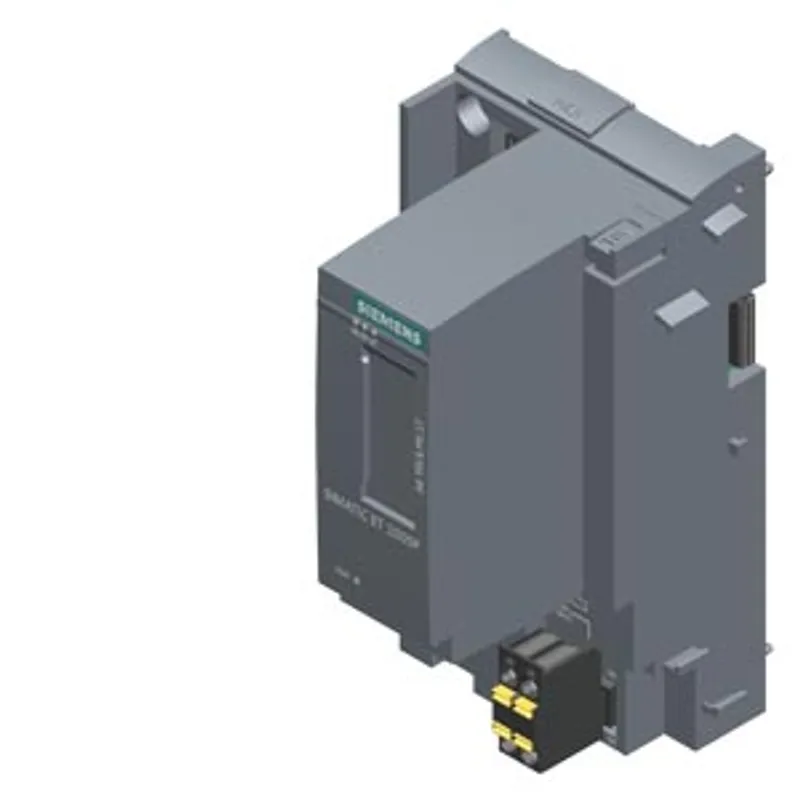

SIMATIC ET 200SP, PROFINET interface module IM 155-6 PN ST without server module
- MPN
- 6ES7155-6AW02-0BN0
- Category
- BaseCarrier
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7155-6AW02-0BN0?
SIMATIC ET 200SP, PROFINET interface module IM 155-6 PN ST without server module, including IO adapter 6ES7193-6CM00-0AA0, max. 32 I/O modules, and 16 ET 200AL modules, multi hot swap, optional PN strain relief, PN security class 1 included
Specifications
General information
| Product type designation | IM 155-6 PN ST |
| Firmware version | V6.2 |
| Firmware version — FW update possible | Yes |
| Vendor identification (VendorID) | 002AH |
| Device identifier (DeviceID) | 0313H |
| Manufacturer ID according to ODVA (VendorID) | 04E3H |
| Device ID according to ODVA (Product code) | 0FA2H |
| Product function — I&M data | Yes; I&M0 to I&M4 |
| Product function — Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| Product function — Isochronous mode | No |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V20 |
| Engineering with — STEP 7 configurable/integrated from version | V5.7 SP3 |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.45 |
Configuration control
| via dataset | Yes |

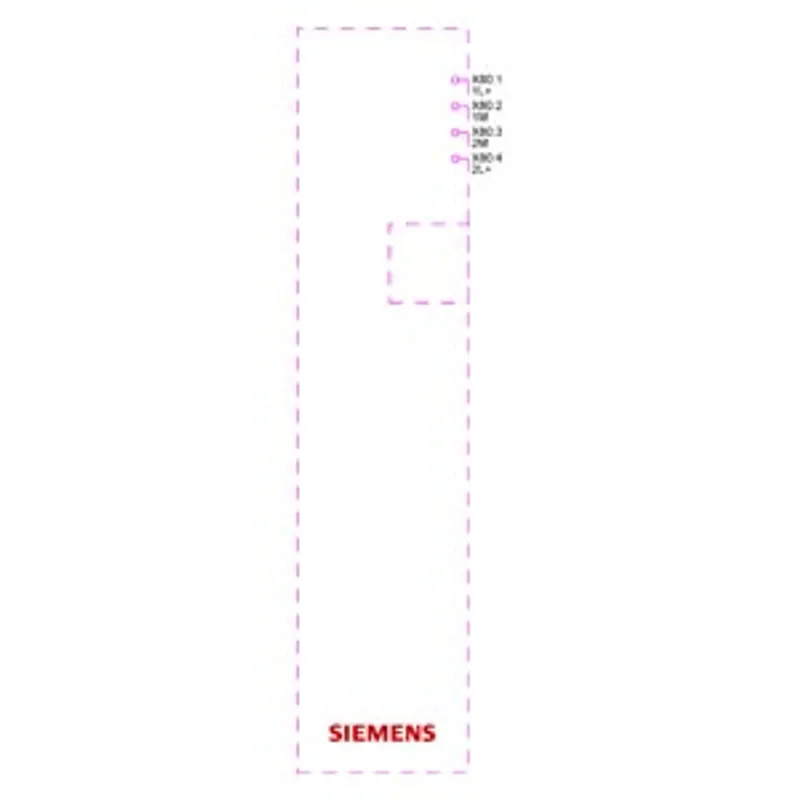

Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 10 ms |
Input current
| Current consumption (rated value) | 350 mA |
| Current consumption, max. | 450 mA |
| Inrush current, max. | 1 A |
| I²t | 0.05 A²·s |
Power loss
| Power loss, typ. | 1.8 W |
Address area
| Address space per module — Address space per module, max. | 288 byte; For input and output data respectively |
| Address space per station — Address space per station, max. | 1 440 byte |
Hardware configuration
| Rack — Quantity of operable ET 200SP modules, max. | 32 |
| Rack — Quantity of operable ET 200AL modules, max. | 16 |
| Submodules — Number of submodules per station, max. | 256 |
Interfaces
| Transmission procedure | 100BASE-TX |
| Number of PROFINET interfaces | 1; 2 ports (switch) |
1. Interface
| Interface types — RJ 45 (Ethernet) | Yes; with BusAdapter |
| Interface types — Number of ports | 2; with BusAdapter |
| Interface types — integrated switch | Yes |
| Interface types — BusAdapter (PROFINET) | Yes; BA 2x RJ45, BA 2x FC, BA 2x M12 |
| Protocols — PROFINET IO device | Yes |
| Protocols — Open IE communication | Yes |
| Protocols — Media redundancy | Yes; PROFINET MRP client |
| PROFINET IO Device — Services — IRT | Yes; 250 µs to 4 ms in 125 µs frame |
| PROFINET IO Device — Services — Dynamic Frame Packing (DFP) | Yes |
| PROFINET IO Device — Services — PROFIenergy | Yes |
| PROFINET IO Device — Services — Prioritized startup | Yes |
| PROFINET IO Device — Services — Shared device | Yes |
| PROFINET IO Device — Services — Number of IO Controllers with shared device, max. | 4 |
Interface types
| RJ 45 (Ethernet) — Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| RJ 45 (Ethernet) — 100 Mbps | Yes |
| RJ 45 (Ethernet) — Autonegotiation | Yes |
| RJ 45 (Ethernet) — Autocrossing | Yes |
Protocols
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | Yes |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| Redundancy mode — PROFINET system redundancy (S2) | No |
| Redundancy mode — PROFINET system redundancy (R1) | No |
| Redundancy mode — Media redundancy — MRP | Yes |
| Redundancy mode — Media redundancy — MRPD | No |
| Open IE communication — TCP/IP | Yes |
| Open IE communication — SNMP | Yes |
| Open IE communication — LLDP | Yes |
Interrupts/diagnostics/status information
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
Potential separation
| between backplane bus and electronics | No |
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | No |
Permissible potential difference
| between different circuits | Safety extra low voltage SELV |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| Network loading class | 3 |
Security
| PROFINET Security Class | 1 |
| signed firmware update | Yes |
| safely removing data | Yes |
| data integrity | Yes |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C; No condensation |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C; No condensation |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Connection method
| ET-Connection — via BU/BA Send | Yes; + 16 ET 200AL modules |
Mechanics/material
| Strain relief | Yes; Optional |
Dimensions

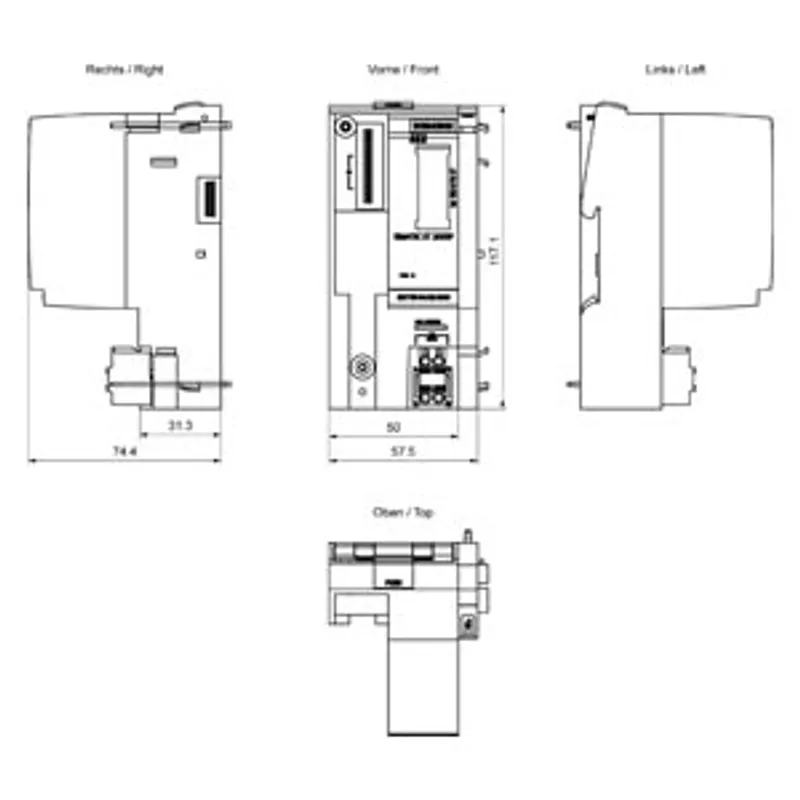

| Width | 50 mm |
| Height | 117 mm |
| Depth | 74 mm |
Weights
| Weight, approx. | 120 g; without BusAdapter |
