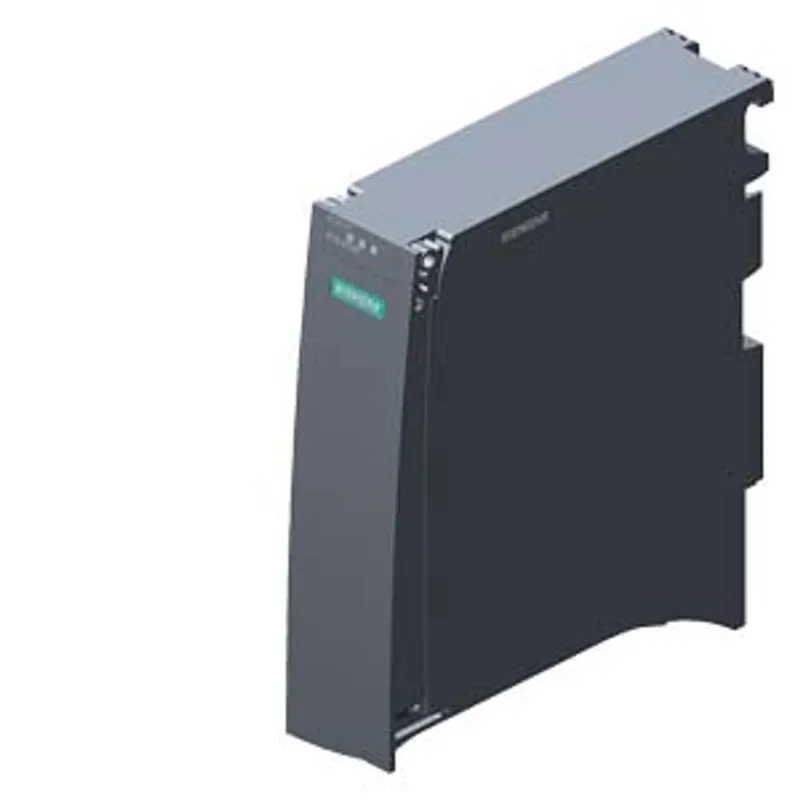

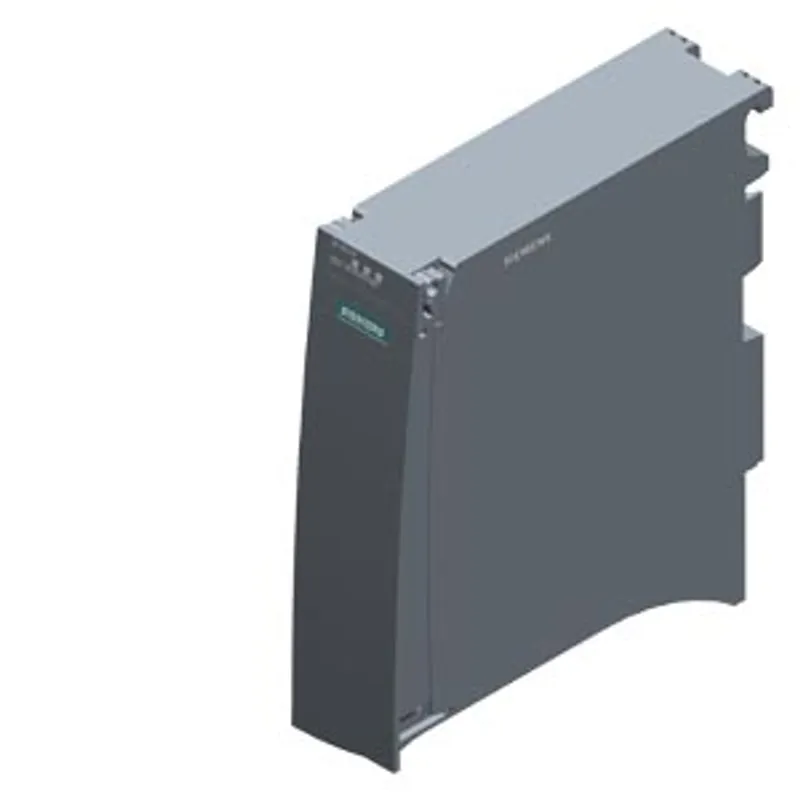

Siemens 6ES7155-5BA00-0AB0

SIMATIC ET 200MP. PROFIBUS connection IM 155-5 DP ST for max. 12 S7-1500 modules including PROFIBUS…

MPN: 6ES7155-5BA00-0AB0
Category: IM 155-5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7155-5BA00-0AB0?

SIMATIC ET 200MP. PROFIBUS connection IM 155-5 DP ST for max. 12 S7-1500 modules including PROFIBUS connection plug (6ES7972-0BB70-0XA0); product phase-out planned - see SIOS 109989704

Specifications

General information

Product type designation	IM 155-5 DP ST
HW functional status	from FS01
Firmware version	V2.0.0
Firmware version — FW update possible	Yes
Vendor identification (VendorID)	81AAh
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Module swapping during operation (hot swapping)	No
Product function — Isochronous mode	No
Product function — IRT	No
Product function — Tool changer	No
Product function — Local coupling, IO data	No
Engineering with — STEP 7 TIA Portal configurable/integrated from version	V13
Engineering with — STEP 7 configurable/integrated from version	use GSD file
Engineering with — PROFIBUS from GSD version/GSD revision	V1.0 / V5.1

Configuration control

via dataset

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes
Short-circuit protection	Yes
Mains buffering — Mains/voltage failure stored energy time	5 ms

Input current

Current consumption (rated value)	0.2 A; at 24 V DC and without load
Current consumption, max.	1.2 A; at 20.4 V DC and max. load
Inrush current, max.	4 A
I²t	0.09 A²·s
from interface 5 V DC, max.	80 mA

Power

Infeed power to the backplane bus

14 W

Power loss

Power loss, typ.

4 W

Address area

Address space per module — Address space per module, max.	64 byte; For input and output data respectively
Address space per station — Address space per station, max.	244 byte; For input and output data respectively

Hardware configuration

Integrated power supply	Yes; 14 W
System power supply can be plugged in to left of IM	No
Number of permissible power segments	1; incl. interface module
Rack — Modules per rack, max.	12; I/O modules

Interfaces

Number of PROFIBUS interfaces

1; 1 port

1. Interface

Interface types — RS 485	Yes
Interface types — Number of ports	1
Interface types — integrated switch	No
Interface types — BusAdapter (PROFINET)	No
Protocols — PROFIBUS DP device	Yes
PROFINET IO Device — Services — IRT	No

Interface types

RS 485 — Transmission rate, max.

12 Mbit/s

Protocols

Supports protocol for PROFINET IO	No
PROFIsafe	Yes
PROFIBUS	Yes
EtherNet/IP	No
Modbus TCP	No
PROFIBUS DP — Services — SYNC capability	Yes
PROFIBUS DP — Services — FREEZE capability	Yes
PROFIBUS DP — Services — DPV1	Yes

Interrupts/diagnostics/status information

Status indicator	Yes
Alarms	Yes
Diagnostics function	Yes
Diagnostics indication LED — RUN LED	Yes; green LED
Diagnostics indication LED — ERROR LED	Yes; red LED
Diagnostics indication LED — MAINT LED	Yes; Yellow LED
Diagnostics indication LED — Connection display DP	Yes; green LED

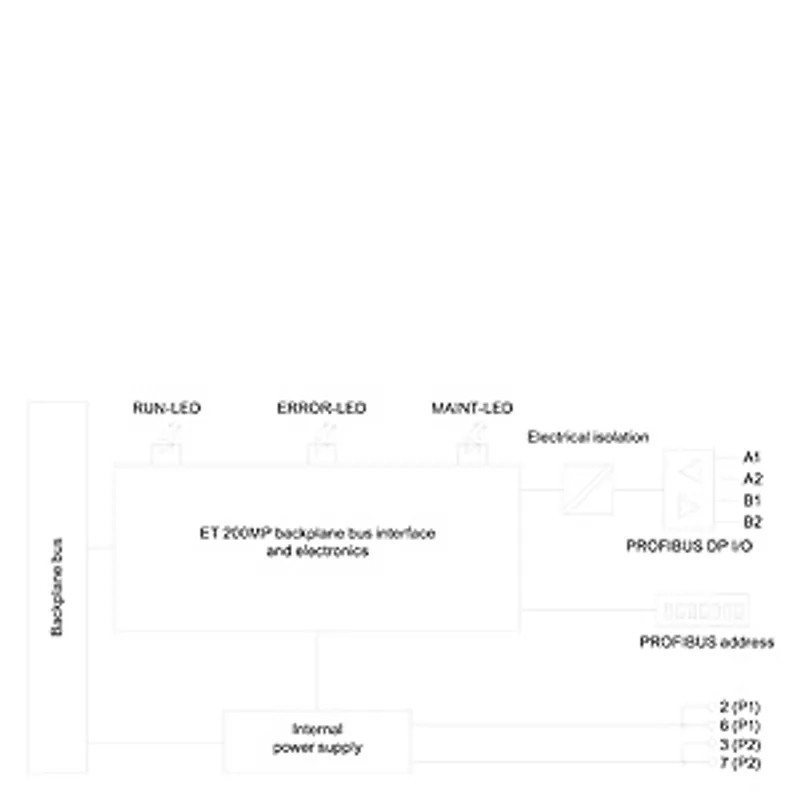

Potential separation

between backplane bus and electronics	No
between PROFIBUS DP and all other circuit components	Yes
between supply and all other circuits	No

Permissible potential difference

between different circuits

Safety extra low voltage SELV

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Siemens Eco Profile (SEP)	Siemens EcoTech
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	64.1 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	11.1 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	53.6 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.669 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-25 °C; from FS04
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-25 °C; from FS04
Ambient temperature during operation — vertical installation, max.	40 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity — dew point, min.	-60 °C; suitable for dry room applications

Connection method

ET-Connection — via BU/BA Send

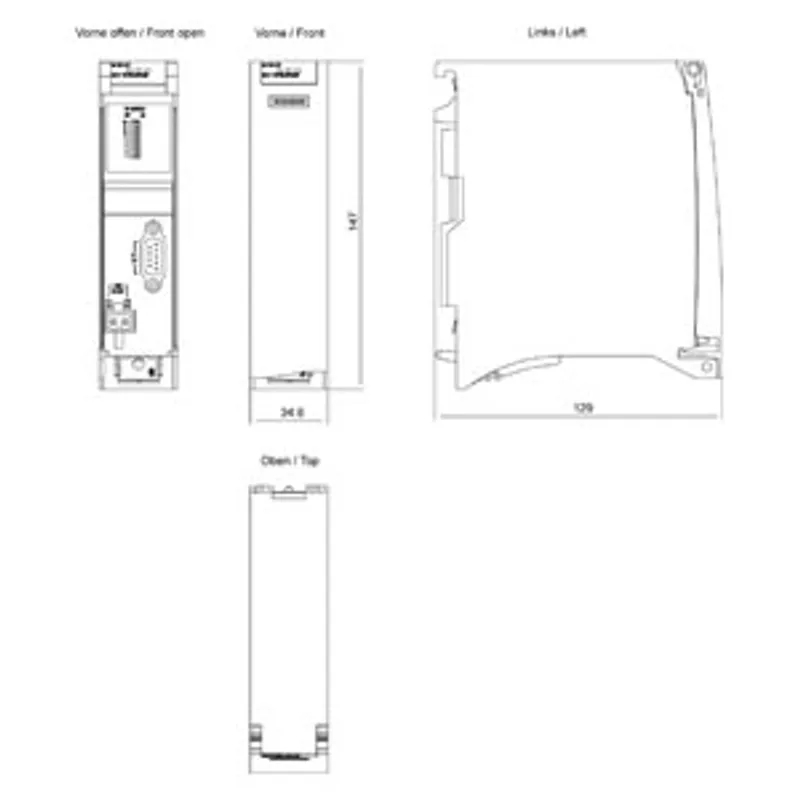

Dimensions

Width	35 mm
Height	147 mm
Depth	129 mm

Weights

Weight, approx.

360 g
