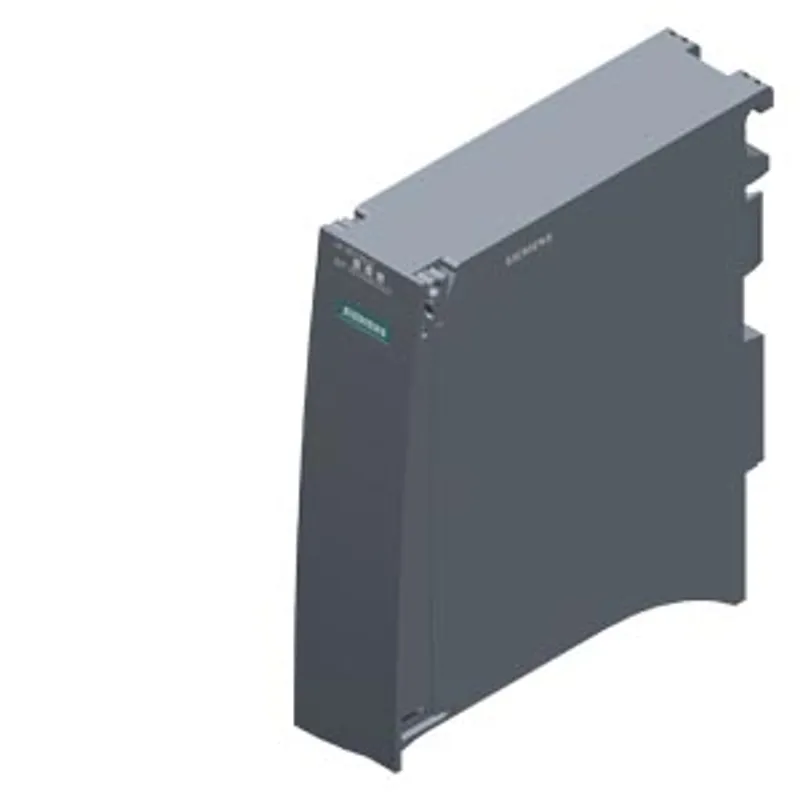

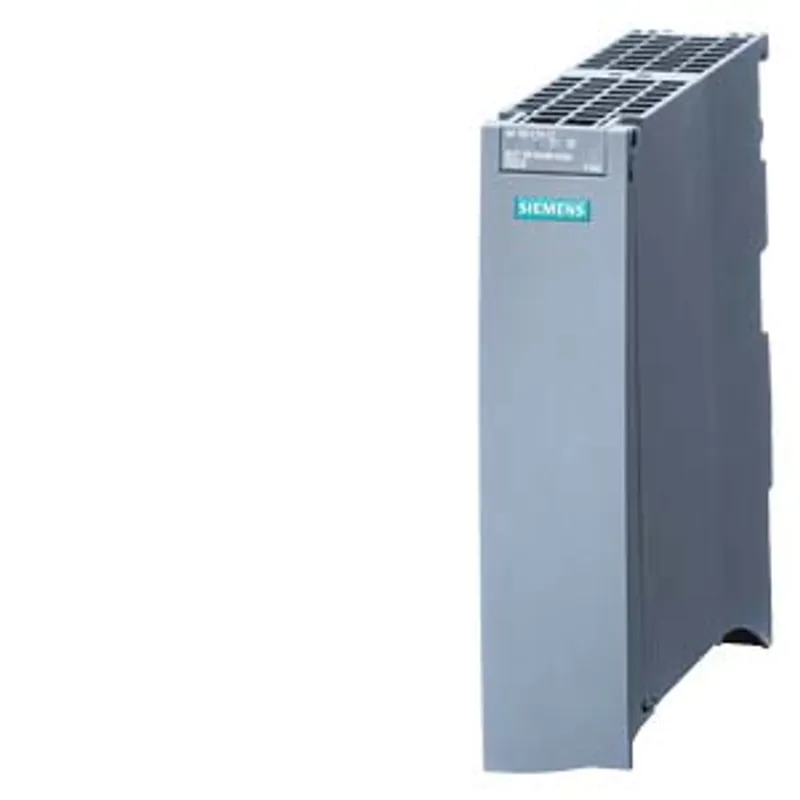

Siemens 6ES7155-5AA00-0AC0
Spare part *** SIMATIC ET 200MP
- MPN
- 6ES7155-5AA00-0AC0
- Category
- CPU & Controllers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7155-5AA00-0AC0?
*** spare part *** SIMATIC ET 200MP. PROFINET IO device interface module IM 155-5 PN HF, for ET 200MP electronic modules; up to 12 IO modules without PS; up to 30 IO modules with additional PS; integrated 2-port switch; RJ45 shared device; MRP; IRT >=0.25 ms; isochronous mode firmware update; I&M0...3; prioritized startup, S2 redundancy; shared device with 4 controllers suitable for operation with the active backplane bus (FW V4.4 or higher)
Specifications
General information
| Product type designation | IM 155-5 PN HF |
| HW functional status | From FS03 |
| Firmware version | V4.4 |
| Firmware version — FW update possible | Yes |
| Vendor identification (VendorID) | 002AH |
| Device identifier (DeviceID) | 0X0312 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Module swapping during operation (hot swapping) | Yes; In combination with active backplane bus |
| Product function — Isochronous mode | Yes |
| Product function — IRT | Yes |
| Product function — Tool changer | No |
| Product function — Local coupling, IO data | No |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V16 |
| Engineering with — STEP 7 configurable/integrated from version | use GSD file |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.3 |
Configuration control
| via dataset | Yes |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 5 ms |
Input current
| Current consumption (rated value) | 0.2 A; at 24 V DC and without load |
| Current consumption, max. | 1.2 A |
| Inrush current, max. | 9 A |
| I²t | 0.09 A²·s |
Power
| Infeed power to the backplane bus | 14 W |
| Power consumption from the backplane bus | 2.3 W; in case of operation with separate system power supply to the left of IM |
Power loss
| Power loss, typ. | 4.5 W |
Address area
| Address space per module — Address space per module, max. | 256 byte; For input and output data respectively |
| Address space per station — Address space per station, max. | 512 byte; For input and output data respectively |
Hardware configuration
| Integrated power supply | Yes; 14 W |
| System power supply can be plugged in to left of IM | Yes; only with design with U-connectors |
| Number of permissible power segments | 3; incl. interface module |
| Rack — Modules per rack, max. | 30; I/O modules |
| Submodules — Number of submodules per station, max. | 256; 9 per I/O module |
Interfaces
| Transmission procedure | 100BASE-TX |
| Number of PROFINET interfaces | 1; 2 ports (switch) |
1. Interface
| Interface types — RJ 45 (Ethernet) | Yes |
| Interface types — Number of ports | 2 |
| Interface types — integrated switch | Yes |
| Interface types — BusAdapter (PROFINET) | No |
| Protocols — PROFINET IO Device | Yes |
| Protocols — Open IE communication | Yes |
| Protocols — Media redundancy | Yes; PROFINET MRP client / HRP client |
| PROFINET IO Device — Services — IRT | Yes; 250 µs to 4 ms in 125 µs frame |
| PROFINET IO Device — Services — Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device — Services — PROFIenergy | No |
| PROFINET IO Device — Services — Prioritized startup | Yes |
| PROFINET IO Device — Services — Shared device | Yes |
| PROFINET IO Device — Services — Number of IO Controllers with shared device, max. | 4 |
Interface types
| RJ 45 (Ethernet) — Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| RJ 45 (Ethernet) — 100 Mbps | Yes |
| RJ 45 (Ethernet) — Autonegotiation | Yes |
| RJ 45 (Ethernet) — Autocrossing | Yes |
Protocols
| PROFINET IO | Yes |
| PROFIsafe | Yes |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| Redundancy mode — PROFINET system redundancy (S2) | Yes; NAP S2 |
| Redundancy mode — PROFINET system redundancy (S2) — on S7-1500R/H | Yes |
| Redundancy mode — PROFINET system redundancy (S2) — on S7-400H | Yes; use GSD file |
| Redundancy mode — PROFINET system redundancy (R1) | No |
| Redundancy mode — H-Sync forwarding | Yes |
| Redundancy mode — Media redundancy — MRP | Yes |
| Redundancy mode — Media redundancy — MRPD | Yes |
| Open IE communication — TCP/IP | Yes |
| Open IE communication — SNMP | Yes |
| Open IE communication — LLDP | Yes |
Isochronous mode
| Equidistance | Yes |
| shortest clock pulse | 250 µs |
| max. cycle | 4 ms |
| Bus cycle time (TDP), min. | 250 µs |
| Jitter, max. | 1 µs |
Interrupts/diagnostics/status information
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Connection display LINK TX/RX | Yes; 2x green-yellow LEDs |
Potential separation
| between backplane bus and electronics | No |
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | No |
Permissible potential difference
| between different circuits | Safety extra low voltage SELV |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| Network loading class | 3 |
Security
| PROFINET Security Class | 0 |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -25 °C; from FS04 |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -25 °C; from FS04 |
| Ambient temperature during operation — vertical installation, max. | 40 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity — dew point, min. | -60 °C; suitable for dry room applications |
Connection method
| ET-Connection — via BU/BA Send | No |

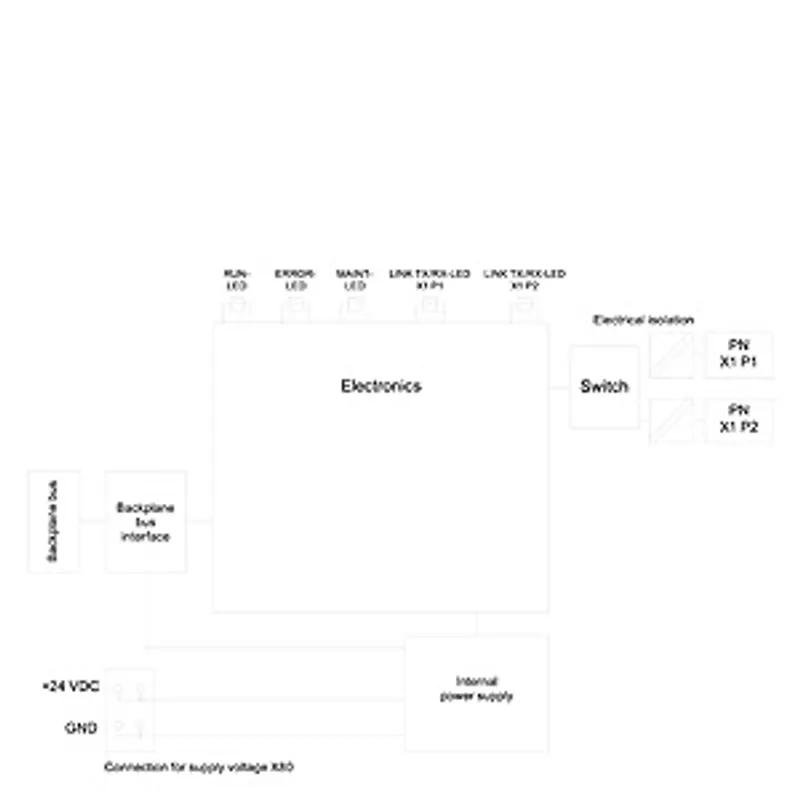

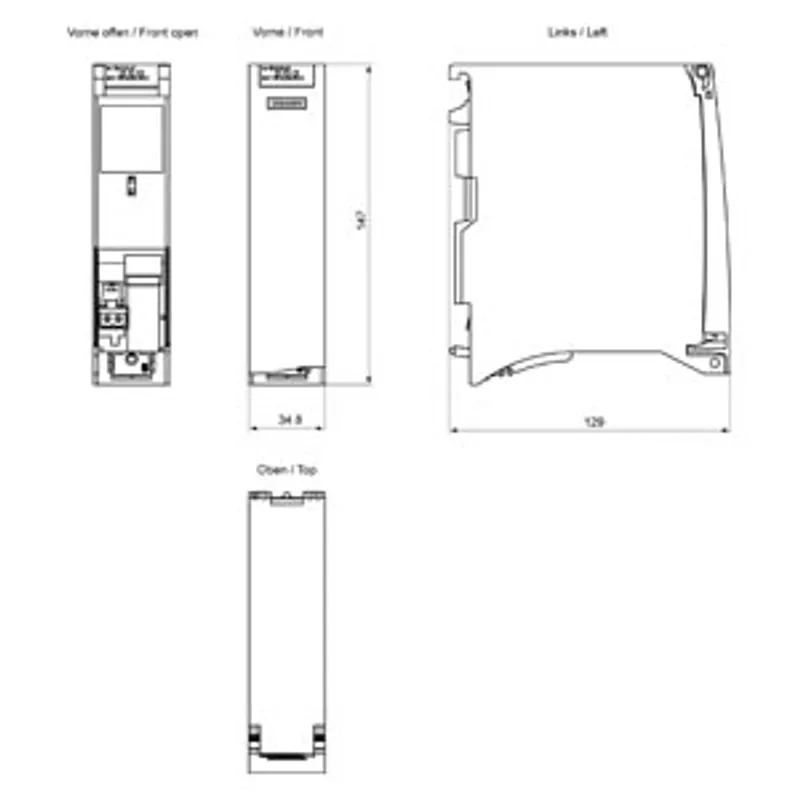

Dimensions
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
Weights
| Weight, approx. | 350 g |
