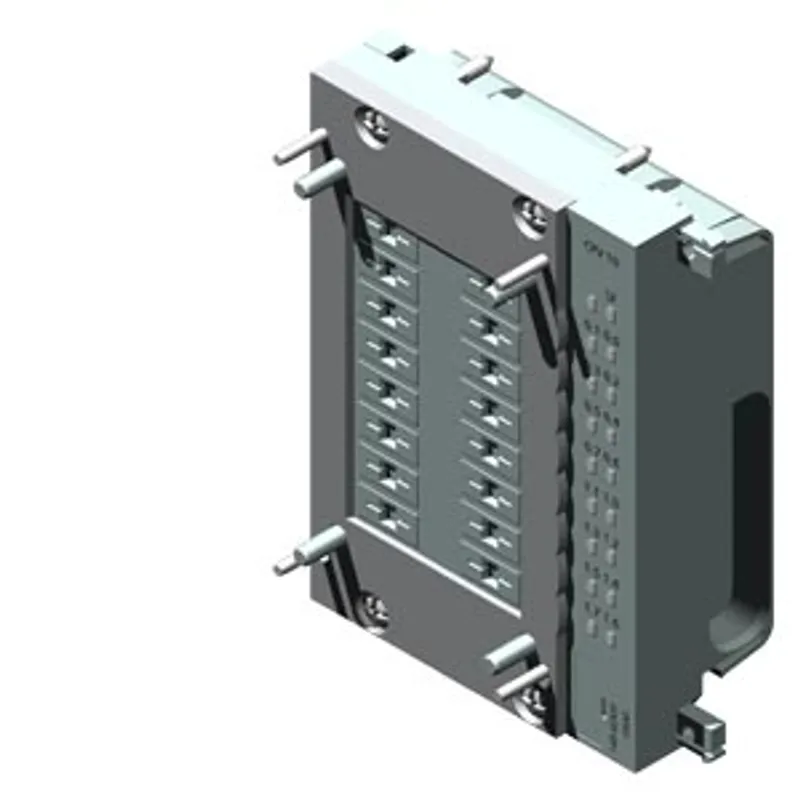

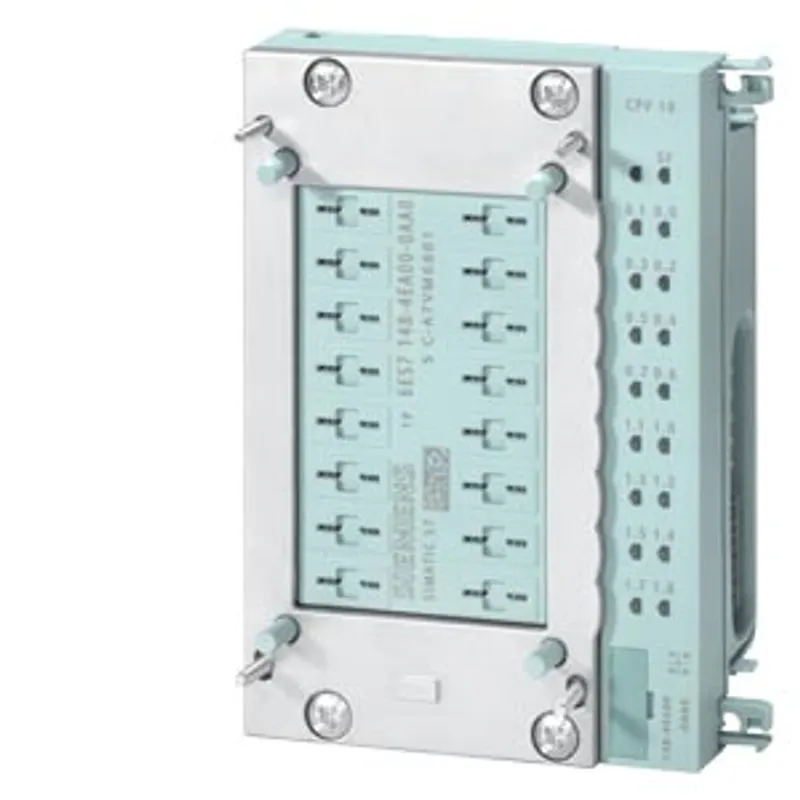

Siemens 6ES7148-4EA00-0AA0

SIMATIC DP, Pneumatic interface for ET 200 PRO

MPN: 6ES7148-4EA00-0AA0
Category: ET 200pro pneumatic interface

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7148-4EA00-0AA0?

SIMATIC DP, Pneumatic interface for ET 200 PRO, 16 DO pneumatics for coupling with Festo valve terminal CPV-10; incl. bus module

Specifications

Supply voltage

Load voltage 2L+ — Rated value (DC)	24 V
Load voltage 2L+ — Short-circuit protection	Yes
Load voltage 2L+ — Reverse polarity protection	Yes

Input current

from load voltage 2L+, max.	300 mA; Including valves
from backplane bus 3.3 V DC, max.	25 mA

Power loss

Power loss, typ.

2.6 W

Address area

Address space per module — Address space per module, max.

2 byte

Digital outputs

Number of digital outputs	16
Load resistance range — lower limit	500 Ω
Load resistance range — upper limit	2 500 Ω
Output current — for signal "1" rated value	12 mA
Output current — for signal "1" permissible range, min.	11 mA
Output current — for signal "1" permissible range, max.	15 mA
Switching frequency — with inductive load, max.	25 Hz
Total current of the outputs (per group) — all mounting positions — up to 55 °C, max.	250 mA; only up to 50 °C, limited by valves

Interrupts/diagnostics/status information

Diagnostics function	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Diagnostic information readable	Yes
Diagnostics indication LED — Group error SF (red)	Yes
Diagnostics indication LED — Status indicator digital output (green)	Yes

Pneumatics

Number of connectable valves, max.	16
permissible working pressure, min.	3 bar
permissible working pressure, max.	8 bar
Rated flow rate	400 l/min
Valve switching times from "0" to "1"	17 ms
Valve switching times from "1" to "0"	25 ms

Parameter

Remark	Diagnosis load voltage 2L+
Response to CPU/master STOP	No

Potential separation

between backplane bus and all other circuit components	Yes
Potential separation digital outputs — between the channels and backplane bus	Yes

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for safety-related tripping of standard modules	Yes
Highest safety class achievable for safety-related tripping of standard modules — Performance level according to ISO 13849-1	PL d
Highest safety class achievable for safety-related tripping of standard modules — Category according to ISO 13849-1	Cat. 3
Highest safety class achievable for safety-related tripping of standard modules — SIL acc. to IEC 62061	SIL 2
Highest safety class achievable for safety-related tripping of standard modules — remark on safety-oriented shutdown	https://support.industry.siemens.com/cs/de/en/view/39198632

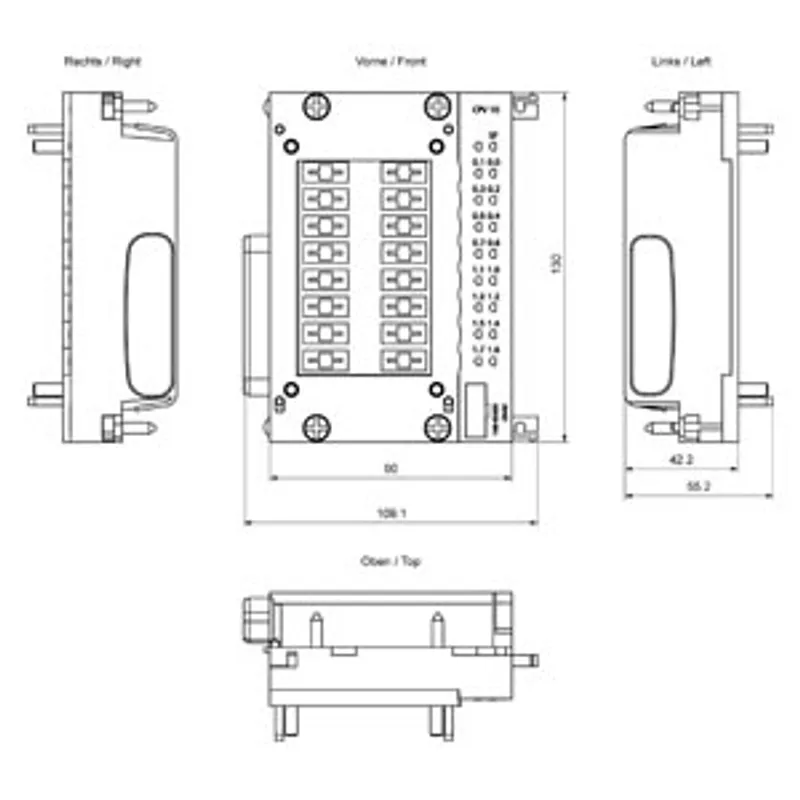

Dimensions

Width	90 mm
Height	130 mm
Depth	47 mm
