Siemens

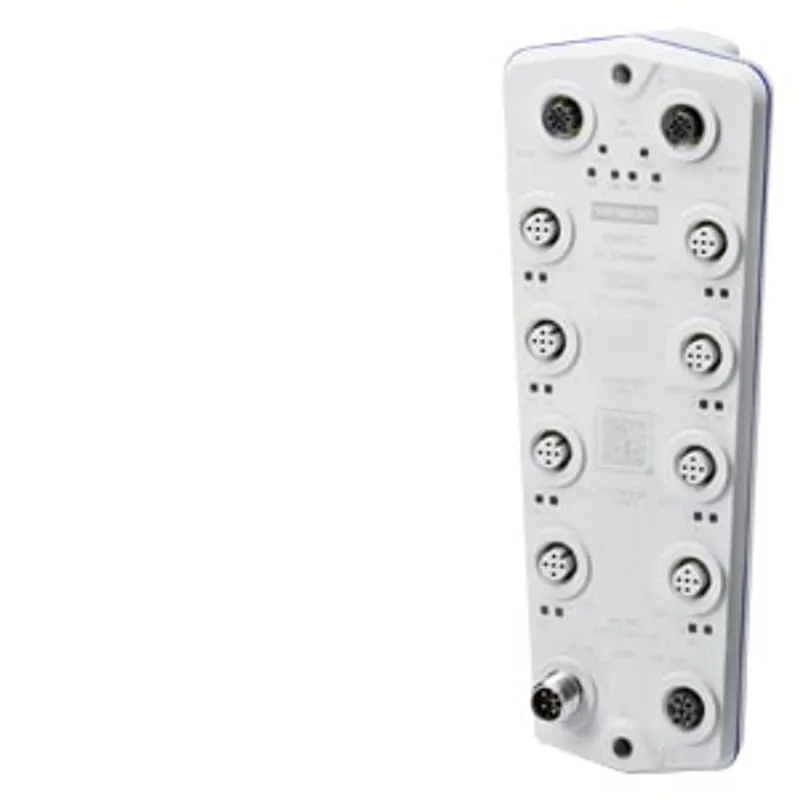

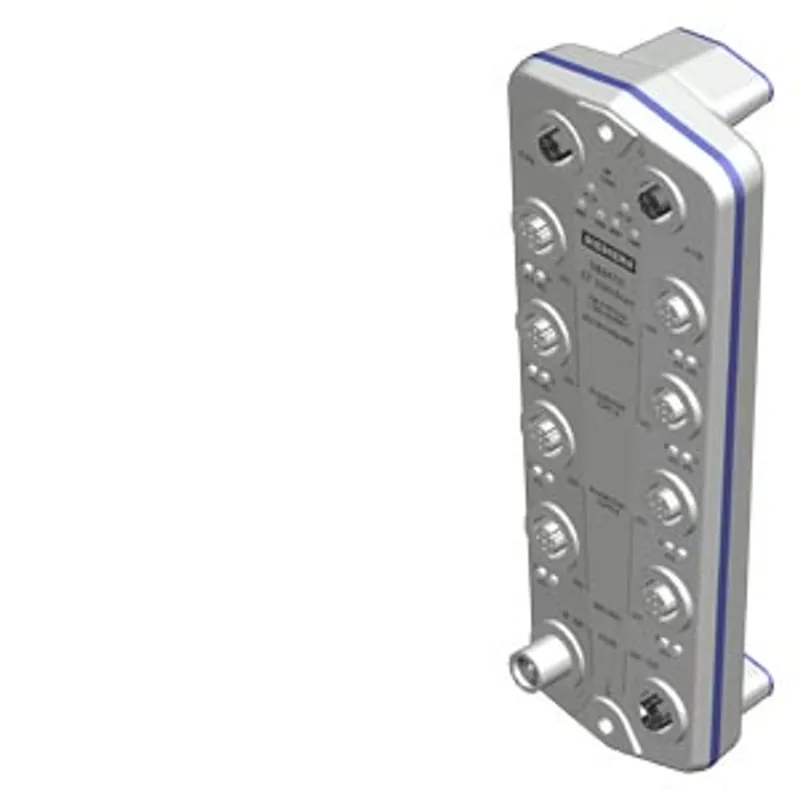

Siemens 6ES7148-7JH00-0BB0

SIMATIC ET 200clean, CM 8x IO-Link + DIQ 4x 24 V DC, 8x M12, 4x port class A + 4x port class B

MPN: 6ES7148-7JH00-0BB0
Category: IO-Link master

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7148-7JH00-0BB0?

SIMATIC ET 200clean, CM 8x IO-Link + DIQ 4x 24 V DC, 8x M12, 4x port class A + 4x port class B, channel diagnostics, shared device with 2 controllers, MRP, S2 redundancy, I&M0...4, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, degree of protection IP69K

Specifications

General information

HW functional status	FS01
Firmware version	V1.1.x
Firmware version — FW update possible	Yes
Vendor identification (VendorID)	002AH
Device identifier (DeviceID)	031AH
Manufacturer ID according to ODVA (VendorID)	04E3H
Device ID according to ODVA (Product code)	0FB9H
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Product function — IRT	Yes
Product function — Prioritized startup	Yes
Engineering with — STEP 7 TIA Portal configurable/integrated from version	STEP 7 V19 or higher with HSP 0414
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.4.x
Engineering with — Multi Fieldbus Configuration Tool (MFCT)	V1.5.x
Operating mode — IO-Link	Yes
Operating mode — DI	Yes
Operating mode — DQ	Yes
Operating mode — MSI	Yes
Operating mode — MSO	Yes

Supply voltage

power supply according to NEC Class 2 required	No
Load voltage 1L+ — Rated value (DC)	24 V
Load voltage 1L+ — permissible range, lower limit (DC)	20.4 V
Load voltage 1L+ — permissible range, upper limit (DC)	28.8 V
Load voltage 1L+ — Reverse polarity protection	Yes; against destruction
Load voltage 2L+ — Rated value (DC)	24 V
Load voltage 2L+ — permissible range, lower limit (DC)	20.4 V
Load voltage 2L+ — permissible range, upper limit (DC)	28.8 V
Load voltage 2L+ — Reverse polarity protection	Yes; Against destruction; encoder power supply outputs applied with reversed polarity

Input current

Current consumption (rated value)	100 mA; without load
from load voltage 1L+ (unswitched voltage)	12 A; Maximum value
from load voltage 2L+, max.	12 A; Maximum value

Encoder supply

Number of outputs	8
24 V encoder supply — Short-circuit protection	Yes; per channel, electronic
24 V encoder supply — Output current, max.	1 A; Per channel

Actuator supply

Number of outputs	4
Short-circuit protection	Yes; per channel, electronic
Output current — Rated value	2 A; Per channel

Power loss

Power loss, typ.

8 W

Address area

Address space per module — Inputs	271 byte; + 8 bytes for QI information
Address space per module — Outputs	257 byte

Hardware configuration

Submodules — Number of configurable submodules, max.

Digital inputs

Number of digital inputs	4; Parameterizable as DIQ
Digital inputs, parameterizable	Yes
Sourcing/sinking input	P-reading
Input characteristic curve in accordance with IEC 61131, type 3	Yes
Number of simultaneously controllable inputs — all mounting positions — up to 55 °C, max.	4
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	-3 to +5V
Input voltage — for signal "1"	+11 to +30V
Input current — for signal "1", typ.	2.4 mA
Input delay (for rated value of input voltage) — for standard inputs — parameterizable	Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms
Cable length — unshielded, max.	30 m

Digital outputs

Number of digital outputs	4; Parameterizable as DIQ
output type acc. to IEC 61131, type 0.5	Yes
Short-circuit protection	Yes; per channel, electronic
Short-circuit protection — Response threshold, typ.	1 A
Limitation of inductive shutdown voltage to	typ. 1L+ (-70 V)
Controlling a digital input	Yes
Switching capacity of the outputs — with resistive load, max.	0.5 A
Switching capacity of the outputs — with inductive load, max.	0.5 A
Switching capacity of the outputs — on lamp load, max.	5 W
Load resistance range — lower limit	48 Ω
Load resistance range — upper limit	4 kΩ
Output voltage — for signal "1", min.	1L+ (-0.8V)
Output current — for signal "1" rated value	0.5 A
Output current — for signal "1" permissible range, max.	0.5 A
Output current — for signal "0" residual current, max.	0.1 mA
Output delay with resistive load — "0" to "1", max.	100 µs; at rated load
Output delay with resistive load — "1" to "0", max.	100 µs; at rated load
Parallel switching of two outputs — for uprating	No
Parallel switching of two outputs — for redundant control of a load	Yes
Switching frequency — with resistive load, max.	100 Hz
Switching frequency — with inductive load, max.	0.5 Hz
Switching frequency — on lamp load, max.	1 Hz
Total current of the outputs — Current per group, max.	1L+: 2 A
Total current of the outputs — Current per module, max.	2 A
Cable length — unshielded, max.	30 m

Encoder

Connectable encoders — 2-wire sensor	Yes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.	1.5 mA

IO-Link

Number of ports	8
Number of ports — of which simultaneously controllable	8
IO-Link protocol 1.0	Yes
IO-Link protocol 1.1	Yes
Transmission rate	4.8 kBaud (COM1); 38.4 kBaud (COM2), 230 kBaud (COM3)
Cycle time, min.	2 ms
Size of process data, input per port	33 byte
Size of process data, input per module	264 byte
Size of process data, output per port	32 byte
Size of process data, output per module	256 byte
Memory size for device parameter	2 kbyte; for each port
Master backup	possible with LIOLink_Master function block
Configuration without S7-PCT	Possible; autostart/manual function
Cable length unshielded, max.	20 m
Operating modes — IO-Link	Yes
Operating modes — DI	Yes
Operating modes — DQ	Yes; max. 100 mA
Connection of IO-Link devices — Port type A	Yes; via 3-core cable
Connection of IO-Link devices — Port type B	Yes; additional device supply: max. 2 A per port, max. 6 A per module

Interfaces

Number of PROFINET interfaces

1. Interface

Interface type	PROFINET with 100 Mbit/s full duplex (100BASE-TX)
Interface types — M12 port	Yes; 2x M12, 4-pin, D-coded
Interface types — Number of ports	2
Interface types — integrated switch	Yes
Protocols — PROFINET IO Device	Yes
Protocols — Open IE communication	Yes
PROFINET IO Device — Services — IRT	Yes; 250 µs to 4 ms in 125 µs frame
PROFINET IO Device — Services — Prioritized startup	Yes
PROFINET IO Device — Services — Shared device	Yes
PROFINET IO Device — Services — Number of IO Controllers with shared device, max.	2

Interface types

M12 port — Autonegotiation	Yes
M12 port — Autocrossing	Yes
M12 port — Transmission rate, max.	100 Mbit/s

Protocols

Supports protocol for PROFINET IO	Yes
PROFIsafe	No
EtherNet/IP	Yes
Modbus TCP	Yes
Redundancy mode — PROFINET system redundancy (S2)	Yes
Redundancy mode — PROFINET system redundancy (S2) — on S7-1500R/H	Yes
Redundancy mode — PROFINET system redundancy (S2) — on S7-400H	Yes
Redundancy mode — PROFINET system redundancy (R1)	No
Redundancy mode — H-Sync forwarding	Yes
Redundancy mode — Media redundancy — MRP	Yes
Redundancy mode — Media redundancy — MRPD	No
EtherNet/IP — Services — CIP Implicit Messaging	Yes
EtherNet/IP — Services — CIP Explicit Messaging	Yes
EtherNet/IP — Services — CIP Safety	No
EtherNet/IP — Services — Shared device	Yes; 2x EtherNet/IP Scanner
EtherNet/IP — Services — Number of scanners with shared device, max.	2
EtherNet/IP — Updating times — Requested Packet Interval (RPI)	2 ms
EtherNet/IP — Redundancy mode — DLR (Device Level Ring)	No
EtherNet/IP — Address area — Address space per module, max.	300 byte
EtherNet/IP — Address area — LargeForwardOpen (Class3)	No
Modbus TCP — Services — read coils (code=1)	Yes
Modbus TCP — Services — read discrete inputs (code=2)	Yes
Modbus TCP — Services — Read Holding Registers (Code=3)	Yes
Modbus TCP — Services — write single coil (code=5)	Yes
Modbus TCP — Services — write multiple coils (code=15)	Yes
Modbus TCP — Services — Write Multiple Registers (Code=16)	Yes
Modbus TCP — Services — Parameter change by master	No
Modbus TCP — Services — Modbus TCP Security Protocol	No
Modbus TCP — Address space per station — Address space per station, max.	300 byte
Modbus TCP — Address space per station — Access-consistent address space	2 byte
Modbus TCP — Updating time — I/O request interval	2 ms
Modbus TCP — Connections — number of connections per device	12
Open IE communication — TCP/IP	Yes; (only EtherNet/IP or Modbus TCP)
Open IE communication — SNMP	Yes
Open IE communication — LLDP	Yes
Open IE communication — ARP	Yes

Interrupts/diagnostics/status information

Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes; Parameterizable
Alarms — Maintenance interrupt	Yes; Parameterizable
Alarms — Hardware interrupt	Yes; Parameterizable
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Monitoring the supply voltage — parameterizable	Yes
Diagnoses — Wire break	Yes; DI, input current < 0.3 mA, per channel
Diagnoses — Short-circuit	Yes; Outputs to M and P; channel by channel
Diagnoses — Short-circuit encoder supply	Yes; Per channel
Diagnostics indication LED — RUN LED	Yes; green LED
Diagnostics indication LED — ERROR LED	Yes; red LED
Diagnostics indication LED — MAINT LED	Yes; Yellow LED
Diagnostics indication LED — NS LED	Yes; green/red LED
Diagnostics indication LED — MS LED	Yes; green/red LED
Diagnostics indication LED — IO LED	Yes; red/green/yellow LEDs
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	Yes; red LED
Diagnostics indication LED — For load voltage monitoring	Yes; green LED
Diagnostics indication LED — Connection display LINK TX/RX	Yes; green LED, only link

Potential separation

between the load voltages	Yes
between Ethernet and electronics	Yes
Potential separation channels — between the channels	No
Potential separation channels — between the channels and the power supply of the electronics	No

Isolation

tested with — 24 V DC circuits	707 V DC (type test)
tested with — Test voltage for interface, rms value [Vrms]	1 500 V; According to IEEE 802.3

Degree and class of protection

IP degree of protection

IP65/67/69K

Standards, approvals, certificates

Siemens Eco Profile (SEP)	Siemens EcoTech
Suitable for safety-related tripping of standard modules	Yes; from FS01
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	70.7 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	12.5 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	58.8 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.64 kg
Highest safety class achievable for safety-related tripping of standard modules — Performance level according to ISO 13849-1	PL d
Highest safety class achievable for safety-related tripping of standard modules — Category according to ISO 13849-1	Cat. 3
Highest safety class achievable for safety-related tripping of standard modules — SIL acc. to IEC 62061	SIL 2
Highest safety class achievable for safety-related tripping of standard modules — remark on safety-oriented shutdown	https://support.industry.siemens.com/cs/de/en/view/39198632

Security

signed firmware update	Yes
securely removing data	Yes

Ambient conditions

Ambient temperature during operation — min.	-30 °C
Ambient temperature during operation — max.	55 °C
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Up to max. 5 000 m, at installation height > 2 000 m additional restrictions, see manual for details

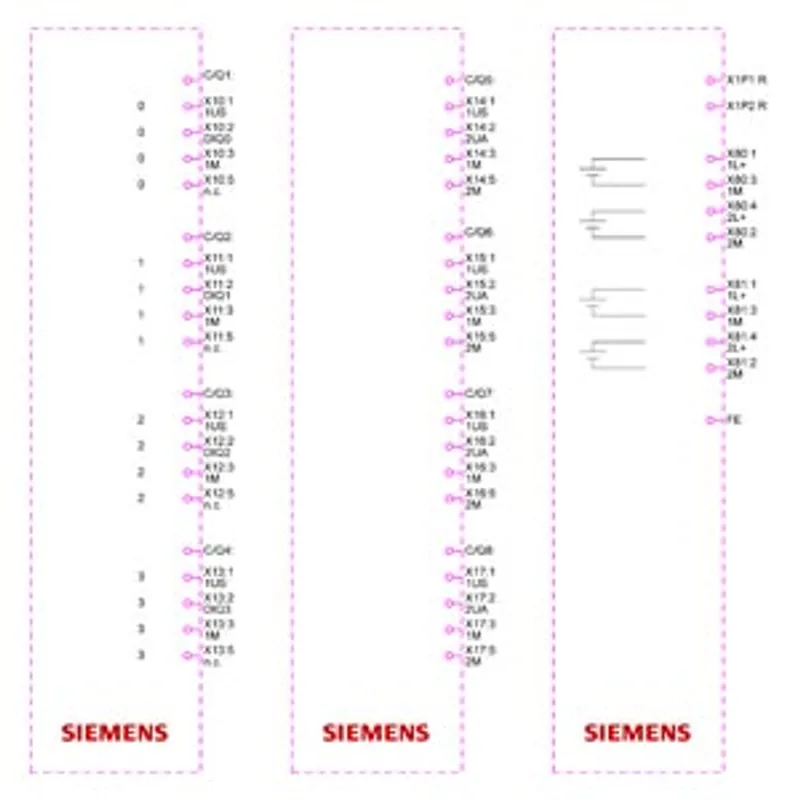

Connection method

Design of electrical connection	4/5-pin M12 circular connectors
Design of electrical connection for the inputs and outputs	M12, 5-pin, A-coded
Design of electrical connection for supply voltage	M12, 4-pin, L-coded

Mechanics/material

Material

housing: PBT; seal: MVQ (silicone); bushing / metal parts: 1.4404 (stainless steel)

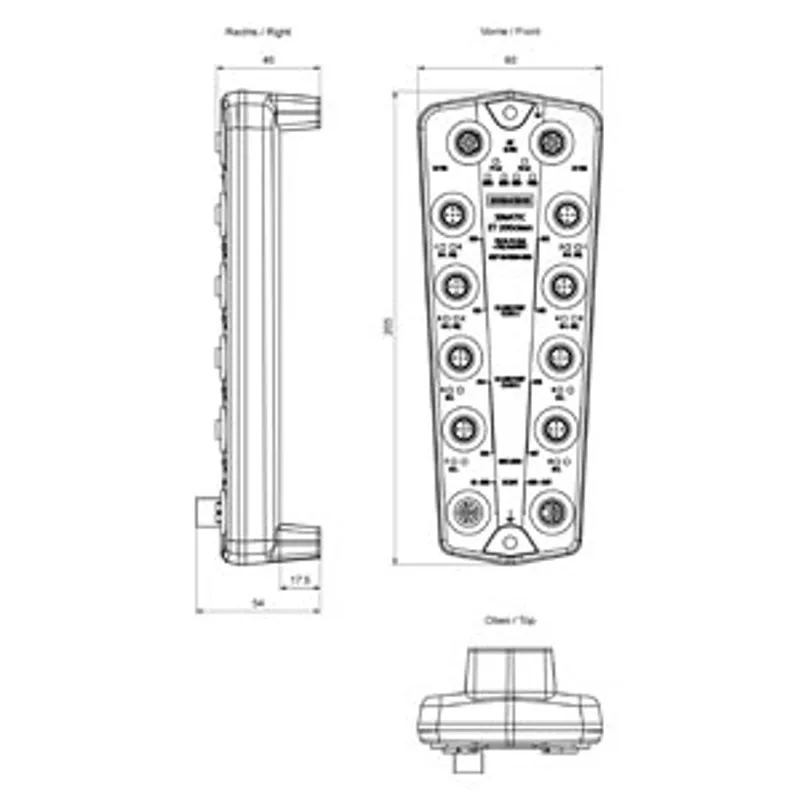

Dimensions

Width	80 mm
Height	205 mm
Depth	54 mm

Weights

Weight, approx.

280 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7148-7JH00-0BB0PDF

6ES7148-7JH00-0BB0: frequently asked questions

When can 6ES7148-7JH00-0BB0 be shipped?

6ES7148-7JH00-0BB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7148-7JH00-0BB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7148-7JH00-0BB0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7148-7JH00-0BB0, subject to availability and destination.
