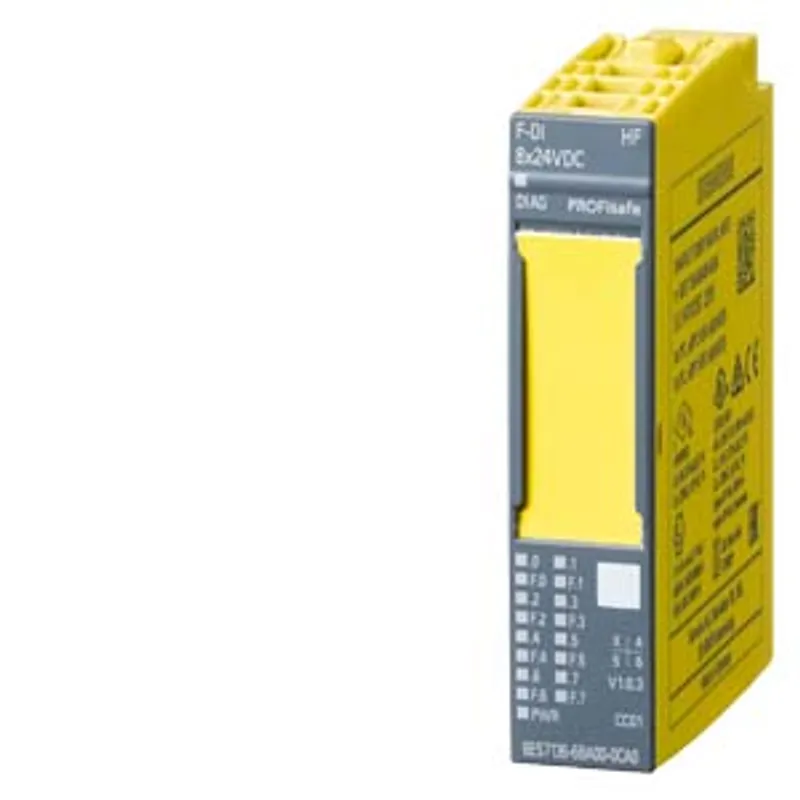

Siemens 6ES7136-6BA01-0CA0
SIMATIC DP, electronic module for ET 200SP, F-DI 8x 24 V DC HF, 15 mm width
- MPN
- 6ES7136-6BA01-0CA0
- Category
- Digital F-input modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

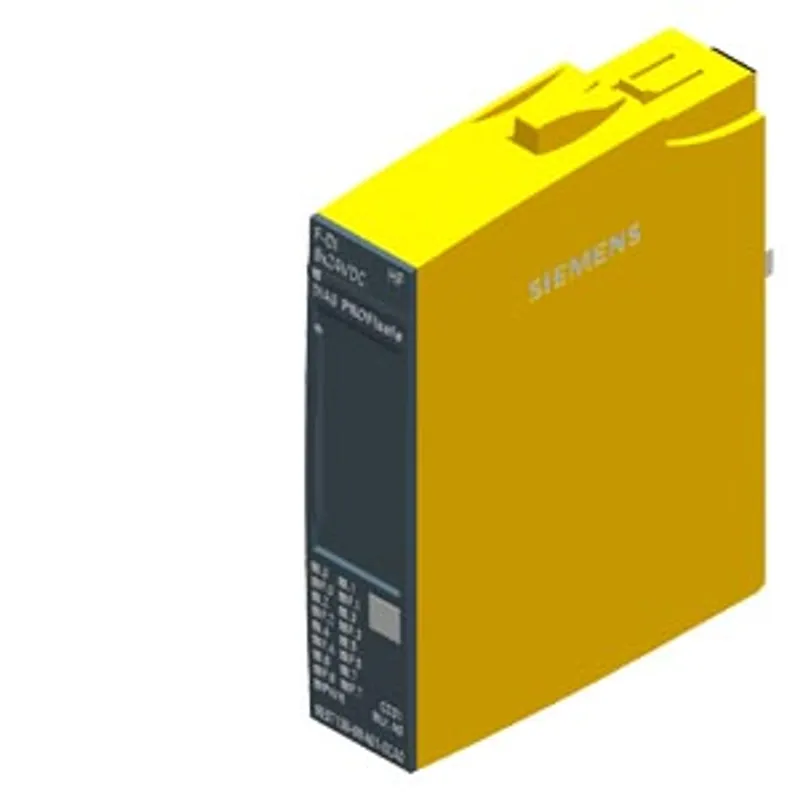

What is the Siemens 6ES7136-6BA01-0CA0?
SIMATIC DP, electronic module for ET 200SP, F-DI 8x 24 V DC HF, 15 mm width, up to PLe (ISO 13849-1)/ SIL3 (IEC 61508)
Specifications
General information
| Product type designation | F-DI 8x24VDC HF |
| Firmware version | V3.0 |
| Firmware version — FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC01 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | SIMATIC Safety V20 and V21 or higher with HSP 0484 |
| Engineering with — STEP 7 configurable/integrated from version | as 6ES7136-6BA00-0CA0 |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.45 |
| Operating mode — DI | Yes |
| Operating mode — Counter | Yes; pulse counting, standstill and speed monitoring |
CiR - Configuration in RUN
| Reparameterization possible in RUN | No |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| power supply according to NEC Class 2 required | No |
Input current
| Current consumption, max. | 40 mA; without load |
Encoder supply
| Number of outputs | 8 |
| 24 V encoder supply — 24 V | Yes; min. L+ (-1.5 V) |
| 24 V encoder supply — Short-circuit protection | Yes; Electronic (response threshold 0.7 A to 1.8 A) |
| 24 V encoder supply — Output current per channel, max. | 300 mA |
| 24 V encoder supply — Output current per module, max. | 800 mA; Total current of all encoders |
Power loss
| Power loss, typ. | 2 W |
Address area
| Address space per module — Inputs | 7 byte; S7-300/400F CPU, 6 byte |
| Address space per module — Outputs | 5 byte; S7-300/400F CPU, 4 byte |
Hardware configuration
| Automatic encoding | Yes |
| Automatic encoding — Electronic coding element type F | Yes |
Digital inputs
| Number of digital inputs | 8 |
| Digital inputs, parameterizable | Yes |
| Sourcing/sinking input | Yes; P-reading |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Digital input functions, parameterizable — Counter | Yes |
| Digital input functions, parameterizable — Counter — Number, max. | 1 |
| Digital input functions, parameterizable — Counter — Counting frequency, max. | 500 Hz |
| Digital input functions, parameterizable — Counter — Counting direction up/down | Yes |
| Input voltage — Rated value (DC) | 24 V |
| Input voltage — for signal "0" | -30 to +5 V |
| Input voltage — for signal "1" | +15 to +30 V |
| Input current — for signal "1", typ. | 3.7 mA |
| Input delay (for rated value of input voltage) — for standard inputs — parameterizable | Yes |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", min. | 0.4 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max. | 20 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", min. | 0.4 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max. | 20 ms |
| Input delay (for rated value of input voltage) — for technological functions — Parameterizable | No |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 500 m |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Alarms — Hardware interrupt | No |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — between the channels and the power supply of the electronics | No |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| Suitable for safety functions | Yes |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 52 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 6.8 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 45.8 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.628 kg |
| Highest safety class achievable in safety mode — Performance level according to ISO 13849-1 | PLe |
| Highest safety class achievable in safety mode — Category according to ISO 13849-1 | Cat. 4 |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | SIL 3 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL3 | < 2.00E-05 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL3 | < 1.00E-09 1/h |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | 0 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | 0 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 4 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Dimensions

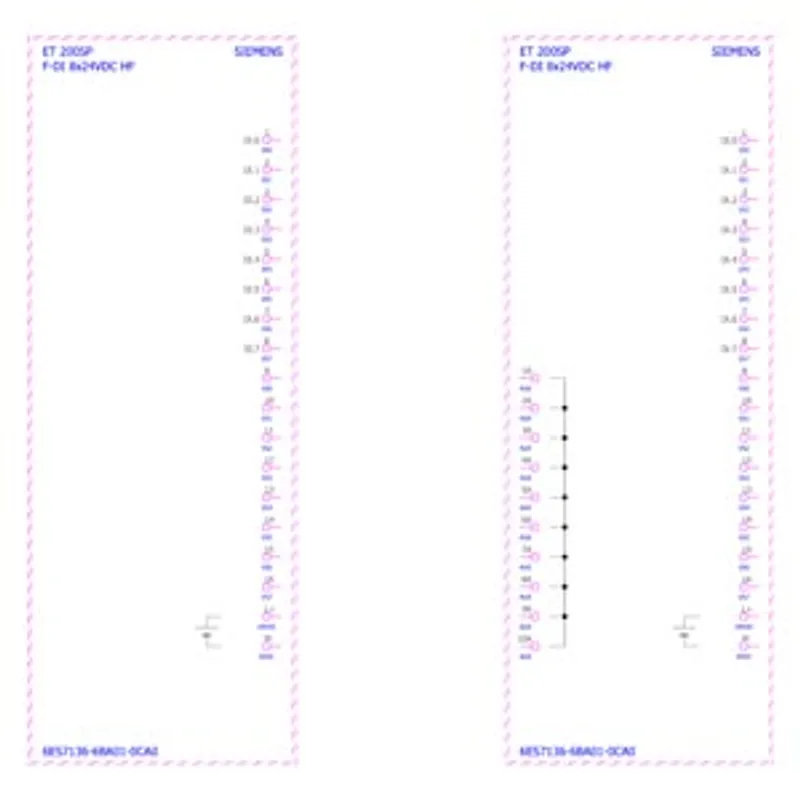

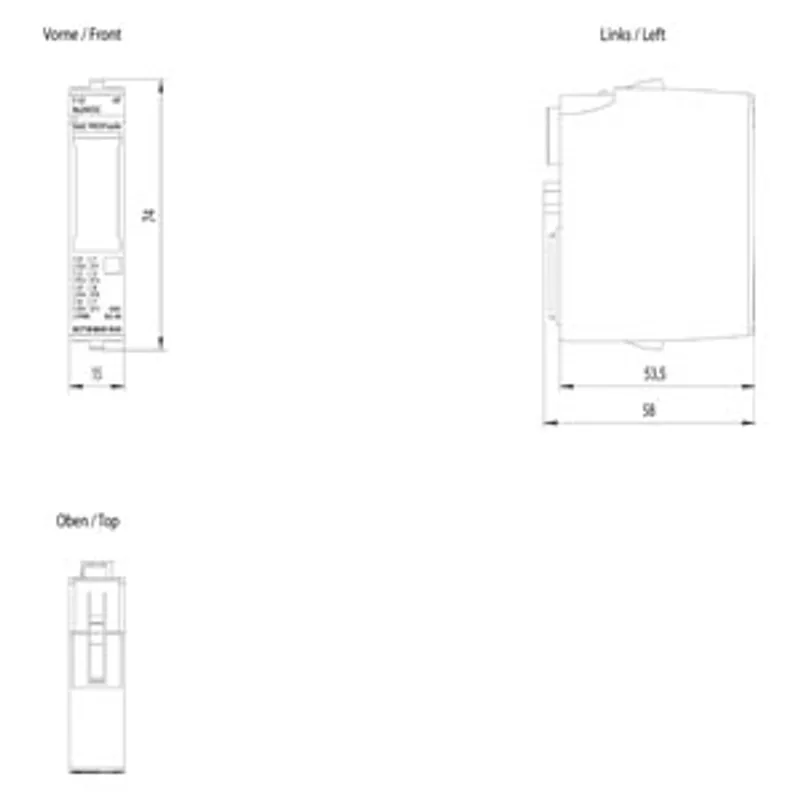

| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 29 g |
