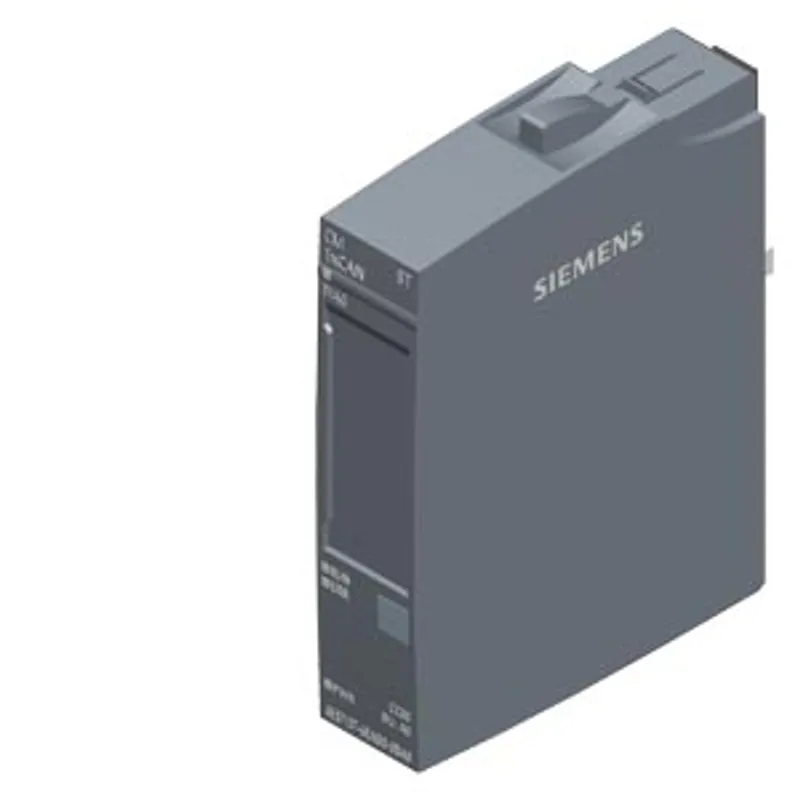

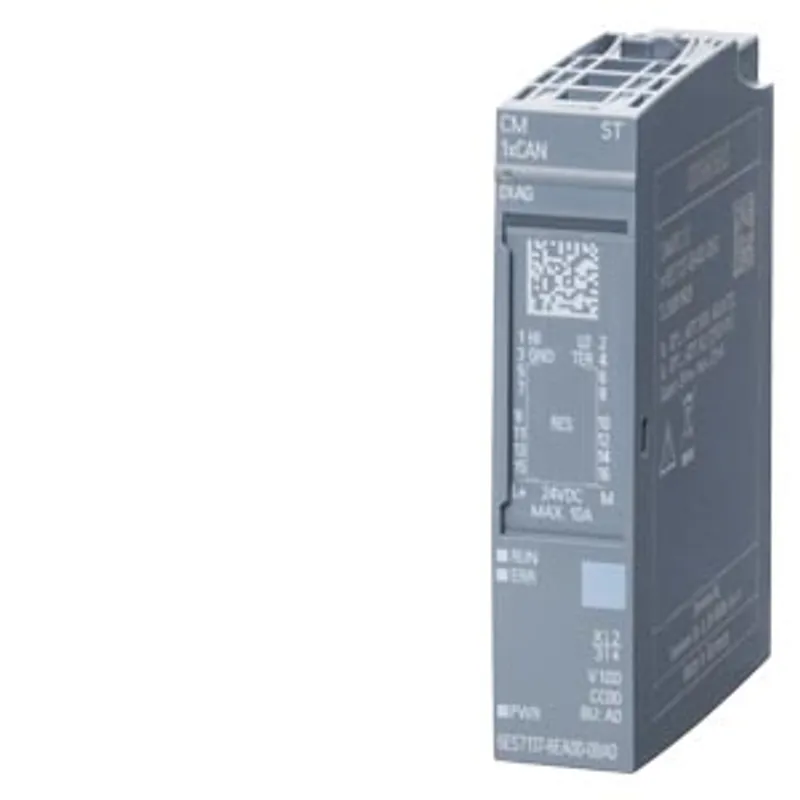

Siemens 6ES7137-6EA00-0BA0
ET 200SP, CM CAN Gateway to CAN or CANopen networks, CAN 2.0A/B, CANopen Manager to CiA301/302
- MPN
- 6ES7137-6EA00-0BA0
- Category
- CM CAN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7137-6EA00-0BA0?
ET 200SP, CM CAN Gateway to CAN or CANopen networks, CAN 2.0A/B, CANopen Manager to CiA301/302, CANopen Slave to CiA301/302, IP20
Specifications
General information
| Product type designation | CM 1x CAN ST |
| Firmware version | V1.2.x |
| Firmware version — FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC00 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Module swapping during operation (hot swapping) | Yes |
| Product function — Isochronous mode | No |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | STEP 7 V15.1 or higher |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
Input current
| Current consumption, typ. | 20 mA |
| Current consumption, max. | 25 mA |
Power loss
| Power loss, typ. | 0.5 W |
Address area
| Address space per module — Address space per module, max. | 256 byte |
1. Interface
| Interface type | CAN according to CiA 303-1 |
| Isolated | Yes; 500 V AC or 707 V DC |
| Interface types — Number of ports | 1 |
| Interface types — Design of the connection | Push-in terminal |
| CAN — CAN operating modes | CAN Standard CAN 2.0A/B; CANopen Manager / Slave acc. to CiA |
| CAN — Specification acc. to CiA | CiA 301 & CiA 302 |
| CAN — Transmission rate, min. | 10 kbit/s |
| CAN — Transmission rate, max. | 1 000 kbit/s |
| CAN — max. number of devices | 60 |
| CAN — Number of SDOs in parallel | 16; Parallel |
| CAN — Number of PDOs | 128; Send / receive |
| CAN — Services — Node/life-guarding | Yes |
| CAN — Services — Heartbeat | Yes |
| CAN — Services — SYNC | Yes |
Interrupts/diagnostics/status information
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — RUN LED | Yes |
| Diagnostics indication LED — ERROR LED | Yes |
| Diagnostics indication LED — MAINT LED | No |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
Potential separation
| between backplane bus and interface | Yes |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| CE mark | Yes |
| UL approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes; Reg. No.: R-R-S49-ET200SPCMCAN |
| EAC (formerly Gost-R) | Yes |
| RoHS conformity | Yes |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 25.2 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 6.15 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 19.4 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.289 kg |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m |
Decentralized operation
| to SIMATIC S7-300 | No |
| to SIMATIC S7-400 | No |
| to SIMATIC S7-1200 | Yes |
| to SIMATIC S7-1500 | Yes |

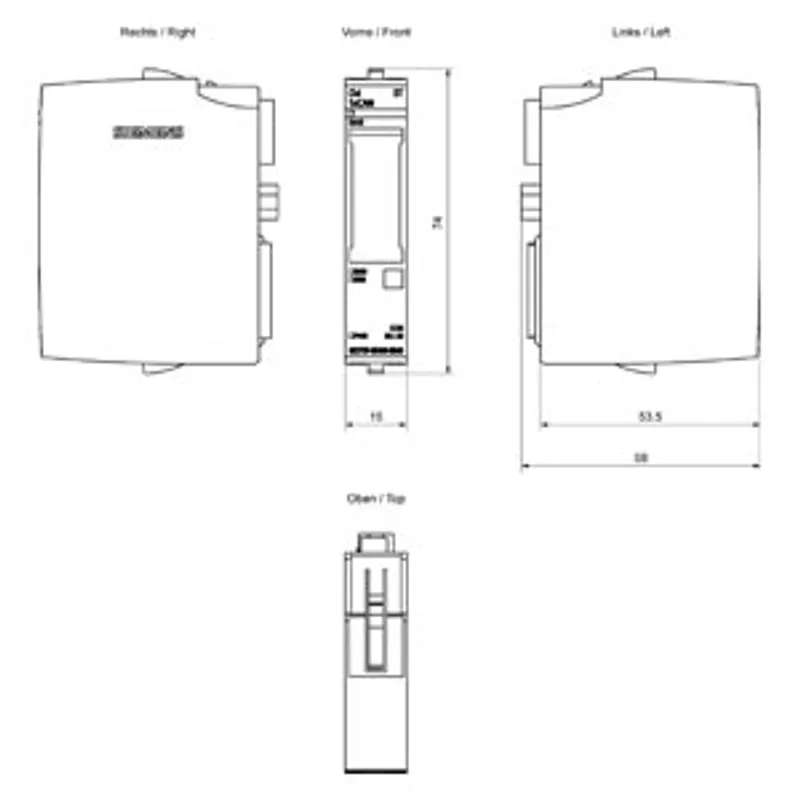

Dimensions
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 32 g |
