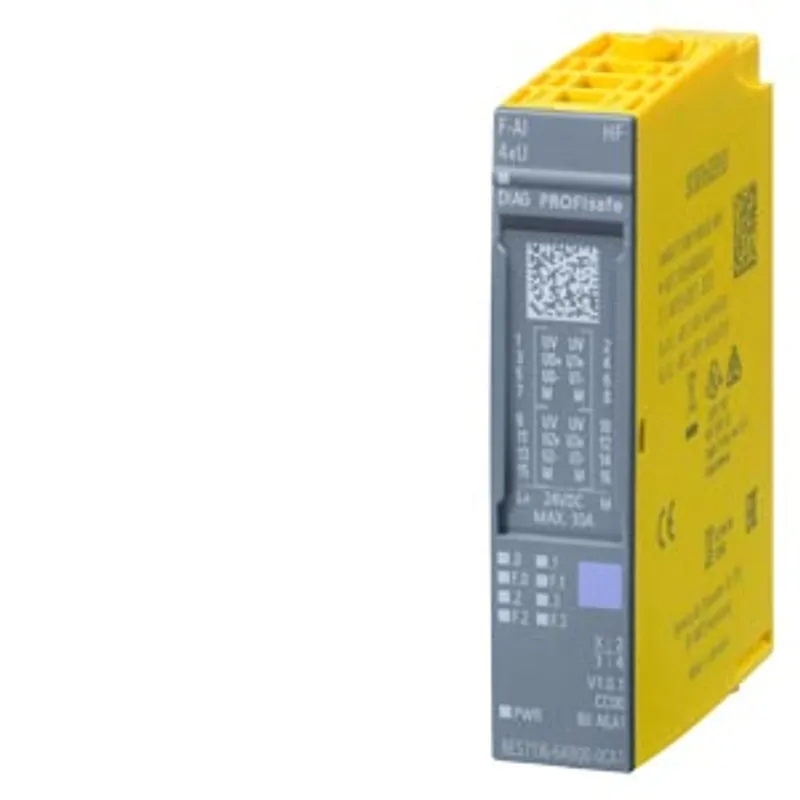

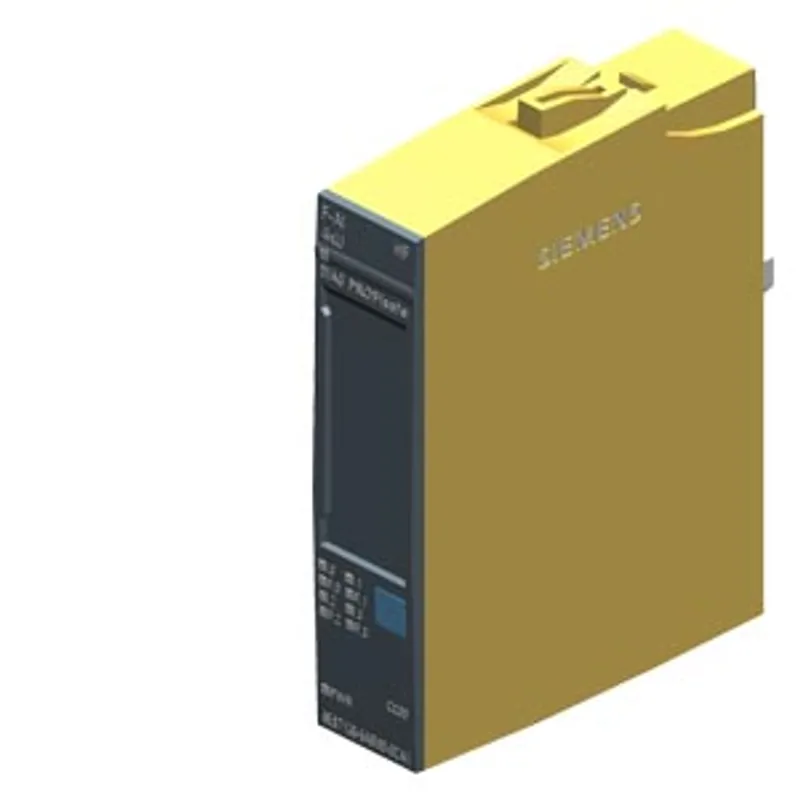

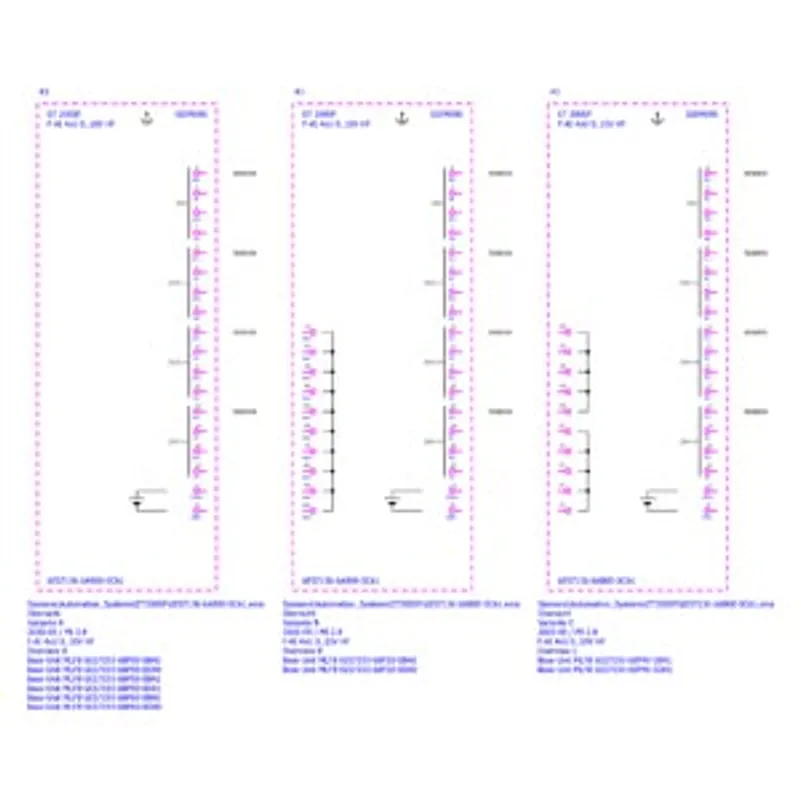

Siemens 6ES7136-6AB00-0CA1
SIMATIC DP, electronics module ET 200SP, F-AI 4xU 0..10V HF, fail-safe analog inputs, up to PL E (ISO 13849)
- MPN
- 6ES7136-6AB00-0CA1
- Category
- Analog F-input modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7136-6AB00-0CA1?
SIMATIC DP, electronics module ET 200SP, F-AI 4xU 0..10V HF, fail-safe analog inputs, up to PL E (ISO 13849), up to SIL 3 (IEC 61508)
Specifications
General information
| Product type designation | F-AI 4XU 0..10V HF |
| Firmware version — FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color-coded label | CC00 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V16 with HSP 308 |
| Operating mode — cyclic measurement | Yes |
| Operating mode — Oversampling | No |
| Operating mode — MSI | No |
CiR - Configuration in RUN
| Reparameterization possible in RUN | No |
| Calibration possible in RUN | No |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| power supply according to NEC Class 2 required | No |
Input current
| Current consumption (rated value) | 0.38 A |
| Current consumption, max. | 0.4 A |
Encoder supply
| 24 V encoder supply — 24 V | Yes; min. L+ (-1.5 V) |
| 24 V encoder supply — Short-circuit protection | Yes |
| 24 V encoder supply — Output current, max. | 300 mA; total current of all encoders/channels |
Power
| Power consumption from the backplane bus | 70 mW |
Power loss
| Power loss, typ. | 2 W |
Address area
| Address space per module — Inputs | 14 byte; S7-300/400F CPU, 13 byte |
| Address space per module — Outputs | 5 byte; S7-300/400F CPU, 4 byte |
Hardware configuration
| Automatic encoding | Yes |
| Automatic encoding — Electronic coding element type H | Yes |
Analog inputs
| Number of analog inputs | 4 |
| Number of analog inputs — For voltage measurement | 4 |
| permissible input voltage for voltage input (destruction limit), max. | 36 V |
| Input ranges (rated values), voltages — 0 to +10 V | Yes |
| Input ranges (rated values), voltages — 0 to +10 V — Input resistance (0 to 10 V) | 16 kΩ |
| Cable length — shielded, max. | 200 m |
Analog value generation for the inputs
| Measurement principle | Sigma Delta |
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 16 bit |
| Integration and conversion time/resolution per channel — Integration time, parameterizable | Yes |
| Integration and conversion time/resolution per channel — Integration time (ms) | 20 / 16,667 |
| Integration and conversion time/resolution per channel — Interference voltage suppression for interference frequency f1 in Hz | 50 / 60 Hz |
| Smoothing of measured values — Number of smoothing levels | 7 |
| Smoothing of measured values — parameterizable | Yes |
| Smoothing of measured values — Step: None | Yes; 1x conversion cycle time |
| Smoothing of measured values — Step: low | Yes; 2x / 4x conversion cycle time |
| Smoothing of measured values — Step: Medium | Yes; 8x / 16x conversion cycle time |
| Smoothing of measured values — Step: High | Yes; 32x / 64x conversion cycle time |
| Smoothing of measured values — Average value filter | Yes |
Encoder
| Connection of signal encoders — for voltage measurement | Yes |
Errors/accuracies
| Linearity error (relative to input range), (+/-) | 0.1 % |
| Temperature error (relative to input range), (+/-) | 0.023 %/K |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.1 % |
| Operational error limit in overall temperature range — Voltage, relative to input range, (+/-) | 2 % |
| Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-) | 0.1 % |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Series mode interference (peak value of interference < rated value of input range), min. | 40 dB |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max. | 10 V |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode interference, min. | 70 dB |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Alarms — Limit value alarm | No |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — between the channels and the power supply of the electronics | Yes |
Permissible potential difference
| between the inputs (UCM) | 10 Vpp |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 88.3 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 13.1 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 76.6 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -1.37 kg |
| Highest safety class achievable in safety mode — Performance level according to ISO 13849-1 | PLe |
| Highest safety class achievable in safety mode — Category according to ISO 13849-1 | Cat. 4 |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | SIL 3 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL3 | < 5.00E-05 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL3 | < 1.00E-09 1/h |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | 0 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | 0 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |

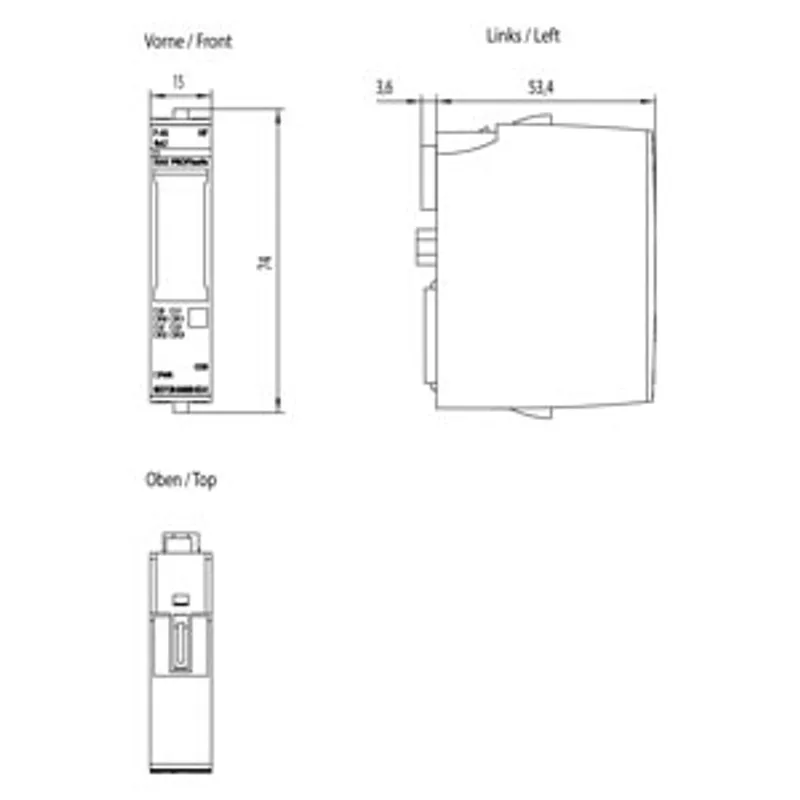

Dimensions
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 48 g |
