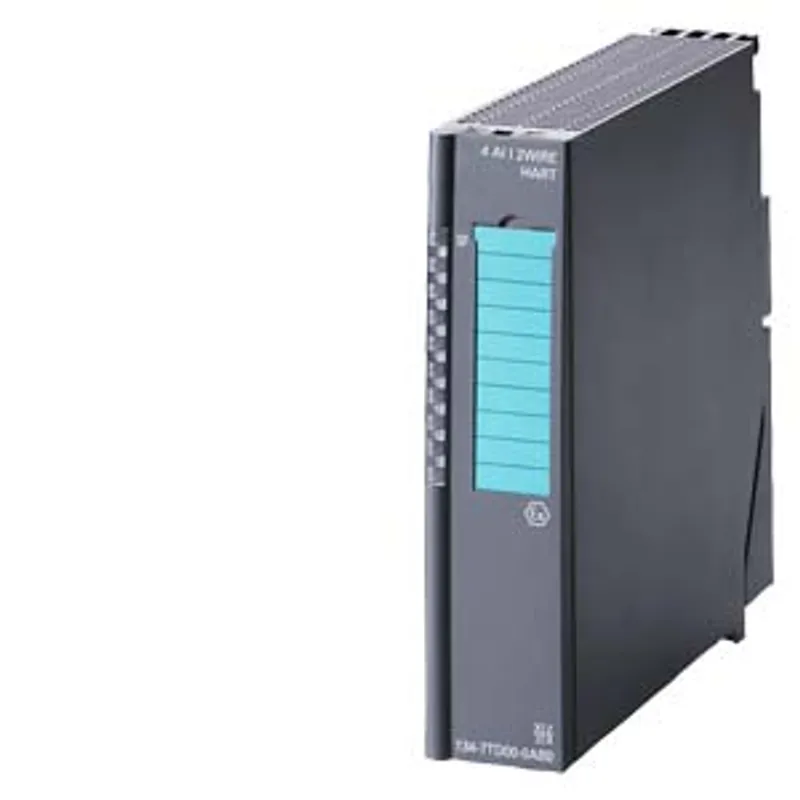

Siemens 6ES7134-7TD00-0AB0

SIMATIC, electronic module for ET200iSP, 4 AI HART, 2-wire transducer

MPN: 6ES7134-7TD00-0AB0
Category: Analog electronic modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7134-7TD00-0AB0?

SIMATIC, electronic module for ET200iSP, 4 AI HART, 2-wire transducer, for connecting HART 2-wire transmitters, supported HART protocol version 6.0, Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, Ex ib [ia] I Mb

Specifications

General information

Product type designation	4AI I 2WIRE HART
HW functional status	17
Firmware version	V3.0.4
Product function — Isochronous mode	No

Installation type/mounting

Rack mounting	No
Front mounting	Yes
Rail mounting	Yes
Wall mounting/direct mounting	No

Supply voltage

Type of supply voltage	DC
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V

Input current

Current consumption, typ.	280 mA
from load voltage (power bus), max.	320 mA

Output voltage

Power supply to the transmitters — short-circuit proof	Yes
Power supply to the transmitters — Supply current, max.	23 mA; per channel

Power loss

Power loss, typ.

2.7 W

Hardware configuration

Fieldbus connection via separate transceiver

Yes

Analog inputs

Number of analog inputs	4
permissible input current for current input (destruction limit), max.	90 mA
Cycle time (all channels) max.	120 ms; 30 ms basic conversion time x4 channels with 60 Hz, 50 Hz interference frequency suppression
Technical unit for temperature measurement adjustable	Yes
Input ranges — Voltage	No
Input ranges — Current	Yes
Input ranges — Thermocouple	No
Input ranges — Resistance thermometer	No
Input ranges — Resistance	No
Input ranges (rated values), currents — 4 mA to 20 mA	Yes
Cable length — shielded, max.	500 m

Analog value generation for the inputs

Measurement principle	integrating (Sigma-Delta)
Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.	13 bit
Integration and conversion time/resolution per channel — Integration time, parameterizable	No
Integration and conversion time/resolution per channel — Interference voltage suppression for interference frequency f1 in Hz	50 / 60 Hz
Smoothing of measured values — Parameterizable	Yes; in 4 stages
Smoothing of measured values — Step: None	Yes; 1x cycle time
Smoothing of measured values — Step: low	Yes; 4x cycle time
Smoothing of measured values — Step: Medium	Yes; 32x cycle time
Smoothing of measured values — Step: High	Yes; 64x cycle time

Encoder

Connection of signal encoders — for current measurement as 2-wire transducer	Yes
Connection of signal encoders — for current measurement as 2-wire transducer — Burden of 2-wire transmitter, max.	750 Ω

Errors/accuracies

Linearity error (relative to input range), (+/-)	0.015 %
Temperature error (relative to input range), (+/-)	0.005 %/K
Crosstalk between the inputs, min.	-50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)	0.01 %
Operational error limit in overall temperature range — Current, relative to input range, (+/-)	0.15 %
Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-)	0.1 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Series mode interference (peak value of interference < rated value of input range), min.	70 dB

Interfaces

Number of PROFINET interfaces

Protocols

PROFINET IO	No
PROFIsafe	No
PROFIBUS	No
Further protocols — other bus systems	No

Interrupts/diagnostics/status information

Alarms — Diagnostic alarm	Yes; Parameterizable
Alarms — Limit value alarm	Yes; Parameterizable
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Wire break	Yes; I load < 3.6 mA
Diagnoses — short-circuit	Yes; I load > 25 mA
Diagnostics indication LED — Group error SF (red)	Yes

Ex(i) characteristics

Module for Ex(i) protection	Yes; for more Co/Lo combinations, see certificate IECEx KEM 05.0006
maximum values for connecting terminals for gas group IIC — Uo (no-load voltage), max.	27.6 V
maximum values for connecting terminals for gas group IIC — Io (short-circuit current), max.	88.2 mA
maximum values for connecting terminals for gas group IIC — Po (power output), max.	610 mW
maximum values for connecting terminals for gas group IIC — Co (permissible external capacity), max.	83 nF
maximum values for connecting terminals for gas group IIC — Lo (permissible external inductivity), max.	3 mH

Potential separation

between channels and powerbus	Yes
Potential separation analog inputs — between the channels	No
Potential separation analog inputs — between the channels and backplane bus	Yes

Degree and class of protection

IP degree of protection

IP30

Standards, approvals, certificates

CE mark	CE 0344
UKCA mark	DEKRA 21UKEX0089 Importer UK: Siemens plc Manchester M20 2UR
cULus	LISTED E334384
FM approval	CLASSIFIED 3025852
Suitable for safety functions	No
INMETRO certificate	UL-BR 12.0072
reference designation according to IEC 81346-2 (2009)	K
Highest safety class achievable in safety mode — acc. to EN 954	n.a.
Highest safety class achievable in safety mode — Performance level according to ISO 13849-1	none
Highest safety class achievable in safety mode — SIL acc. to IEC 61508	No
Use in hazardous areas — ATEX marking	II 2 G (1) G Ex ib [ia Ga] IIC T4 Gb II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb I M2 Ex ib [ia] I Mb
Use in hazardous areas — ATEX certificate	KEMA 04 ATEX 1244
Use in hazardous areas — IECEx	IECEx KEM 05.0006
Use in hazardous areas — CCC Ex	2020322316002941
Use in hazardous areas — EAC Ex	PB Ex ib [ia] I Mb 1Ex ib [ia Ga] IIC T4 Gb [Ex ia Da] IIIC
Use in hazardous areas — FM marking	Class I, Zone 1 AEx ib [ia] IIC T4 Ex ib IIC T4 NI, Class I, DIV.2, GP. A,B,C,D T4 AIS, Class I, DIV.1, GP. A,B,C,D T4 DIP Class II, III, GP. E,F,G
Use in hazardous areas — Explosion protection category for gas	ATEX gas explosion protection, Zone 1
Use in hazardous areas — Explosion protection category for dust	ATEX dust explosion protection, Zone 21 always install in corresponding enclosure
Use in hazardous areas — associated equipment (Ex ia)	Yes
Use in hazardous areas — associated equipment (Ex ib)	Yes
Marine approval — Germanischer Lloyd (GL)	Yes
Marine approval — American Bureau of Shipping (ABS)	Yes
Marine approval — Bureau Veritas (BV)	Yes
Marine approval — Det Norske Veritas (DNV)	Yes

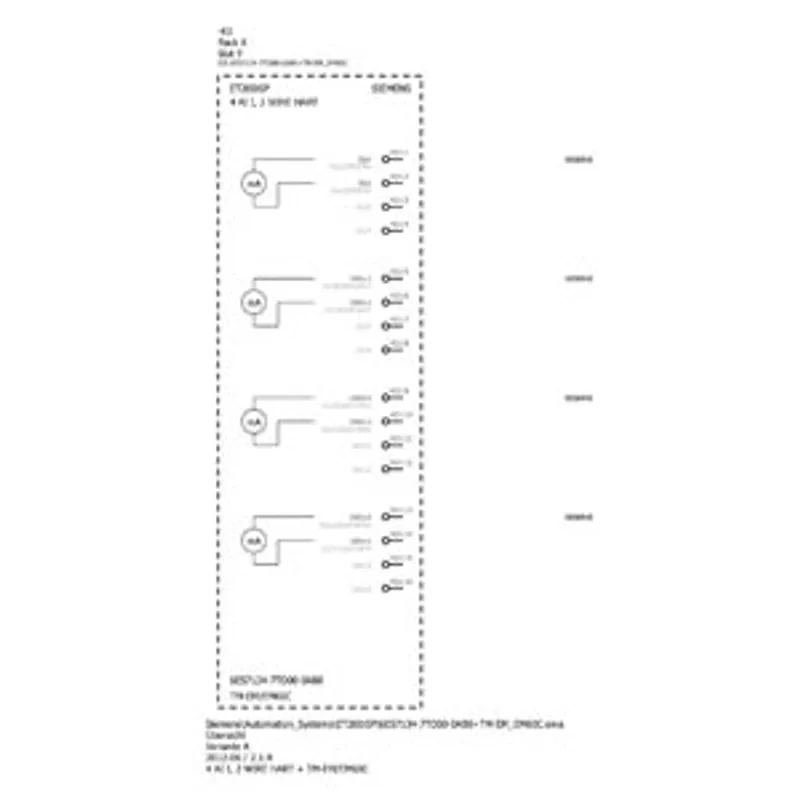

Connection method

Design of electrical connection

Screw/spring-type terminal

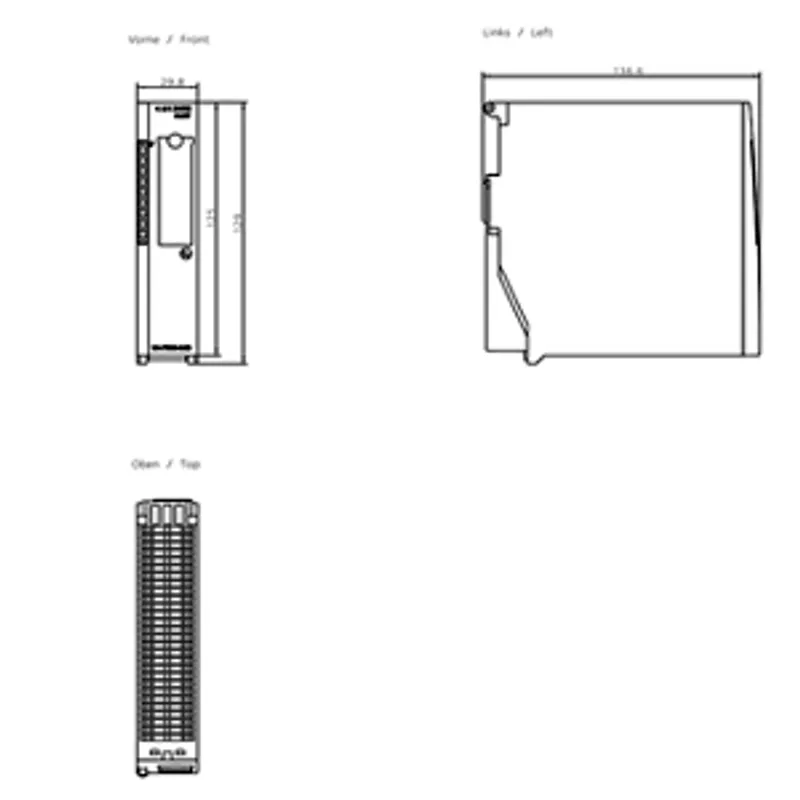

Dimensions

Width	30 mm
Height	129 mm
Depth	136.5 mm

Weights

Weight, approx.

230 g
