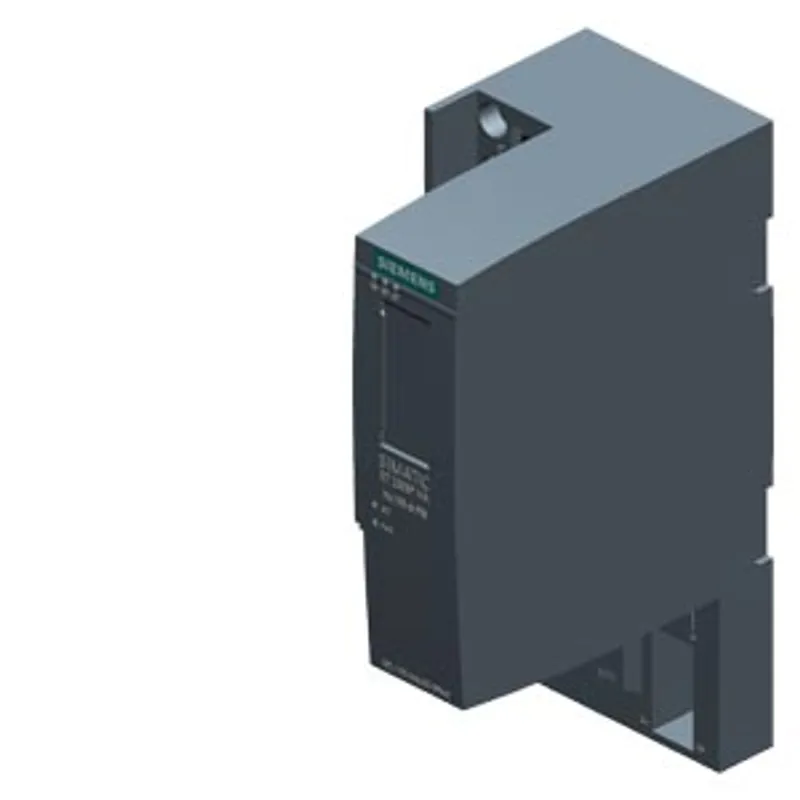

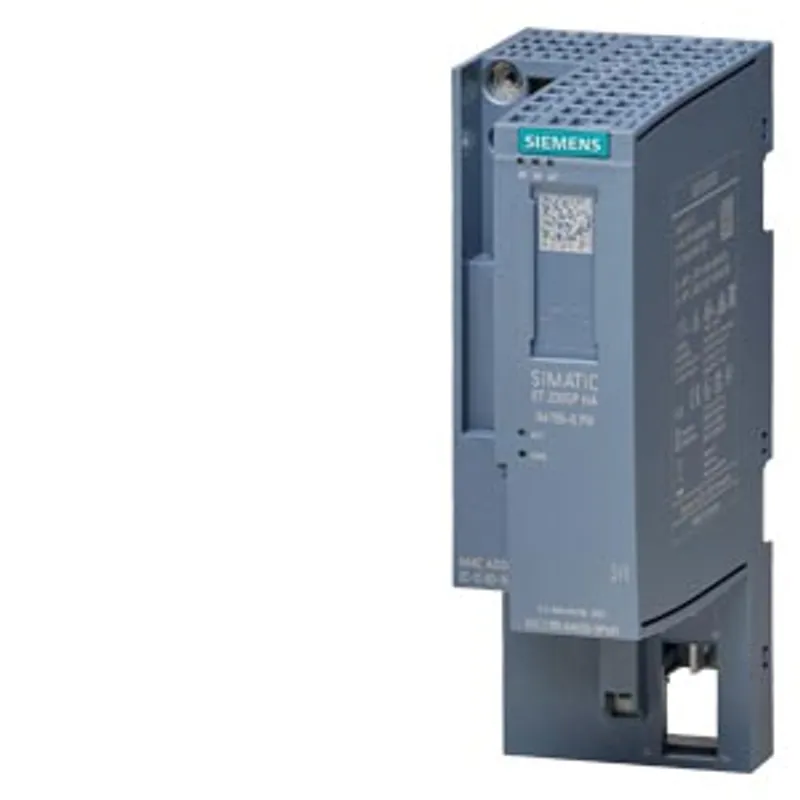

Siemens 6DL1155-6AU00-0PM0
SIMATIC ET 200SP HA, PROFINET interface module IM155-6 PN max. 56 I/O modules, multi-hot swap
- MPN
- 6DL1155-6AU00-0PM0
- Category
- Interface module
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL1155-6AU00-0PM0?
SIMATIC ET 200SP HA, PROFINET interface module IM155-6 PN max. 56 I/O modules, multi-hot swap, without server module
Specifications
General information
| Product type designation | IM 155-6 PN |
| HW functional status | 05 |
| Vendor identification (VendorID) | 02AH |
| Device identifier (DeviceID) | 030FH |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V20 |
| Engineering with — STEP 7 configurable/integrated from version | V5.7.3 |
| Engineering with — PCS 7 configurable/integrated from version | V10.0 SP1 |
| Engineering with — PCS neo can be configured/integrated from version | V6.0 |
Configuration control
| via dataset | No |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 10 ms |
Input current
| Current consumption, max. | 700 mA; +19.2 V to +28.8 V DC |
| Inrush current, max. | 5 A |
| I²t | 0.36 A²·s; Due to increased mains buffering of 10 ms |
Power
| Infeed power to the backplane bus | 7.5 W; no doubling in redundant mode as the infeed power is also designed as redundant |
Power loss
| Power loss, typ. | 2.4 W |
Address area
| Address space per module — Address space per module, max. | 256 byte |
| Address space per station — Address space per station, max. | 1 440 byte; 1 440 bytes R1 and S1 without CiR, otherwise 1 000 bytes |
Hardware configuration
| Integrated power supply | Yes; 24 V DC |
| Rack — Modules per rack, max. | 56; 56 slots for I/O modules + server module (width without IM ≤ 1.3 m) |
Time stamp
| Accuracy | 1 ms; In compliance with the supplementary conditions described in the Equipment Manual |
Interfaces
| Number of PROFINET interfaces | 1; 2 ports (switch) |
1. Interface
| Interface types — Number of ports | 2; via BusAdapter |
| Interface types — integrated switch | Yes |
| Interface types — BusAdapter (PROFINET) | Yes |
| Protocols — PROFINET IO device | Yes |
| Protocols — Open IE communication | Yes |
| Protocols — Media redundancy | Yes; as MRP client |
Interface types
| RJ 45 (Ethernet) — Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| RJ 45 (Ethernet) — 100 Mbps | Yes |
| RJ 45 (Ethernet) — Autonegotiation | Yes |
| RJ 45 (Ethernet) — Autocrossing | Yes |
Protocols
| Supports protocol for PROFINET IO | Yes |
| Redundancy mode — PROFINET system redundancy (S2) | Yes; S2, R1 |
| Redundancy mode — Media redundancy — MRP | Yes |
| Open IE communication — TCP/IP | Yes |
| Open IE communication — SNMP | Yes |
| Open IE communication — LLDP | Yes |
Interrupts/diagnostics/status information
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — ACT LED | Yes; green LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| Diagnostics indication LED — Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
Potential separation
| between PROFINET and all other circuits | Yes; 1 500 V AC |
| between supply and all other circuits | Yes; Type tested with 1 500 V DC |
Permissible potential difference
| between different circuits | Safety extra low voltage SELV |
Isolation
| Isolation tested with | 1 500 V DC/1 min, type test |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 70 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 60 °C |

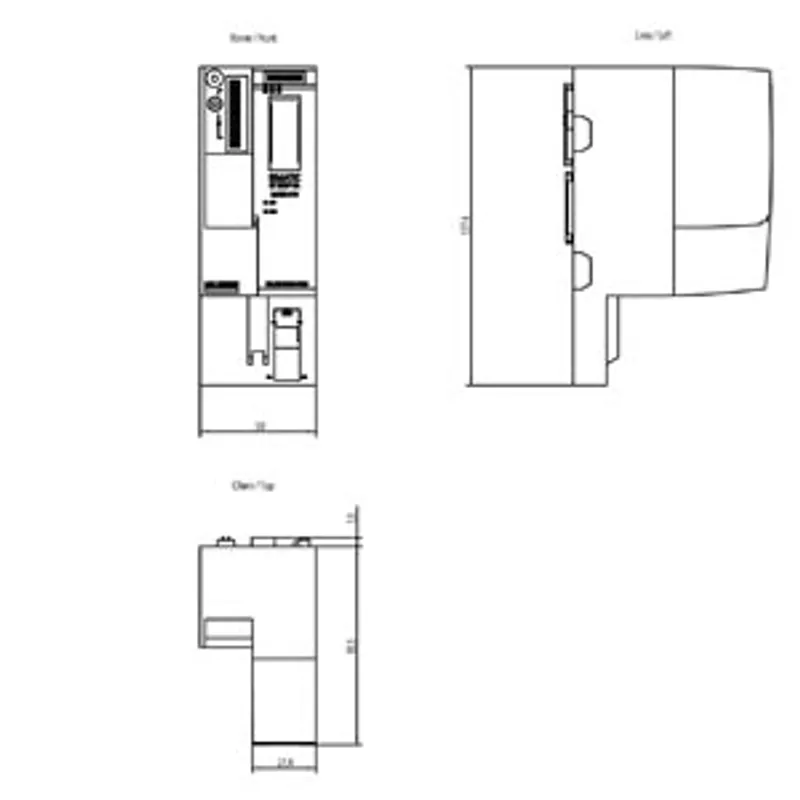

Dimensions
| Width | 50 mm |
| Height | 138 mm |
| Depth | 89 mm |
Weights
| Weight, approx. | 192 g; without BusAdapter |
