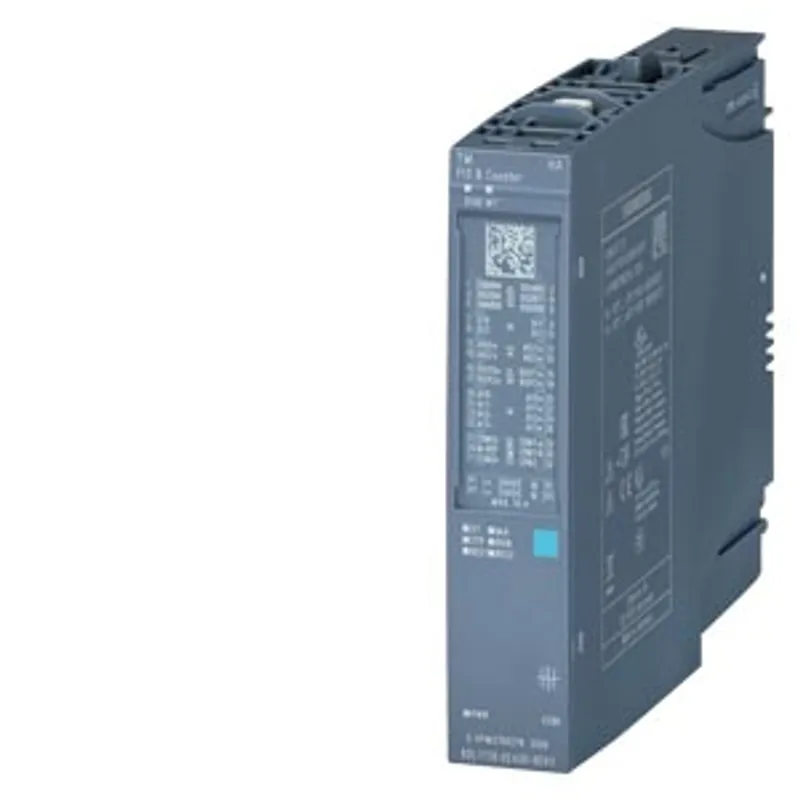

Siemens 6DL1138-6EA00-0EH1

SIMATIC ET 200SP HA, Fast Multi IO and counter 4xAI, 8xAQ, 4xDI, 6xDI/DQ suitable for terminal block H1, M1

MPN: 6DL1138-6EA00-0EH1
Category: Technology modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6DL1138-6EA00-0EH1?

SIMATIC ET 200SP HA, Fast Multi IO and counter 4xAI, 8xAQ, 4xDI, 6xDI/DQ suitable for terminal block H1, M1, color code CC00,

Specifications

General information

Product type designation	Fast Multi IO & Counter
HW functional status	FS04
Firmware version	V1.2
Firmware version — FW update possible	Yes
Usable terminal block	Type H1, M1, H0, M0 (for details see the system manual)
Color code for module-specific color-coded label	CC00
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Engineering with — STEP 7 TIA Portal configurable/integrated from version	V18
Engineering with — STEP 7 configurable/integrated from version	V5.6 with HSP 298 or higher
Engineering with — PCS 7 configurable/integrated from version	V9.1 SP1
Engineering with — SPPA-T3000 can be configured/integrated from version	V8.2 SP2
Operating mode — DI	Yes
Operating mode — Counter	Yes
Operating mode — DQ	Yes
Redundancy — Redundancy capability	Yes; With TB type M1

CiR - Configuration in RUN

Reparameterization possible in RUN

Yes

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption (rated value)	150 mA; without load
Current consumption, max.	2 A; At 24 V DC
from backplane bus 24 V DC, max.	21 mA

Encoder supply

Number of outputs	6; max. depending on parameterization
Output voltage (DC)	24 V
Output voltage, min.	18.2 V
Short-circuit protection	Yes; per channel, electronic
24 V encoder supply — 24 V	Yes
24 V encoder supply — Short-circuit protection	Yes; per channel, electronic
24 V encoder supply — Output current per channel, max.	0.5 A
24 V encoder supply — Output current per module, max.	2 A

Power loss

Power loss, typ.

4 W

Address area

Address space per module — Address space per module, max.

130 byte; Quick input and output: 30 bytes. Of which 13 bytes for inputs, 17 bytes for outputs. Quick input and output and counter function: 130 bytes. Of which 57 bytes for inputs, 73 bytes for outputs. Quick input and output and speed measurement: 42 bytes. Of which 25 bytes for inputs, 17 bytes for outputs

Hardware configuration

Automatic encoding — Mechanical coding element

Yes; A, B coding; mounting position B8

Digital inputs

Number of digital inputs	10; Of these, 6 combined DI/DQ
Digital inputs, parameterizable	Yes
Sourcing/sinking input	Yes; DI0 ... DI3 (param.); sinking DIDQ4 ... DIDQ9
Input characteristic curve in accordance with IEC 61131, type 1	Yes
Pulse extension	Yes
Pulse extension — Length	2 s; off, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s
Digital input functions, parameterizable — Gate start/stop	Yes; Selectable: Standard DI, encoder signals A, B, N, gate start, gate stop, set counter
Digital input functions, parameterizable — Freely usable digital input	Yes
Digital input functions, parameterizable — Counter	Yes
Digital input functions, parameterizable — Counter — Number, max.	4
Digital input functions, parameterizable — Counter — Counting frequency, max.	70 kHz; 70 kHz for DI; 7 kHz for DI/DQ; each for P/M encoder and 50 m cable length; 10 kHz for DI; 0.7 kHz for DI/DQ; each for P encoder and 50 m cable length
Digital input functions, parameterizable — Counter — Counting width	32 bit
Digital input functions, parameterizable — Counter — Counting direction up/down	Yes
Digital input functions, parameterizable — Digital input with oversampling — Number, max.	4
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	0 ... 5 V
Input voltage — for signal "1"	+11 to +30V
Input current — for signal "1", typ.	2.6 mA; 2.6 mA DI, 3.5 mA DIDQ
Input delay (for rated value of input voltage) — for standard inputs — parameterizable	Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length)
Input delay (for rated value of input voltage) — for technological functions — Parameterizable	Yes; Adjustable filter: 5 µs, 25 µs
Cable length — shielded, max.	1 000 m

Digital outputs

Number of digital outputs	6; max. depending on parameterization
Current-sinking	No
Current-sourcing	Yes
Digital outputs, parameterizable	Yes
Short-circuit protection	Yes
Short-circuit protection — Response threshold, typ.	0.95 A
Open-circuit detection	Yes
Open-circuit detection — Response threshold, typ.	45 mA
Overload protection	Yes
Overload protection — Response threshold, typ.	950 mA
Limitation of inductive shutdown voltage to	L+ -(37 to 41V)
Controlling a digital input	Yes
Digital output functions, parameterizable — Switching tripped by comparison values	Yes; As output signal of a high-speed counter
Digital output functions, parameterizable — Switching tripped by comparison values — Hysteresis	Yes; Parameterizable
Digital output functions, parameterizable — Freely usable digital output	Yes
Switching capacity of the outputs — with resistive load, max.	0.5 A
Load resistance range — lower limit	48 Ω
Output voltage — for signal "1", min.	18.1 V
Output current — for signal "1" rated value	0.5 A
Output delay with resistive load — "0" to "1", typ.	1 ms
Output delay with resistive load — "1" to "0", typ.	100 µs
Parallel switching of two outputs — for logic links	No
Parallel switching of two outputs — for uprating	No
Parallel switching of two outputs — for redundant control of a load	Yes
Switching frequency — with resistive load, max.	800 Hz
Total current of the outputs — Current per channel, max.	0.5 A
Total current of the outputs — Current per module, max.	2 A
Cable length — shielded, max.	1 000 m

Analog inputs

Number of analog inputs	4
permissible input voltage for voltage input (destruction limit), max.	30 V
permissible input current for current input (destruction limit), max.	50 mA; Protection available against destruction
Input ranges (rated values), voltages — 0 to +10 V	Yes
Input ranges (rated values), voltages — 0 to +10 V — Input resistance (0 to 10 V)	100 kΩ
Input ranges (rated values), voltages — 10 V to +10 V	Yes
Input ranges (rated values), voltages — 10 V to +10 V — Input resistance (-10 V to +10 V)	100 kΩ
Input ranges (rated values), currents — 0 to 20 mA	Yes; 0 mA or 4 mA to 20 mA
Input ranges (rated values), currents — 0 to 20 mA — Input resistance (0 to 20 mA)	70 Ω
Input ranges (rated values), currents — 20 mA to +20 mA	Yes
Input ranges (rated values), currents — 20 mA to +20 mA — Input resistance (-20 mA to +20 mA)	70 Ω
Input ranges (rated values), currents — 4 mA to 20 mA	Yes; and 0 to 20 mA
Input ranges (rated values), currents — 4 mA to 20 mA — Input resistance (4 mA to 20 mA)	70 Ω
Cable length — shielded, max.	600 m

Analog outputs

Number of analog outputs	8; 4 AQ-I, 4 AQ-U
Voltage output, short-circuit protection	Yes; per channel, electronic to chassis
Voltage output, short-circuit current, max.	10 mA
Current output, no-load voltage, max.	24 V
Output ranges, voltage — 10 V to +10 V	Yes
Output ranges, current — 0 to 20 mA	Yes
Output ranges, current — 20 mA to +20 mA	Yes; ±30 mA, ±50 mA
Output ranges, current — 4 mA to 20 mA	Yes
Connection of actuators — for voltage output two-wire connection	Yes
Load impedance (in rated range of output) — with current outputs, max.	330 Ω; 150 ohms at ±50 mA

Analog value generation for the inputs

Measurement principle	integrating (Sigma-Delta)
Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.	24 bit
Smoothing of measured values — Parameterizable	Yes
Smoothing of measured values — Step: None	Yes
Smoothing of measured values — Step: low	Yes
Smoothing of measured values — Step: Medium	Yes
Smoothing of measured values — Step: High	Yes

Analog value generation for the outputs

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.

16 bit

Encoder

Connection of signal encoders — for voltage measurement	Yes
Connection of signal encoders — for current measurement as 2-wire transducer	Yes
Connectable encoders — Single contact / changeover contact unconnected	Yes
Connectable encoders — 2-wire sensor	Yes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.	1.5 mA

Errors/accuracies

Linearity error (relative to input range), (+/-)	0.05 %
Temperature error (relative to input range), (+/-)	0.0025 %/K
Crosstalk between the inputs, min.	60 dB
Operational error limit in overall temperature range — Voltage, relative to input range, (+/-)	0.3 %
Operational error limit in overall temperature range — Current, relative to input range, (+/-)	0.3 %

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Wire break	Yes; AI 4 ... 20 mA, AQ, DQ, DI 0 ... 3
Diagnoses — Short-circuit to ground	Yes; Encoder supply to M, channel by channel
Diagnoses — Short-circuit to L+	Yes; Analog inputs
Diagnoses — Group error	Yes
Diagnoses — Overflow/Underflow	Yes
Diagnostics indication LED — RUN LED	Yes; green LED
Diagnostics indication LED — MAINT LED	Yes; Yellow LED
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Integrated Functions

Frequency measurement	Yes; Speed measurement
Counting functions — Continuous counting	Yes
Counting functions — Counter response parameterizable	Yes
Counting functions — Hardware gate via digital input	Yes
Counting functions — Software gate	Yes
Measuring functions — Dynamic measurement period adjustment	Yes; Speed measurement
Measuring functions — Measuring range — Frequency measurement, min.	0.1 Hz
Measuring functions — Measuring range — Frequency measurement, max.	70 kHz; 70 kHz for DI; 7 kHz for DI/DQ; each for P/M encoder and 50 m cable length; 10 kHz for DI; 0.7 kHz for DI/DQ; each for P encoder and 50 m cable length

Potential separation

Potential separation channels — between the channels and backplane bus

Yes

Permissible potential difference

between different circuits

75 V DC/60 V AC between L+ and backplane bus

Isolation

Isolation tested with

1 500 V DC/1 min, type test

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C
Ambient temperature during operation — horizontal installation, max.	70 °C; Observe derating
Ambient temperature during operation — vertical installation, min.	-40 °C
Ambient temperature during operation — vertical installation, max.	60 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	3 500 m

Dimensions

Width	22.5 mm
Height	115 mm
Depth	138 mm

Weights

Weight, approx.

200 g
