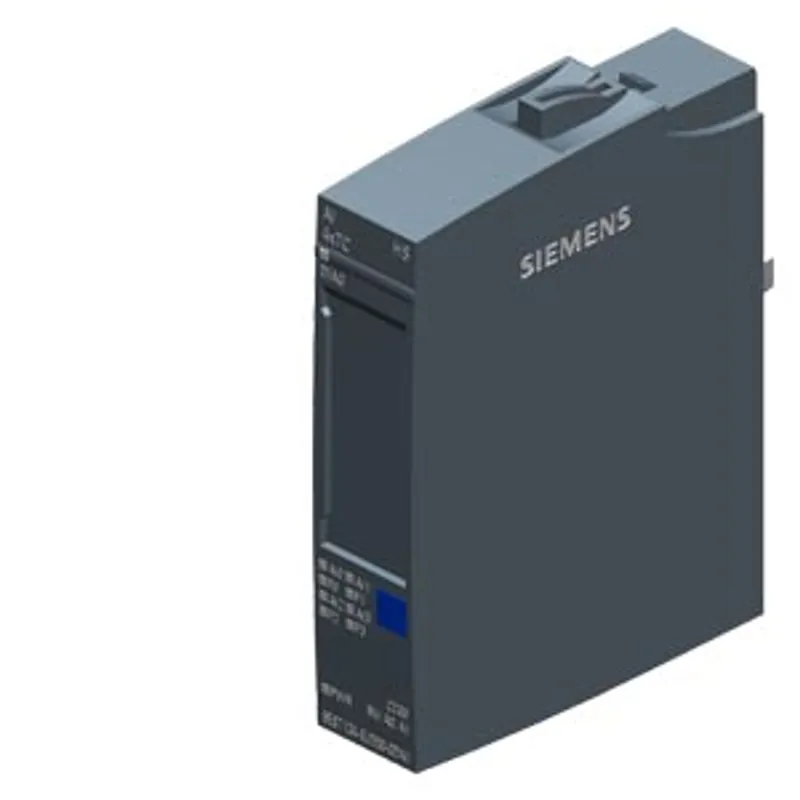

Siemens 6AG1134-6JD00-2DA1

Q: When can 6AG1134-6JD00-2DA1 be shipped?

6AG1134-6JD00-2DA1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6AG1134-6JD00-2DA1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6AG1134-6JD00-2DA1 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG1134-6JD00-2DA1, subject to availability and destination.

SIPLUS ET 200SP AI 4xTC HS based on 6ES7134-6JD00-0DA1 with conformal coating, -40…+60 °C

MPN: 6AG1134-6JD00-2DA1
Category: SIPLUS analog inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6AG1134-6JD00-2DA1?

SIPLUS ET 200SP AI 4xTC HS based on 6ES7134-6JD00-0DA1 with conformal coating, -40…+60 °C, analog input module, suitable for BU type A0, A1, color code CC00, channel diagnostics, 16 bit, +/-0.1%,

Specifications

General information

Product type designation	AI 4xTC HS
Firmware version — FW update possible	Yes
based on	6ES7134-6JD00-0DA1
usable BaseUnits	BU type A0, A1
Color code for module-specific color-coded label	CC00
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Product function — Measuring range scalable	Yes
Engineering with — STEP 7 TIA Portal configurable/integrated from version	see entry ID: 109746275
Operating mode — Oversampling	No
Operating mode — MSI	Yes

CiR - Configuration in RUN

Reparameterization possible in RUN	Yes
Calibration possible in RUN	Yes

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption (rated value)	37 mA
Current consumption, max.	50 mA

Power loss

Power loss, typ.

0.9 W

Address area

Address space per module — Address space per module, max.

16 byte; + 1 byte for QI information

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	Type A
Selection of BaseUnit for connection variants — 2-wire connection	BU type A0, A1

Analog inputs

Number of analog inputs	4
permissible input voltage for voltage input (destruction limit), max.	30 V
Cycle time (all channels), min.	5 ms; Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels)
Technical unit for temperature measurement adjustable	Yes; °C/°F/K
Input ranges (rated values), voltages — 1 V to +1 V	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 1 V to +1 V — Input resistance (-1 V to +1 V)	1 MΩ
Input ranges (rated values), voltages — 250 mV to +250 mV	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 250 mV to +250 mV — Input resistance (-250 mV to +250 mV)	1 MΩ
Input ranges (rated values), voltages — 50 mV to +50 mV	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 50 mV to +50 mV — Input resistance (-50 mV to +50 mV)	1 MΩ
Input ranges (rated values), voltages — 80 mV to +80 mV	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 80 mV to +80 mV — Input resistance (-80 mV to +80 mV)	1 MΩ
Input ranges (rated values), thermocouples — Type B	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type B — Input resistance (Type B)	1 MΩ
Input ranges (rated values), thermocouples — Type C	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type C — Input resistance (Type C)	1 MΩ
Input ranges (rated values), thermocouples — Type E	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type E — Input resistance (Type E)	1 MΩ
Input ranges (rated values), thermocouples — Type J	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type J — Input resistance (type J)	1 MΩ
Input ranges (rated values), thermocouples — Type K	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type K — Input resistance (Type K)	1 MΩ
Input ranges (rated values), thermocouples — Type L	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type L — Input resistance (Type L)	1 MΩ
Input ranges (rated values), thermocouples — Type N	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type N — Input resistance (Type N)	1 MΩ
Input ranges (rated values), thermocouples — Type R	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type R — Input resistance (Type R)	1 MΩ
Input ranges (rated values), thermocouples — Type S	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type S — Input resistance (Type S)	1 MΩ
Input ranges (rated values), thermocouples — Type T	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type T — Input resistance (Type T)	1 MΩ
Input ranges (rated values), thermocouples — Type U	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type U — Input resistance (Type U)	1 MΩ
Input ranges (rated values), thermocouples — Type TXK/TXK(L) to GOST	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type TXK/TXK(L) to GOST — Input resistance (Type TXK/TXK(L) to GOST)	1 MΩ
Thermocouple (TC) — Temperature compensation — parameterizable	Yes
Thermocouple (TC) — Temperature compensation — Reference channel of the module	No
Thermocouple (TC) — Temperature compensation — internal comparison point	Yes; with BaseUnit type A1
Thermocouple (TC) — Temperature compensation — Reference channel of the group	Yes
Thermocouple (TC) — Temperature compensation — Number of reference channel groups	4; Group 0 to 3
Thermocouple (TC) — Temperature compensation — fixed reference temperature	Yes
Cable length — shielded, max.	200 m; 100 m for thermocouples

Analog value generation for the inputs

Measurement principle	integrating (Sigma-Delta)
Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.	16 bit
Integration and conversion time/resolution per channel — Integration time, parameterizable	Yes
Integration and conversion time/resolution per channel — Basic conversion time, including integration time (ms) — additional processing time for wire-break check	1 ms
Integration and conversion time/resolution per channel — Interference voltage suppression for interference frequency f1 in Hz	16.6 / 50 / 60 Hz / off
Integration and conversion time/resolution per channel — Conversion time (per channel)	180/60/50/1.25 ms
Smoothing of measured values — Number of smoothing levels	4; None; 4/8/16 times
Smoothing of measured values — Parameterizable	Yes
Smoothing of measured values — Step: None	Yes
Smoothing of measured values — Step: low	Yes
Smoothing of measured values — Step: Medium	Yes
Smoothing of measured values — Step: High	Yes

Encoder

Connection of signal encoders — for voltage measurement

Yes

Errors/accuracies

Linearity error (relative to input range), (+/-)	0.01 %
Temperature error (relative to input range), (+/-)	0.005 %/K
Crosstalk between the inputs, min.	-70 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)	0.03 %
Operational error limit in overall temperature range — Voltage, relative to input range, (+/-)	0.2 %; 0.5 % when voltage frequency converter OFF
Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-)	0.05 %; 0.2 % when SFU OFF
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Series mode interference (peak value of interference < rated value of input range), min.	70 dB
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max.	60 V; DC
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode interference, min.	90 dB

Interrupts/diagnostics/status information

Diagnostics function	Yes
Alarms — Diagnostic alarm	Yes
Alarms — Limit value alarm	Yes; two upper and two lower limit values in each case
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Wire break	Yes; channel by channel
Diagnoses — Group error	Yes
Diagnoses — Overflow/Underflow	Yes; channel by channel
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	Yes; red LED
Diagnostics indication LED — for module diagnostics	Yes; green/red LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — between the channels and the power supply of the electronics	Yes

Permissible potential difference

between the inputs (UCM)

60 V DC

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for applications according to AMS 2750	Yes; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9	Yes; Based on AMS 2750 E

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C; = Tmin (incl. condensation/frost)
Ambient temperature during operation — horizontal installation, max.	60 °C; = Tmax; +70 °C with configured empty slots to the left and right of the module
Ambient temperature during operation — vertical installation, min.	-40 °C; = Tmin (incl. condensation/frost)
Ambient temperature during operation — vertical installation, max.	50 °C; = Tmax
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max.	100 %; RH incl. condensation/frost (no commissioning under condensation conditions)
Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants	Yes; Incl. diesel and oil droplets in the air
Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3	Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3	Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3	Yes; Class 3S4 incl. sand, dust, *
Resistance — Use in stationary industrial systems — Against mechanical environmental conditions acc. to EN 60721-3-3	Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6	Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6	Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6	Yes; Class 6S3 incl. sand, dust; *
Resistance — Use on ships/at sea — Against mechanical environmental conditions acc. to EN 60721-3-6	Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4	Yes; Class 3 (excluding trichlorethylene)
Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04	Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04	* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086	Yes; Class 2 for high reliability
Conformal coating — Protection against fouling acc. to EN 60664-3	Yes; Type 1 protection
Conformal coating — Military testing according to MIL-I-46058C, Amendment 7	Yes; Discoloration of coating possible during service life
Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A	Yes; Conformal coating, Class A

Dimensions

Width	15 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

33 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6AG1134-6JD00-2DA1PDF
