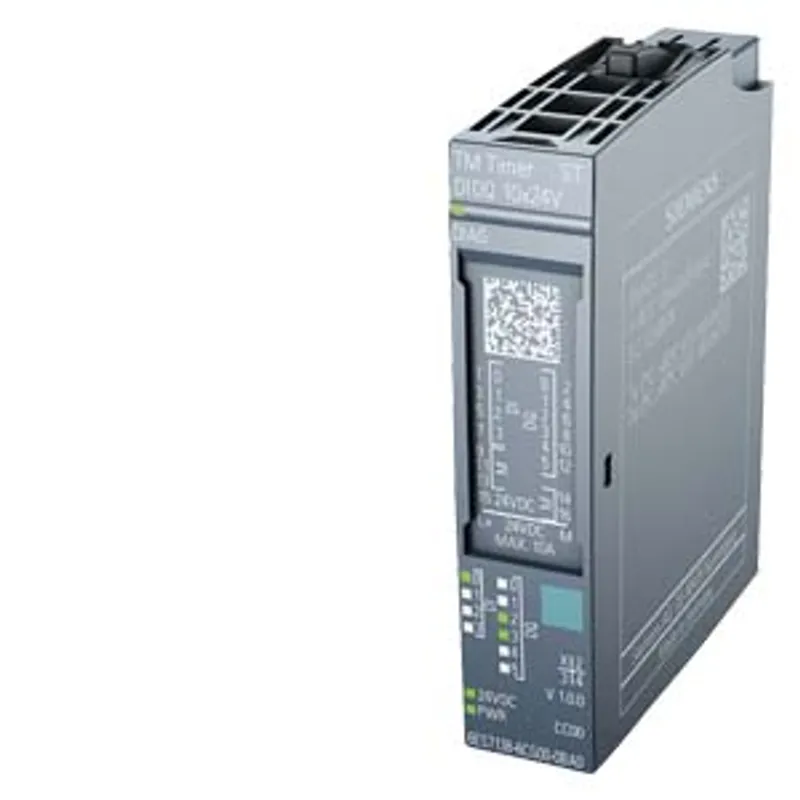

Siemens 6AG1138-6CG00-2BA0

Q: When can 6AG1138-6CG00-2BA0 be shipped?

6AG1138-6CG00-2BA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6AG1138-6CG00-2BA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6AG1138-6CG00-2BA0 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG1138-6CG00-2BA0, subject to availability and destination.

SIPLUS ET 200SP TM timer DIDQ 10x24V based on 6ES7138-6CG00-0BA0 with conformal coating, -40…+60 °C

MPN: 6AG1138-6CG00-2BA0
Category: SIPLUS TM Timer DIDQ 10x24 V time-based IO module

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6AG1138-6CG00-2BA0?

SIPLUS ET 200SP TM timer DIDQ 10x24V based on 6ES7138-6CG00-0BA0 with conformal coating, -40…+60 °C, time-controlled digital inputs and outputs 4 DI, 6 DQ with time stamp count, PWM, oversampling

Specifications

General information

Product type designation	TM Timer DIDQ 10x24V
based on	6ES7138-6CG00-0BA0
usable BaseUnits	BU type A0
Product function — I&M data	Yes; I&M 0
Product function — Isochronous mode	Yes
Engineering with — STEP 7 TIA Portal configurable/integrated from version	see entry ID: 109746275

Supply voltage

Rated value (DC)	24 V
Load voltage L+ — Rated value (DC)	24 V
Load voltage L+ — permissible range, lower limit (DC)	19.2 V
Load voltage L+ — permissible range, upper limit (DC)	28.8 V
Load voltage L+ — Reverse polarity protection	Yes; against destruction

Input current

Current consumption, max.

50 mA; without load

Encoder supply

Number of outputs	1
24 V encoder supply — 24 V	Yes; L+ (-0.8 V)
24 V encoder supply — Short-circuit protection	Yes
24 V encoder supply — Output current, max.	500 mA; Observe derating

Power loss

Power loss, typ.

1.5 W

Address area

Address space per module — Inputs	26 byte
Address space per module — Outputs	32 byte

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	type B

Digital inputs

Number of digital inputs	4
Digital inputs, parameterizable	Yes
Input characteristic curve in accordance with IEC 61131, type 3	Yes
Digital input functions, parameterizable — Digital input with time stamp	Yes
Digital input functions, parameterizable — Digital input with time stamp — Number, max.	4
Digital input functions, parameterizable — Counter	Yes
Digital input functions, parameterizable — Counter — Number, max.	3
Digital input functions, parameterizable — Counter for incremental encoder	Yes
Digital input functions, parameterizable — Counter for incremental encoder — Number, max.	1
Digital input functions, parameterizable — Digital input with oversampling	Yes
Digital input functions, parameterizable — Digital input with oversampling — Number, max.	4
Digital input functions, parameterizable — HW enable for digital input	Yes
Digital input functions, parameterizable — HW enable for digital input — Number, max.	1
Digital input functions, parameterizable — HW enable for digital output	Yes
Digital input functions, parameterizable — HW enable for digital output — Number, max.	3
Input voltage — Type of input voltage	DC
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	-5 ... +5 V
Input voltage — for signal "1"	+11 to +30V
Input voltage — permissible voltage at input, min.	-30 V; -5 V continuous, -30 V brief reverse polarity protection
Input voltage — permissible voltage at input, max.	30 V
Input current — for signal "1", typ.	2.5 mA
Input delay (for rated value of input voltage) — Minimum pulse width for program reactions	3 µs; for parameterization "none"
Input delay (for rated value of input voltage) — for standard inputs — parameterizable	Yes; none / 0.05 / 0.1 / 0.4 / 0.8 ms
Cable length — shielded, max.	1 000 m; Depending on sensor, cable quality and rate of change
Cable length — unshielded, max.	600 m; Depending on sensor, cable quality and rate of change

Digital outputs

Type of digital output	Transistor
Number of digital outputs	6
Current-sinking	Yes; With High Speed output
Current-sourcing	Yes
Digital outputs, parameterizable	Yes
Short-circuit protection	Yes; electronic/thermal
Short-circuit protection — Response threshold, typ.	1.7 A with Standard output, 0.5 A with High Speed output
Limitation of inductive shutdown voltage to	-0.8 V
Digital output functions, parameterizable — Digital output with time stamp	Yes
Digital output functions, parameterizable — Digital output with time stamp — Number, max.	6
Digital output functions, parameterizable — PWM output	Yes
Digital output functions, parameterizable — PWM output — Number, max.	6
Digital output functions, parameterizable — Digital output with oversampling	Yes
Digital output functions, parameterizable — Digital output with oversampling — Number, max.	6
Switching capacity of the outputs — with resistive load, max.	0.5 A; 0.1 A with High Speed output
Switching capacity of the outputs — on lamp load, max.	5 W; 1 W with High Speed output
Load resistance range — lower limit	48 Ω; 240 ohm with High Speed output
Load resistance range — upper limit	12 kΩ
Output voltage — Type of output voltage	DC
Output voltage — for signal "0", max.	1 V; With High Speed output
Output voltage — for signal "1", min.	23.2 V; L+ (-0.8 V)
Output current — for signal "1" rated value	0.5 A; 0.1 A with High Speed output, observe derating
Output current — for signal "1" permissible range, max.	0.6 A; 0.12 A with High Speed output, observe derating
Output current — for signal "1" minimum load current	2 mA
Output current — for signal "0" residual current, max.	0.5 mA
Output delay with resistive load — "0" to "1", max.	1 µs; With High Speed output, 5 µs with Standard output
Output delay with resistive load — "1" to "0", max.	1 µs; With High Speed output, 6 µs with Standard output
Switching frequency — with resistive load, max.	10 kHz
Switching frequency — on lamp load, max.	10 Hz
Total current of the outputs — Current per module, max.	3.5 A; Observe derating
Cable length — shielded, max.	1 000 m; depending on load and cable quality
Cable length — unshielded, max.	600 m; depending on load and cable quality

Encoder

Connectable encoders — Incremental encoder (asymmetrical)	Yes
Connectable encoders — 24 V initiator	Yes
Connectable encoders — 2-wire sensor	Yes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.	1.5 mA
Encoder signals, incremental encoder (asymmetrical) — Input voltage	24 V
Encoder signals, incremental encoder (asymmetrical) — Input frequency, max.	50 kHz
Encoder signals, incremental encoder (asymmetrical) — Counting frequency, max.	200 kHz; with quadruple evaluation
Encoder signals, incremental encoder (asymmetrical) — Cable length, shielded, max.	600 m; Depending on input frequency, encoder and cable quality; max. 200 m at 50 kHz
Encoder signals, incremental encoder (asymmetrical) — Incremental encoder with A/B tracks, 90° phase offset	Yes
Encoder signals, incremental encoder (asymmetrical) — pulse encoder	Yes
Interface types — Input characteristic curve in accordance with IEC 61131, type 3	Yes

Interfaces

Number of RS 485 interfaces

Isochronous mode

Bus cycle time (TDP), min.	375 µs
Jitter, max.	1 µs

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Short-circuit	Yes
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Integrated Functions

Counter	Yes
Counter — Number of counters	3
Counter — Counting frequency, max.	200 kHz; with quadruple evaluation
Counting functions — Continuous counting	Yes

Potential separation

Potential separation channels — between the channels and backplane bus

Yes

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functions

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C; = Tmin (incl. condensation/frost)
Ambient temperature during operation — horizontal installation, max.	60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) or configured slots to the left and right of the module
Ambient temperature during operation — vertical installation, min.	-40 °C; = Tmin
Ambient temperature during operation — vertical installation, max.	50 °C; = Tmax; see Derating BasedOn (e.g. manual)
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max.	100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation
Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants	Yes; Incl. diesel and oil droplets in the air
Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3	Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3	Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3	Yes; Class 3S4 incl. sand, dust, *
Resistance — Use in stationary industrial systems — Against mechanical environmental conditions acc. to EN 60721-3-3	Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6	Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6	Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6	Yes; Class 6S3 incl. sand, dust; *
Resistance — Use on ships/at sea — Against mechanical environmental conditions acc. to EN 60721-3-6	Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4	Yes; Class 3 (excluding trichlorethylene)
Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04	Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04	* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086	Yes; Class 2 for high reliability
Conformal coating — Protection against fouling acc. to EN 60664-3	Yes; Type 1 protection
Conformal coating — Military testing according to MIL-I-46058C, Amendment 7	Yes; Discoloration of coating possible during service life
Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A	Yes; Conformal coating, Class A

Decentralized operation

to SIMATIC S7-1500

Yes

Dimensions

Width	15 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

45 g
