SIPLUS analog inputs Parts
Compare SIPLUS analog inputs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | based on | Current consumption (rated value) | Power loss, typ. | Address space per module — Address space per module, max. |
|---|---|---|---|---|---|
| 6AG1134-6JD00-2DA1 | AI 4xTC HS | 6ES7134-6JD00-0DA1 | 37 mA | 0.9 W | 16 byte; + 1 byte for QI information |

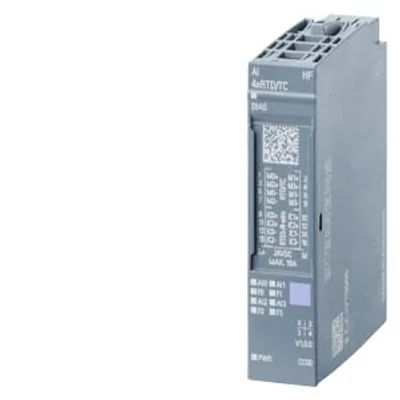

| 6AG1134-6JD00-2CA1 | AI 4xRTD/TC 2-/3-/4-wire HF | 6ES7134-6JD00-0CA1 | 30 mA | 0.75 W | 8 byte; + 1 byte for QI information |

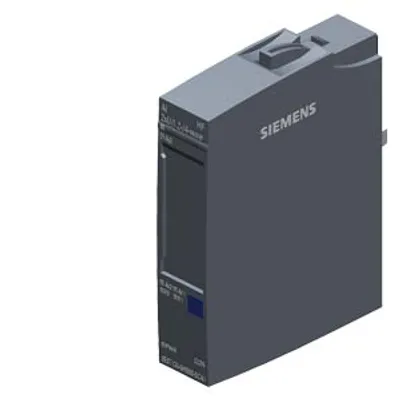

| 6AG1134-6HB00-2CA1 | AI 2xU/I 2-/4-wire HF | 6ES7134-6HB00-0CA1 | 39 mA; without sensor supply | 0.95 W; without sensor supply | 4 byte; + 1 byte for QI information |
Common to all listed parts
| Firmware version — FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | see entry ID: 109746275 |
| Operating mode — Oversampling | No |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | Yes |
| Rated value (DC) | 24 V |
