Schneider Electric NSYSPS5100

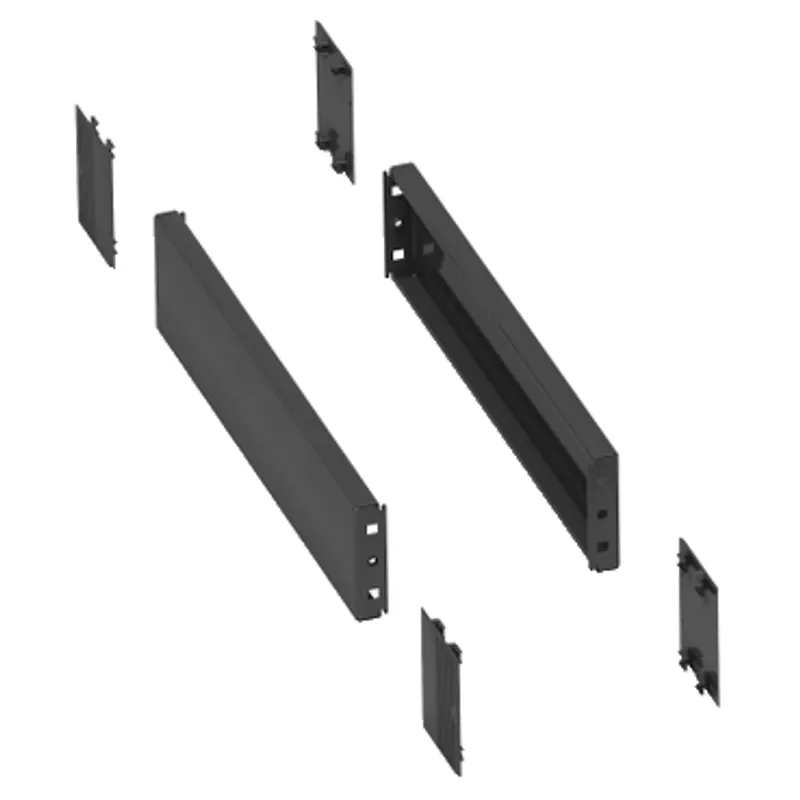

Side panels for the plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure D500mm, set of 2, H100mm
- MPN
- NSYSPS5100
- EAN
- 3606485126623
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPS5100?
Plain side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 500 mm and its height is 100 mm. The set contains 4 corners covers, 2 side and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth side panel |
| Application | Prisma application, Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 2 side panel |
| Range compatibility | PanelSeT SF, PanelSeT SM, Prisma Prisma PH, PanelSeT SFN |
| Mounting support | Front plinth |
| Fixing mode | By screws |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 100 mm |
| Width | Nominal: 500 mm |
| IP degree of protection | IP20 (complete plinth) |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 36.000 cm × 11.500 cm × 6.500 cm (L × W × H), 1.420 kg |
| Package 2 | 325 PAL, 122.000 cm × 100.000 cm × 90.000 cm (L × W × H), 475.000 kg |
