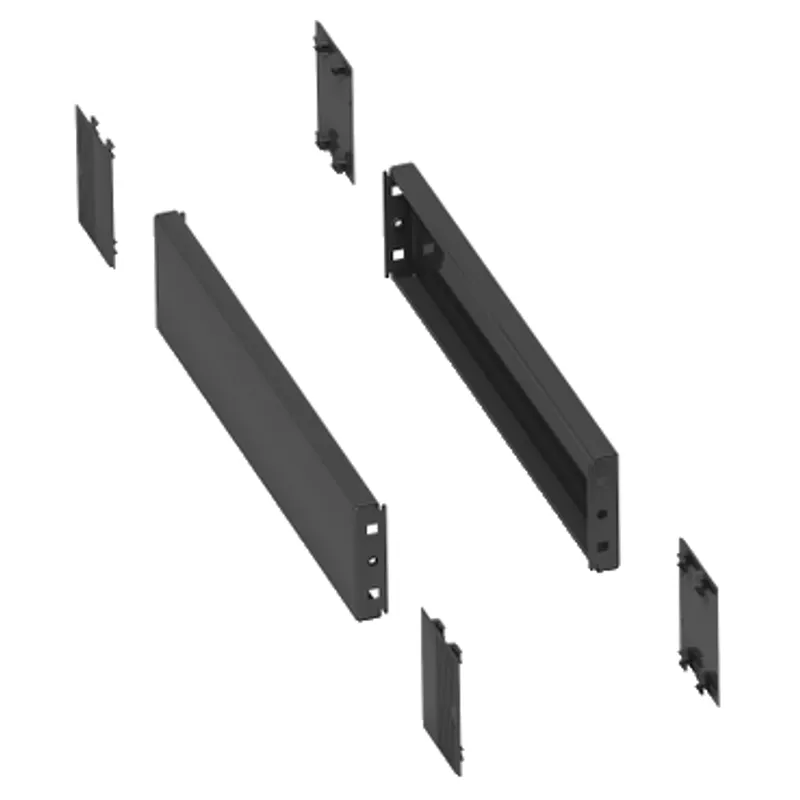

Schneider Electric NSYSPS4100SD
2 side panels for plinth. 400x100mm. Folded sheet steel. RAL 7022. IP 30. IK 10.
- MPN
- NSYSPS4100SD
- EAN
- 3606480163074
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSPS4100SD?
Plinth side panel to be used with PanelSeT SD, PanelSeT S3D and PanelSeT CRN enclosures The plinth side panel is to be used in multi-purpose applications The nominal width is 400mm The height is 100mm The depth is 400mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of grey Material : Steel (RAL 7022) Anti-corrosion protection is ensured by an epoxy-polyester powder coating Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10 (resistance to external mechanical impacts)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth side panel |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 2 side panel |
| Range compatibility | PanelSeT S3D PanelSeT S3D, PanelSeT CRN PanelSeT CRN |
| Mounting support | Front plinth |
| Fixing mode | By screws |
| Material | Sheet steel |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 100 mm |
| Width | Nominal: 400 mm |
| Depth | 400 mm |
| IP degree of protection | IP30 (complete plinth) |
| IK degree of protection | IK10 (resistance to external mechanical impacts) |
Packaging
| Package 1 | 1 PCE, 22.500 cm × 11.500 cm × 6.000 cm (L × W × H), 956.000 g |
| Package 2 | 240 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 243.500 kg |
