Schneider Electric NSYSPS4200SD

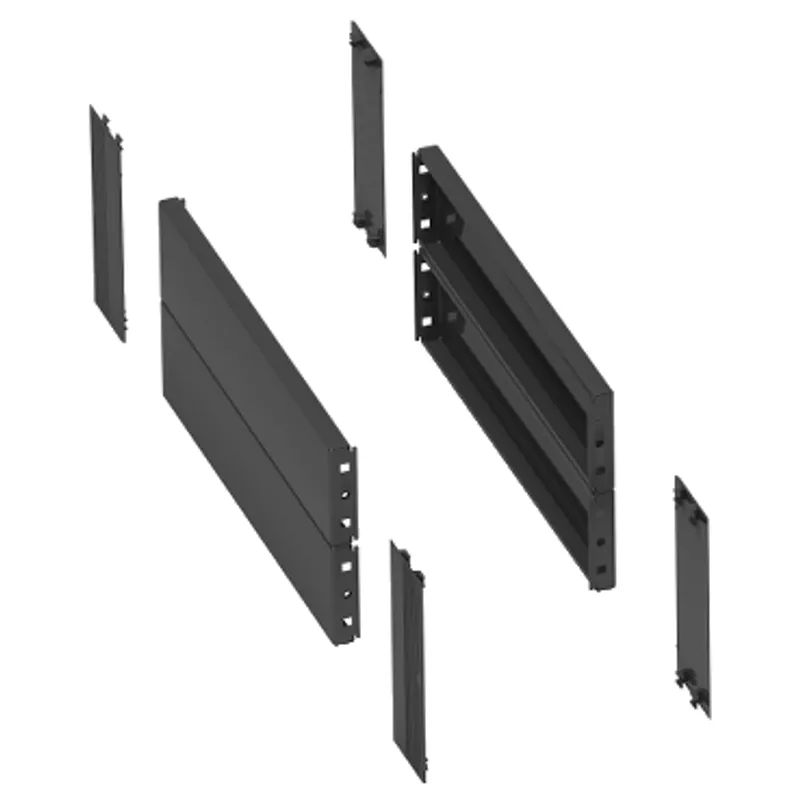

2 side panels for plinth. 400x200mm. Folded sheet steel. RAL 7022. IP 30. IK 10.
- MPN
- NSYSPS4200SD
- EAN
- 3606480163104
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPS4200SD?
Plinth side panel to be used with PanelSeT SD, PanelSeT S3D and PanelSeT CRN enclosures The plinth side panel is to be used in multi-purpose applications The nominal width is 400mm The height is 200mm The depth is 400mm The kit is made of fixing elements, 4 corner covers and 4 side panels The product is made of grey Material : Steel (RAL 7022) Anti-corrosion protection is ensured by an epoxy-polyester powder coating Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10 (resistance to external mechanical impacts)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth side panel |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 4 side panel |
| Range compatibility | PanelSeT S3D PanelSeT S3D, PanelSeT CRN PanelSeT CRN |
| Mounting support | Front plinth |
| Fixing mode | By screws |
| Material | Sheet steel |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 200 mm |
| Width | Nominal: 400 mm |
| Depth | 400 mm |
| IP degree of protection | IP30 (complete plinth) |
| IK degree of protection | IK10 (resistance to external mechanical impacts) |
Packaging
| Package 1 | 1 PCE, 23.000 cm × 22.000 cm × 7.500 cm (L × W × H), 1.846 kg |
| Package 2 | 90 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 179.000 kg |
