Schneider Electric
NSYSPS4200SD2 side panels for plinth. 400x200mm. Folded sheet steel. RAL 7022. IP 30. IK 10.

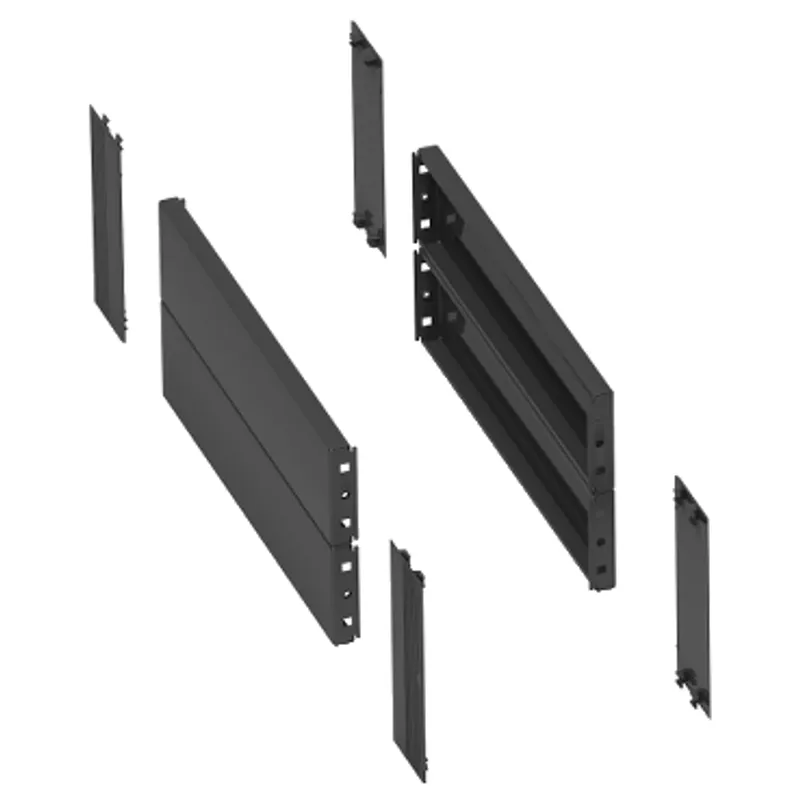

Schneider Electric NSYSPS5200SD
4 side panels for plinth. 500x200mm. Folded sheet steel
- MPN
- NSYSPS5200SD
- EAN
- 3606480163111
- Category
- PanelSet SD
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPS5200SD?
Plinth side panel to be used with PanelSeT SD enclosures The plinth side panel is to be used in multi-purpose applications The width is 500mm The height is 200mm The kit is made of fixing elements, 4 corner covers and 4 side panels The product is made of grey Material : Steel (RAL 7022) Anti-corrosion protection is ensured by an epoxy-polyester powder coating Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10 (resistance to external mechanical impacts)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth side panel |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 4 side panel |
| Range compatibility | PanelSeT PanelSeT SD SD |
| Mounting support | Fixed to the corners |
| Fixing mode | By 2 screws |
| Material | Sheet steel |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 200 mm |
| Width | 500 mm |
| IP degree of protection | IP30 (complete plinth) |
| IK degree of protection | IK10 (resistance to external mechanical impacts) |
Packaging
| Package 1 | 1 PCE, 32.000 cm × 11.500 cm × 6.000 cm (L × W × H), 2.540 kg |
| Package 2 | 60 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 172.400 kg |
