Schneider Electric
NSYSPS4200Side panels for the plinth, PanelSeT SFN, SF, SM, for electrical enclosure W1200mm, set of 4, H200mm

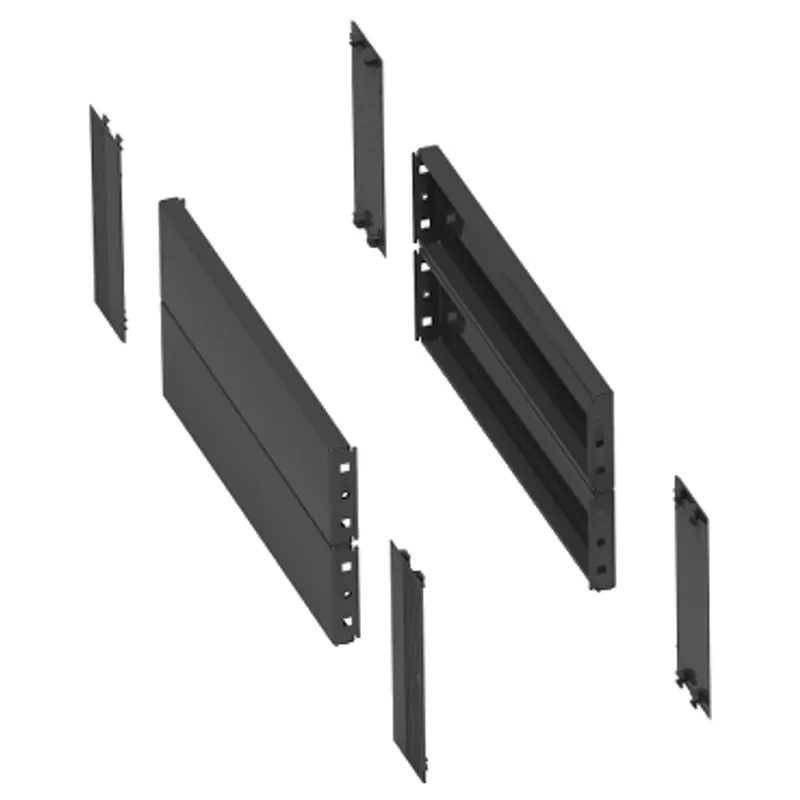

Schneider Electric NSYSPS5200
Side panels for the plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure D500mm, set of 4, H200mm
- MPN
- NSYSPS5200
- EAN
- 3606485126739
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPS5200?
Plain side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 500 mm and its height is 200 mm. The set contains 4 corners covers, 4 side panels and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth side panel |
| Application | Prisma application, Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 4 side panel |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, Prisma Prisma PH, PanelSeT SFN |
| Mounting support | Front plinth |
| Fixing mode | By screws |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 200 mm |
| Width | Nominal: 500 mm |
| IP degree of protection | IP20 (complete plinth) |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 36.000 cm × 22.000 cm × 6.000 cm (L × W × H), 2.926 kg |
| Package 2 | 195 PAM, 120.000 cm × 100.000 cm × 104.000 cm (L × W × H), 583.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSPS5200: frequently asked questions
When can NSYSPS5200 be shipped?
NSYSPS5200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSPS5200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSPS5200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPS5200, subject to availability and destination.
